SC, RJ-45, 10/100Base-TX/FX, 94.5x73x27 mm

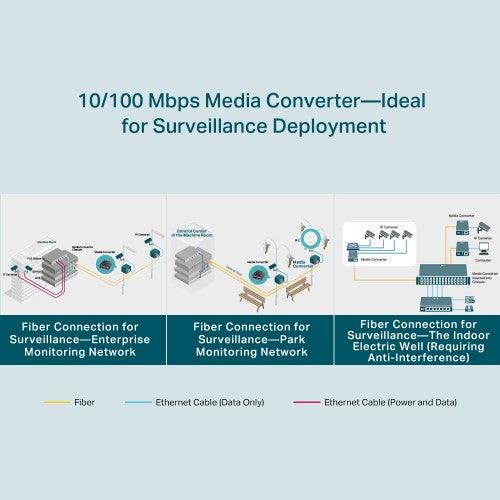

TL-FC111B-20 is a 100M media converter, providing a 100M RJ-45 port and a 100M SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.
How This Product Works

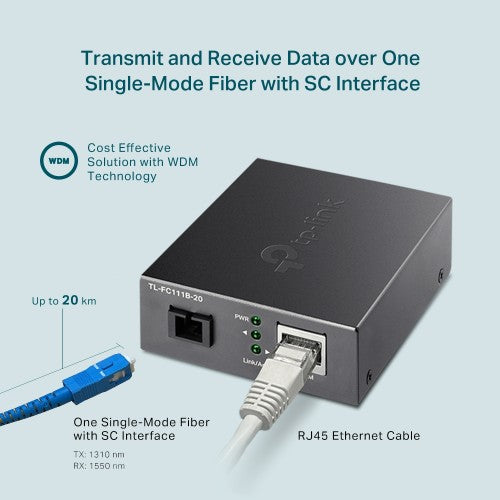

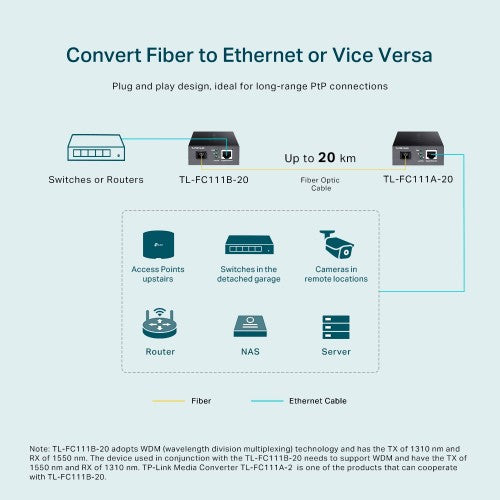

TL-FC111B-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20km (12.4 miles) over only one fiber, which saves half of the cable deployment cost for customers. TL-FC111B-20 transmits data at 1310nm wavelength and receives data at 1550nm wavelength on optical fiber. The TL-FC111A-20 works in the other end as a pair by receiving data at a wavelength 1310nm and sending data at wavelength 1550nm.
Other Features
Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link’s TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.
TP-Link

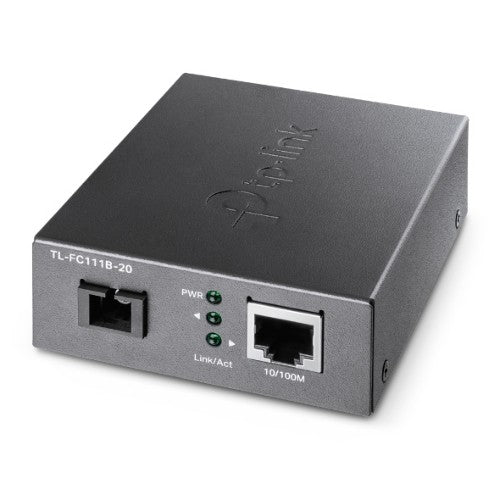

TP-Link TL-FC111B-20 network media converter 100 Mbit/s Single-mode Black
Part number:
TL-FC111B-20
$15.54
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features

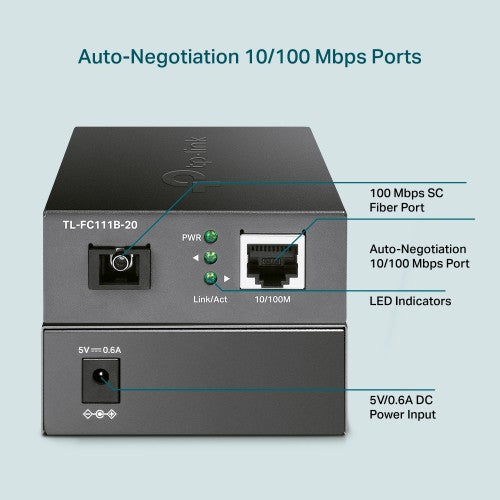

- Complies with 802.3u 10/100Base-TX, 100Base-FX standards
- Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
- Adopts WDM technology, transmitting and receiving data on one single fiber
- Extends fiber distance up to 20km
Description
What This Product DoesTL-FC111B-20 is a 100M media converter, providing a 100M RJ-45 port and a 100M SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.
How This Product Works
TL-FC111B-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20km (12.4 miles) over only one fiber, which saves half of the cable deployment cost for customers. TL-FC111B-20 transmits data at 1310nm wavelength and receives data at 1550nm wavelength on optical fiber. The TL-FC111A-20 works in the other end as a pair by receiving data at a wavelength 1310nm and sending data at wavelength 1550nm.
Other Features
Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link’s TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.
Specifications
| Network | |
|---|---|
| Data transfer rate | 100 Mbit/s |
| Flow control support | Yes |
| Auto-negotiation | Yes |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T |
| Fiber ethernet cabling technology | 100BASE-FX |
| Networking standards | IEEE 802.3, IEEE 802.3i, IEEE 802.3x |
| Duplex system | Full, Half |
| Auto MDI/MDI-X | Yes |
| Maximum data transfer rate | 100 Mbit/s |
| Fiber optic connector | SC |
| Performance | |
| Maximum transfer distance | 787401.6" (20000 m) |
| Fiber mode structure | Single-mode |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Flow control support | Yes |
| Auto-negotiation | Yes |
| Features | |
| LED indicators | Activity, Link, Power |
| Product colour | Black |
| Internal | No |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
| Power | |
| Output voltage | 5 V |
| Output current | 0.6 A |
| External power adapter | Yes |
| Weight & dimensions | |

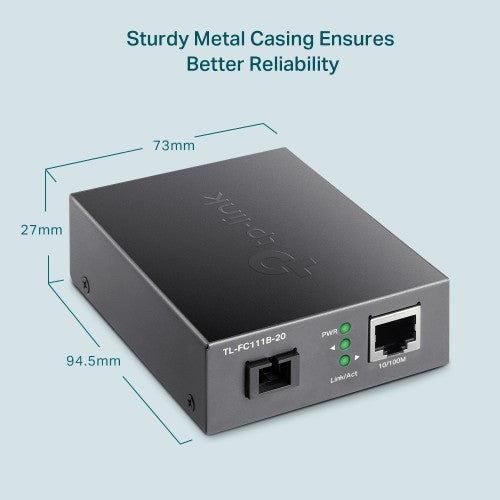

| Width | 3.72" (94.5 mm) |
| Depth | 2.87" (73 mm) |
| Height | 1.06" (27 mm) |
| Package depth | 8.03" (204 mm) |
| Package width | 6.5" (165 mm) |
| Package height | 2.56" (65 mm) |
| Package weight | 12.7 oz (360 g) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Packaging data | |
| Package depth | 8.03" (204 mm) |
| Package width | 6.5" (165 mm) |
| Package height | 2.56" (65 mm) |
| Package weight | 12.7 oz (360 g) |
| Technical details | |
| Maximum transfer distance | 787401.6" (20000 m) |
| Fiber mode structure | Single-mode |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Internal | No |
| Data transfer rate | 100 Mbit/s |
| Harmonized System (HS) code | 85176990 |
| Compliance certificates | RoHS |
| Indication | |
| LED indicators | Activity, Link, Power |
| Design | |
| LED indicators | Activity, Link, Power |
| Product colour | Black |
| Certification | FCC, CE |
| Internal | No |
| Colour | |
| Product colour | Black |
| Certificates | |
| Certification | FCC, CE |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
