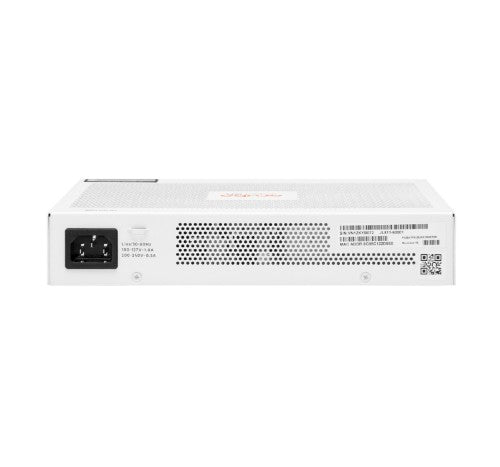

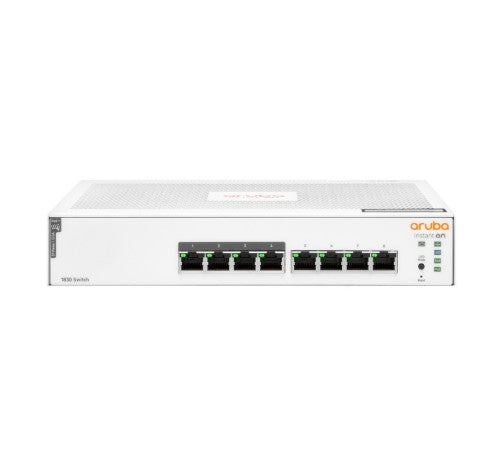

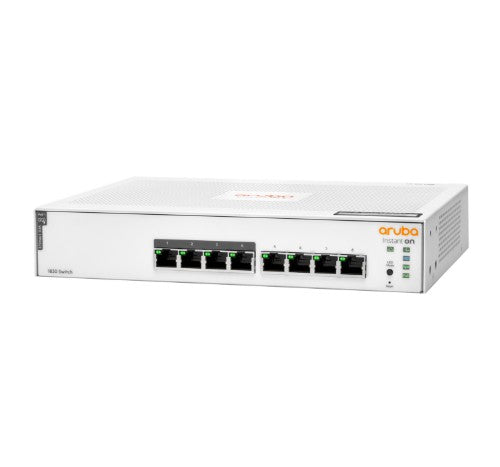

HPE Aruba Networking Aruba Instant On 1830 8G 4p Class4 PoE 65W, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U

Description

HPE Aruba Networking Aruba Instant On 1830 8G 4p Class4 PoE 65W. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Specifications

Management features
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Switch layer	L2
Cloud-managed	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Network
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Full duplex	Yes
VLAN support	Yes
Spanning tree protocol	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
IGMP snooping	Yes
Data transmission
Throughput	11.9 Mpps
Latency (10-100 Mbps)	5.2 µs
Latency (1 Gbps)	2.8 µs
Packet buffer memory	1.5 MB
MAC address table	8000 entries
Switching capacity	16 Gbit/s
Jumbo frames support	Yes
Security
SSH/SSL support	Yes
IGMP snooping	Yes
DHCP features	DHCP client
Design
Form factor	1U
Rack mounting	Yes
Performance
Processor frequency	800 MHz
Memory type	SDRAM
Internal memory	512 MB
Flash memory	256 MB
Built-in processor	Yes
Processor model	ARM Cortex-A9
Packet buffer memory	1.5 MB
Auto-negotiation	Yes
Power
Power consumption (max)	83.67 W
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power source	AC
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget	65 W
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	15 - 95%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	15 - 95%
Virtual LAN features
VLAN support	Yes
Weight & dimensions
Width	7.68" (195.1 mm)
Depth	9.65" (245.1 mm)
Height	1.73" (43.9 mm)
Weight	3.4 lbs (1.54 kg)
Technical details
Form factor	1U
Processor frequency	800 MHz
Rack mounting	Yes
Built-in processor	Yes
Memory
Packet buffer memory	1.5 MB
Memory type	SDRAM
Internal memory	512 MB
Flash memory	256 MB
