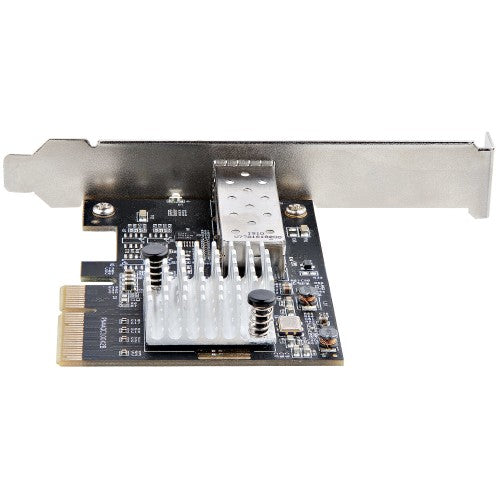

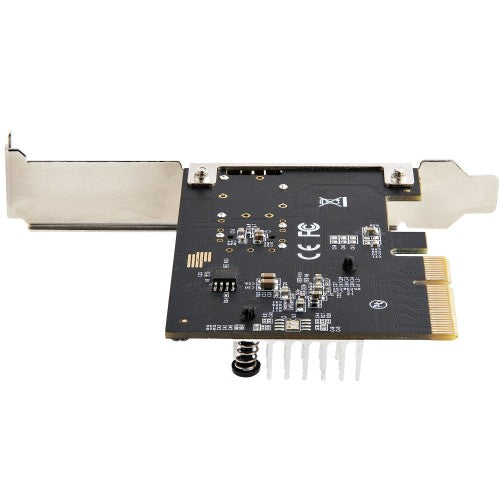

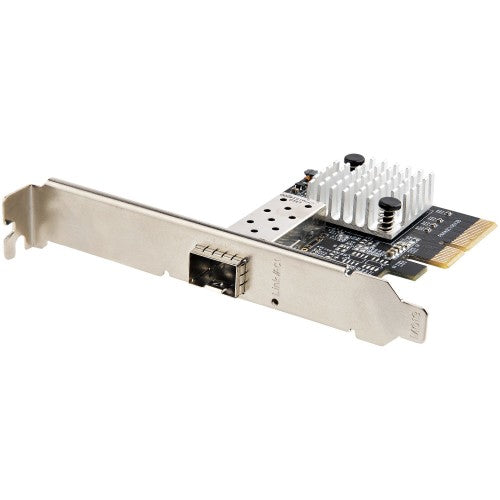

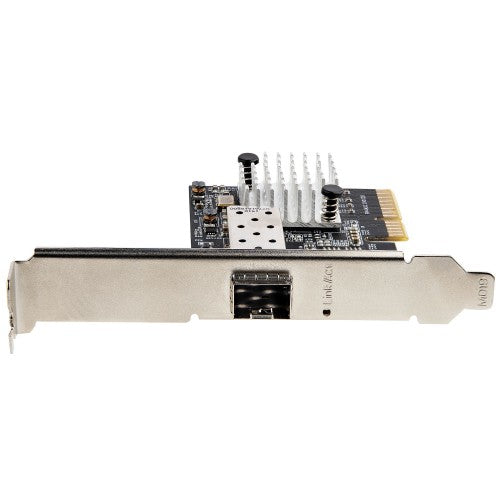

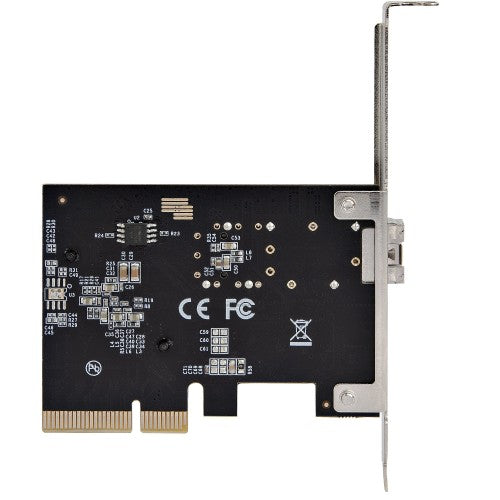

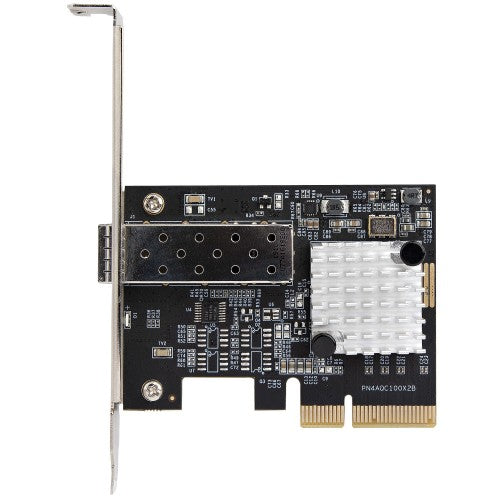

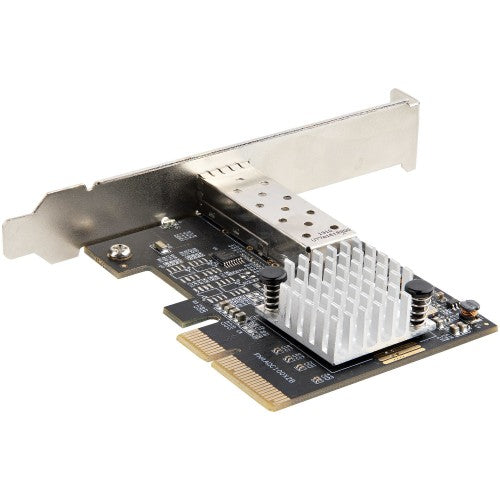

StarTech.com 10G PCIe SFP+ Card - Single SFP+ Port Network Adapter - Open SFP+ for MSA-Compliant Modules/Direct-Attach Cables - 10 Gigabit Fiber PCIe NIC - PCI Express SFP+ Network Card (PEX10GSFP)
Increase your network speed
This PCIe network card lets you take advantage of improved bandwidth in data-intensive applications such as multimedia streaming and large file transfers. This fiber NIC offers data transfer rates of up to 10Gbps which improve speeds and reduces load times.
Scalable network connection
Featuring an open SFP+ slot, you have the flexibility to make changes as needed just by swapping the module in use, whether it is fiber, copper, or direct attach cables (DAC). The card complies with MSA, allowing use with modules from StarTech.com or 3rd parties that support MSA.
Enhance your existing hardware
The 10Gb network card easily connects via an available x4 PCI Express 3.0 expansion slot. The card is shipped with a standard-profile bracket and includes a low-profile bracket for installation in various types of computer chassis. It supports a wide variety of OSes including Windows and Linux.
The PEX10GSFP is backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
StarTech.com
StarTech.com PEX10GSFP network card Internal Fiber 20000 Mbit/s
Part number:
PEX10GSFP
Sale price
$164.46
Regular price
$170.99
Save
$6.53
4%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- MAXIMUM THROUGHPUT: Increase your bandwidth up to 10 Gbps with this SFP+ card for enhanced data transfer rate using fiber optic cable; Reduce wait times for large file transfers, content sharing, network storage, or any other high bandwidth application
- WIDE COMPATIBILITY: This PCIe network card has an open SFP+ slot that can accept any MSA-compliant module or direct attach cable (DAC). It is compatible with multimode, single-mode, and copper SFP+ modules. This card is natively supported in Windows 11
- SECURE INTERFACE: For security and privacy reasons a fiber network card is the ideal point-to-point network adapter; Eliminate EMI with a fiber connection and cover longer distances with fiber to host
- SPECIFICATIONS: 10Gbps open slot SFP+ port / MMF, SMF, and Copper Support / 9K Jumbo Frames / IEEE 802.3ad Link Aggregation / IEEE 802.1Q VLAN tagging / PCIe 3.0 x4 / MSA Compliant / Full Duplex / Low Profile Bracket included / Windows, macOS and Linux
- STARTECH.COM ADVANTAGE: IT professionals' choice for over 30 years, this PCIe 10Gb open slot SFP+ card is backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance
Description
PCI Express SFP+ Card | 10 Gbps | Open SFP+ Slot | Fiber, Copper & DAC | PCIe 3.0 x4Increase your network speed
This PCIe network card lets you take advantage of improved bandwidth in data-intensive applications such as multimedia streaming and large file transfers. This fiber NIC offers data transfer rates of up to 10Gbps which improve speeds and reduces load times.
Scalable network connection
Featuring an open SFP+ slot, you have the flexibility to make changes as needed just by swapping the module in use, whether it is fiber, copper, or direct attach cables (DAC). The card complies with MSA, allowing use with modules from StarTech.com or 3rd parties that support MSA.
Enhance your existing hardware
The 10Gb network card easily connects via an available x4 PCI Express 3.0 expansion slot. The card is shipped with a standard-profile bracket and includes a low-profile bracket for installation in various types of computer chassis. It supports a wide variety of OSes including Windows and Linux.
The PEX10GSFP is backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| PCI version | 3.0 |
| Fiber optic connector | SFP+ |
| Interface | Fiber |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Bandwidth | |
| Full duplex | Yes |
| Maximum data transfer rate | 20000 Mbit/s |
| Network | |
| Chipset | Aquantia AQC100S |
| VLAN tagging | Yes |
| Jumbo frames | 9000 |
| Networking standards | IEEE 802.1Q, IEEE 802.3ad, IEEE 802.3x |
| Jumbo frames support | Yes |
| Full duplex | Yes |
| Maximum data transfer rate | 20000 Mbit/s |
| Fiber mode structure | Multi-mode, Single-mode |
| Flow control support | Yes |
| Technical details | |
| Product colour | Black |
| Harmonized System (HS) code | 85176990 |
| Compliance certificates | CE, RoHS |
| Design | |
| Product colour | Black |
| Chipset | Aquantia AQC100S |
| Internal | Yes |
| Component for | PC |
| Software | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| System requirements | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Weight & dimensions | |
| Width | 0.709" (18 mm) |
| Depth | 3.7" (94 mm) |
| Height | 4.76" (121 mm) |
| Weight | 1.94 oz (55 g) |
| Package width | 8.27" (210 mm) |
| Package depth | 5.71" (145 mm) |
| Package height | 1.38" (35 mm) |
| Package weight | 5.11 oz (145 g) |
| Packaging data | |
| Package width | 8.27" (210 mm) |
| Package depth | 5.71" (145 mm) |
| Package height | 1.38" (35 mm) |
| Package weight | 5.11 oz (145 g) |
| Mounting brackets included | Yes |
| Quick installation guide | Yes |
| Packaging content | |
| Mounting brackets included | Yes |
| Quick installation guide | Yes |
| Performance | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Other features | |
| Chipset | Aquantia AQC100S |
| Jumbo frames | 9000 |
| Flow control support | Yes |
| Harmonized System (HS) code | 85176990 |
| Logistics data | |
| Master (outer) case width | 12.2" (310 mm) |
| Master (outer) case length | 14" (355 mm) |
| Master (outer) case height | 9.25" (235 mm) |
| Products per master (outer) case | 20 pc(s) |
| Harmonized System (HS) code | 85176990 |
