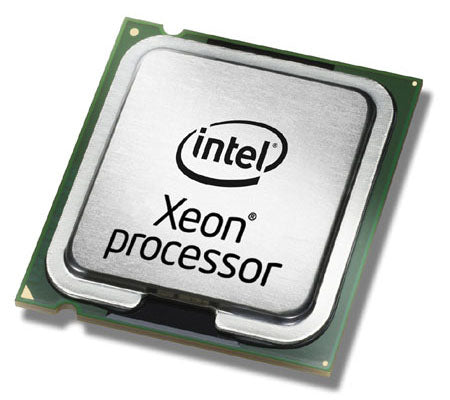

Xeon Processor E5-2680 v4 (35M Cache, 2.40 GHz)
Performance
Built on 14 nm process technology, the Intel® Xeon® processor E5 v4 family offers up to 22 cores/44 threads per socket and 55 MB last-level cache (LLC) per socket for increased performance, as well as Intel® Transactional Synchronization Extensions (Intel® TSX) for increased parallel workload performance.
Optimized for Orchestration
Dynamically manage shared resources efficiently and increase resource utilization with Intel® Resource Director Technology (Intel® RDT) offering cache monitoring and allocation technology, code and data prioritization, and memory bandwidth monitoring.
Enhanced Security
Accelerated cryptographic performance enables encrypted data to move fast over secure connections, plus improved security keys help safeguard network access and deepen platform protection.
Cisco
Cisco Xeon E5-2680 v4 (35M Cache, 2.40 GHz) processor 2.4 GHz 35 MB Smart Cache
Part number:
UCS-CPU-E52680E=
Sale price
$2,584.82
Regular price
$5,522.00
Save
$2,937.18
53%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
The powerful new Intel® Xeon® processor E5-2600 v4 product family offers versatility across diverse workloads. These processors are designed for architecting next-generation data centers running on, software defined infrastructure supercharged for efficiency, performance, and agile services delivery across cloud-native and traditional applications. They support workloads for cloud, high-performance computing, networking, and storage.Performance
Built on 14 nm process technology, the Intel® Xeon® processor E5 v4 family offers up to 22 cores/44 threads per socket and 55 MB last-level cache (LLC) per socket for increased performance, as well as Intel® Transactional Synchronization Extensions (Intel® TSX) for increased parallel workload performance.
Optimized for Orchestration
Dynamically manage shared resources efficiently and increase resource utilization with Intel® Resource Director Technology (Intel® RDT) offering cache monitoring and allocation technology, code and data prioritization, and memory bandwidth monitoring.
Enhanced Security
Accelerated cryptographic performance enables encrypted data to move fast over secure connections, plus improved security keys help safeguard network access and deepen platform protection.
Specifications
| Processor | |
|---|---|
| Processor base frequency | 2.4 GHz |
| Processor codename | Broadwell |
| Memory bandwidth supported by processor (max) | 76.8 GB/s |
| Thermal Design Power (TDP) | 120 W |
| Processor cache | 35 MB |
| Processor ARK ID | 91754 |
| Processor model | E5-2680V4 |
| Processor threads | 28 |
| System bus rate | 9.6 GT/s |
| Processor operating modes | 64-bit |
| VID Voltage Range | 0 - 0 V |
| Processor boost frequency | 3.3 GHz |
| Stepping | M0 |
| Number of QPI links | 2 |
| Bus type | QPI |
| Component for | Server/workstation |
| Processor lithography | 14 nm |
| Processor family | Intel® Xeon® E5 v4 |
| Processor cores | 14 |
| Processor socket | LGA 2011-v3 |
| Processor code | SR2N7 |
| Processor series | Intel Xeon E5-2600 v4 |
| Processor cache type | Smart Cache |
| Memory | |
| Maximum internal memory supported by processor | 1.54 TB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 1600,1866,2133,2400 MHz |
| Memory bandwidth supported by processor (max) | 76.8 GB/s |
| Memory channels | Quad-channel |
| ECC | Yes |
| Power | |
| Thermal Design Power (TDP) | 120 W |
| VID Voltage Range | 0 - 0 V |
| Technical details | |
| Intel TSX-NI | Yes |
| Intel® Secure Key | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Trusted Execution Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel Flex Memory Access | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| PCI Express slots version | 3.0 |
| Supported instruction sets | AVX 2.0 |
| Scalability | 2S |
| Physical Address Extension (PAE) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Demand Based Switching | Yes |
| Embedded options available | Yes |
| CPU configuration (max) | 2 |
| Processor code | SR2N7 |
| Product type | 4 |
| Processor cache | 35840 KB |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel 64 | Yes |
| Thermal Design Power (TDP) | 120 W |
| Status | Launched |
| Processor series | Intel Xeon E5-2600 v4 |
| Physical Address Extension (PAE) | 46 bit |
| Market segment | Server |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor cache type | Smart Cache |
| Product family | Intel Xeon Processor E5 v4 Family |
| Features | |
| Maximum number of PCI Express lanes | 40 |
| Thermal Design Power (TDP) | 120 W |
| Processor package size | 52.5 x 51 mm |
| Processor ARK ID | 91754 |
| Thermal Monitoring Technologies | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| PCI Express slots version | 3.0 |
| Supported instruction sets | AVX 2.0 |
| Scalability | 2S |
| Physical Address Extension (PAE) | Yes |
| Embedded options available | Yes |
| CPU configuration (max) | 2 |
| Processor code | SR2N7 |
| Physical Address Extension (PAE) | 46 bit |
| Market segment | Server |
| Processor special features | |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel 64 | Yes |
| Conflict-Free processor | Yes |
| Intel® OS Guard | Yes |
| Intel TSX-NI | Yes |
| Intel® Secure Key | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Trusted Execution Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel Flex Memory Access | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Demand Based Switching | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel® vPro™ Platform Eligibility | Yes |
| Operational conditions | |
| Tcase | 86 °C |
| Weight & dimensions | |
| Processor package size | 52.5 x 51 mm |
| Other features | |
| Maximum internal memory | 1572864 MB |
| CPU configuration (max) | 2 |
| Compatibility | Intel Server System R1208WT2GSR Intel Server System R1208WTTGSR Intel Server System R1304WT2GSR Intel Server System R1304WTTGSR Intel Server System R2208WTTYSR Intel Server System R2208WT2YSR Intel Server System R2208WTTYC1R Intel Server System R2308WTTYSR Intel Server System R2312WTTYSR Intel Server System R2224WTTYSR Intel Server System VRN2208WAF6 Intel Server System VRN2208WAF8 Intel Server System VRN2208WHY8 Intel Server System VRN2224THY6 Intel Server Board S2600CW2R Intel Server Board S2600CW2SR Intel Server Board S2600CWTR Intel Server Board S2600CWTSR Intel Server Board S2600KPR Intel Server Board S2600KPFR Intel Server Board S2600KPTR Intel Server Board S2600TPR Intel Server Board S2600TPFR Intel Server Board S2600WTTR Intel Server Board S2600WT2R Intel Server Board S2600WTTS1R Intel Compute Module HNS2600KPFR Intel Compute Module HNS2600KPR Intel Compute Module HNS2600TP24R Intel Compute Module HNS2600TPFR Intel Compute Module HNS2600TPR Intel Compute Module HNS2600TP24SR |
| Processor code | SR2N7 |
