AX1800 Dual Band WiFi 6 PoE+ Access Point
Trendnet

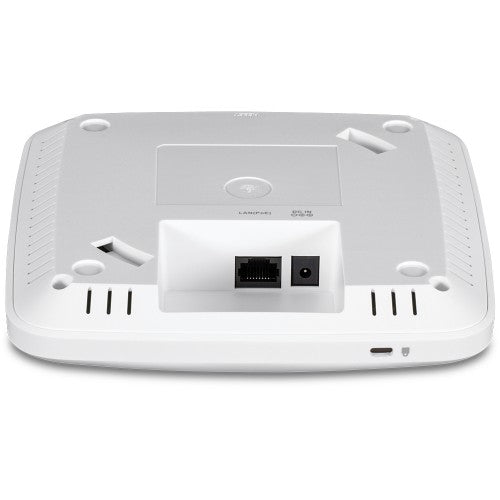

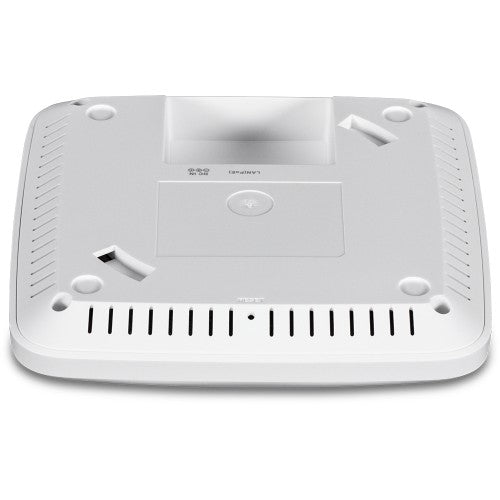

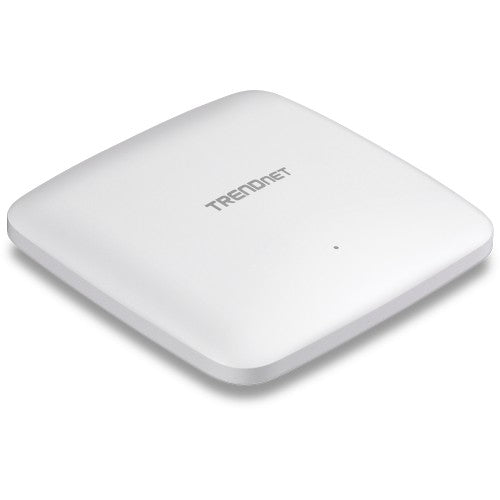

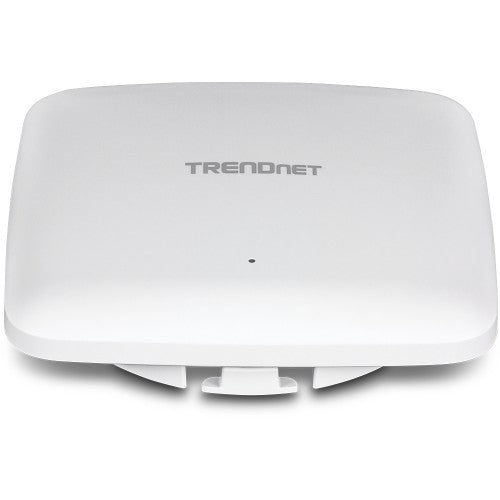

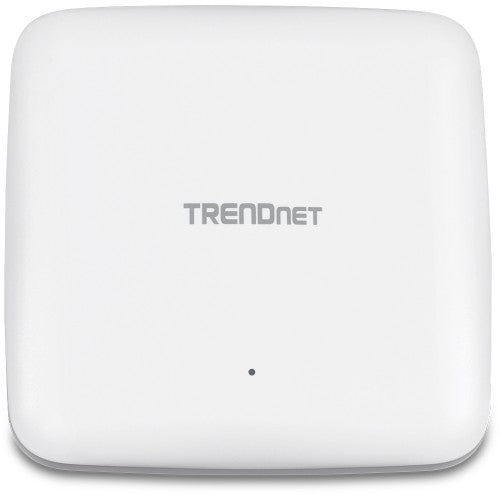

Trendnet TEW-921DAP wireless access point 567 Mbit/s White Power over Ethernet (PoE)
Part number:
TEW-921DAP
Sale price
$113.10
Regular price
$137.65
Save
$24.55
18%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Captive portal for hotspot applications

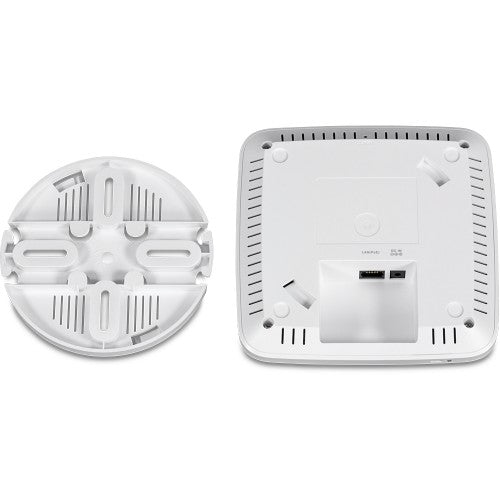

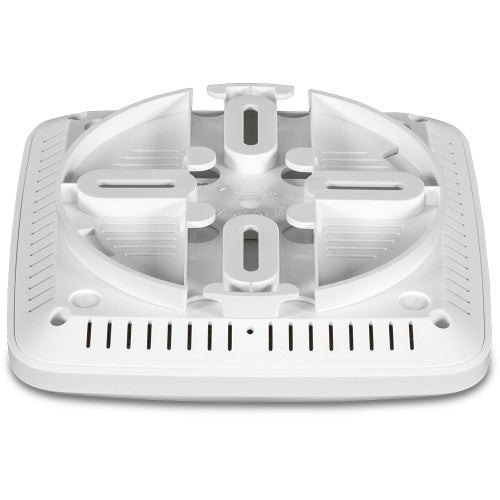

- Includes wall / ceiling mounting plate
- Low-profile housing blends into most environments
Description
TRENDnet’s high-performance AX1800 Dual Band WiFi 6 PoE+ Access Point, model TEW-921DAP, features two concurrent WiFi bands to maximize device networking speeds with the latest WiFi 6 technology. The two separate high-speed WiFi 6 bands provide speeds up to 1201Mbps on the 5GHz band, and 567Mbps on the 2.4GHz band. Faster speeds are possible on this WiFi 6 access point with 1024-QAM, OFDMA, and MU-MIMO technologies.Specifications
| Data transmission | |
|---|---|
| Maximum data transfer rate | 567 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Auto Wireless Distribution System (WDS) | Yes |
| Reset button | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11u, IEEE 802.11v, IEEE 802.11w, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3x |
| Channels quantity | 13 channels |
| Maximum data transfer rate | 567 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Wireless LAN features | |
| Channels quantity | 13 channels |
| Network | |
| Networking standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11u, IEEE 802.11v, IEEE 802.11w, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3x |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11u, IEEE 802.11v, IEEE 802.11w, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3x |
| Channels quantity | 13 channels |
| Maximum data transfer rate | 567 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Security | |
| Auto Wireless Distribution System (WDS) | Yes |
| Security algorithms | WEP, WPA, WPA2 |
| Protocols | |
| IPv4 & IPv6 features | IPv6 ping |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Output voltage | 12 V |
| Output current | 1.5 A |
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Design | |
| Placement | Ceiling, Wall |
| Product colour | White |
| Reset button | Yes |
| Antenna | |
| Antenna type | Internal |
| Antenna gain level (max) | 4.3 dBi |
| Technical details | |
| Reset button | Yes |
| Harmonized System (HS) code | 85176990 |
| Weight & dimensions | |
| Width | 6.3" (160 mm) |
| Depth | 6.3" (160 mm) |
| Weight | 17.1 oz (486 g) |
| Height | 1.34" (34 mm) |
| Packaging data | |
| Mounting kit | Yes |
| Packaging content | |
| Mounting kit | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
