Archer A54, AC1200, Wireless, Dual Band, 4 External Antennas, Access Point Support, Range Extender Mode
The Archer A54 lets your PC or laptop enjoy connections 3x faster than Wireless N with Wireless AC technology. With 300Mbps over the 2.4GHz band and 867Mbps over the the crystal clear 5GHz band, the Archer A54 is the superior choice for seamless HD streaming, online gaming and other bandwidth-intensive tasks.
1. Router Mode
Connect to the Ethernet to instantly create a private wireless network and share internet access to all your Wi-Fi devices.
2. Access Point Mode
Transform your existing wired network to a wireless one.
3. Range Extender Mode
Boost the existing wireless coverage in your room.
4 Antennas & Beamforming for Maximum Coverage
Equipped with four external antennas, Archer A54 creates stronger and more reliable networks for all to enjoy in your home. Beamforming technology concentrates the Wi-Fi signal towards your connected devices, providing better Wi-Fi range and network performance.
Easy Parental Control
Supervise children and staff with responsible access, controlled by parents or administrators. Use key words to easily set up a black list and limit the level of web access.
Guest Network Access
Allow guests to join your Wi-Fi network while protecting your privacy. Make sharing easy, maintain security. Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. Easily share your facebook account to anyone who connects to your network.
Connect More Devices Simultaneously
Archer A54 helps your devices achieve optimal performance by making communication more efficient with MU-MIMO technology. Two simultaneous data streams, allow all connected devices to achieve faster speeds than standard AC routers.
Easy Setup and Use
Set up the Archer A54 in minutes thanks to its intuitive web interface and the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device, including parental controls and access control.
IPv6 Supported
Future-proof your network with IPv6 (Internet Protocol Version 6) support
IPTV
Improve your IPTV streaming experience with IGMP Proxy/Snooping Bridge and Tag VLAN
LED Control
Easily schedule the LED on or off to your needs, no blinking light disturbing your sleep
Tether APP
Tether APP lets you manage your network settings easily from any Android or iOS device
TP-Link

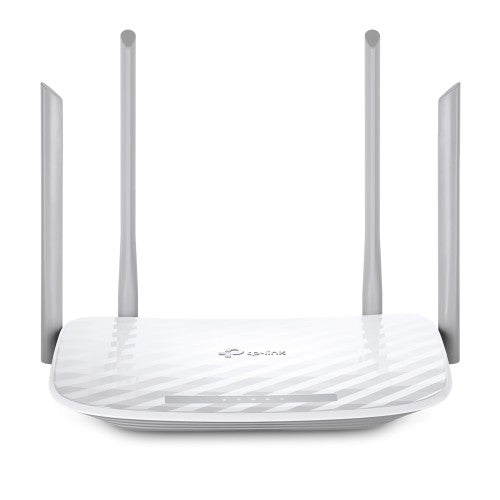

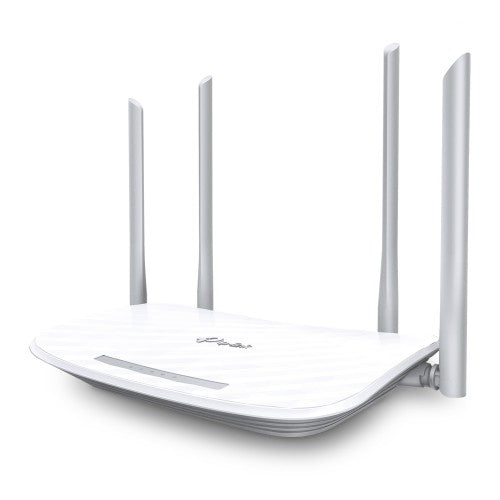

TP-Link Archer A54 wireless router Fast Ethernet Dual-band (2.4 GHz / 5 GHz) White
Part number:
ARCHER A54
$36.36
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Support smooth 4K streaming with AC1200 Wi-Fi
- 4 external antennas provide stable wireless connections and optimal coverage
- Easy network management at your fingertips with TP-Link Tether
- Supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming
- Supports Access Point mode to create a new Wi-Fi access point
Description
High-Speed Dual Band Wi-Fi for Better ConnectionsThe Archer A54 lets your PC or laptop enjoy connections 3x faster than Wireless N with Wireless AC technology. With 300Mbps over the 2.4GHz band and 867Mbps over the the crystal clear 5GHz band, the Archer A54 is the superior choice for seamless HD streaming, online gaming and other bandwidth-intensive tasks.
1. Router Mode
Connect to the Ethernet to instantly create a private wireless network and share internet access to all your Wi-Fi devices.
2. Access Point Mode
Transform your existing wired network to a wireless one.
3. Range Extender Mode
Boost the existing wireless coverage in your room.
4 Antennas & Beamforming for Maximum Coverage
Equipped with four external antennas, Archer A54 creates stronger and more reliable networks for all to enjoy in your home. Beamforming technology concentrates the Wi-Fi signal towards your connected devices, providing better Wi-Fi range and network performance.
Easy Parental Control
Supervise children and staff with responsible access, controlled by parents or administrators. Use key words to easily set up a black list and limit the level of web access.
Guest Network Access
Allow guests to join your Wi-Fi network while protecting your privacy. Make sharing easy, maintain security. Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. Easily share your facebook account to anyone who connects to your network.
Connect More Devices Simultaneously
Archer A54 helps your devices achieve optimal performance by making communication more efficient with MU-MIMO technology. Two simultaneous data streams, allow all connected devices to achieve faster speeds than standard AC routers.
Easy Setup and Use
Set up the Archer A54 in minutes thanks to its intuitive web interface and the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device, including parental controls and access control.
IPv6 Supported
Future-proof your network with IPv6 (Internet Protocol Version 6) support
IPTV
Improve your IPTV streaming experience with IGMP Proxy/Snooping Bridge and Tag VLAN
LED Control
Easily schedule the LED on or off to your needs, no blinking light disturbing your sleep
Tether APP
Tether APP lets you manage your network settings easily from any Android or iOS device
Specifications
| Ethernet LAN features | |
|---|---|
| Ethernet WAN | Yes |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Cabling technology | 10/100Base-T(X) |
| DSL features | |
| DSL WAN | No |
| Mobile network | |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| 5G | No |
| 3G | No |
| 4G | No |
| Protocols | |
| DMZ support | Yes |
| Universal Plug and Play (UPnP) | Yes |
| DHCP server | Yes |
| DHCP client | Yes |
| Management features | |
| Universal Plug and Play (UPnP) | Yes |
| WPS push button | Yes |
| Web-based management | Yes |
| Reset button | Yes |
| Quality of Service (QoS) support | Yes |
| Performance | |
| Processor cores | 1 |
| Built-in processor | Yes |
| WAN connection | |
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| WAN connection type | RJ-45 |
| Wireless LAN features | |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) | 867 Mbit/s |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| WLAN data transfer rate (first band) | 300 Mbit/s |
| WLAN data transfer rate (second band) | 867 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Network | |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Receiver sensitivity | 5GHz: 11a 54M -73dBm, 11ac VHT20 MCS8 -68dBm, 11ac VHT40 MCS9 -64dBm, 11ac VHT80 MCS9 -60dBm 2.4GHz: 11g 54M -76dBm, 11n HT20 MCS7 -74dBm, 11n HT40 MCS7 -71dBm |
| Port forwarding | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Cabling technology | 10/100Base-T(X) |
| Port triggering | Yes |
| Number of guest networks (5 GHz) | 1 |
| Number of guest networks (2.4 GHz) | 1 |
| Dynamic DNS (DDNS) | Yes |
| Ports & interfaces | |
| USB port | No |

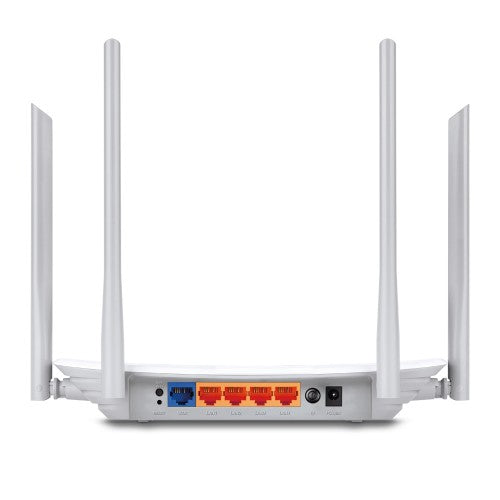

| Ethernet LAN (RJ-45) ports | 4 |
| DC-in jack | Yes |
| Security | |
| URL filtering | Yes |
| Security algorithms | WEP, WPA, WPA2, WPA2-Enterprise |
| Firewall | Yes |
| DMZ support | Yes |
| Parental control | Yes |
| Stateful Packet Inspection (SPI) | Yes |
| Design | |
| Product type | Tabletop router |
| On/off switch | Yes |
| LED indicators | LAN, Power, WLAN |
| Product colour | White |
| Packaging content | |
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Quick installation guide | Yes |
| Antenna | |
| Antenna design | External |
| Detachable antenna(s) | No |
| Antennas quantity | 4 |
| Transmit power | <20dBm(2.4GHz), <23dBm(5GHz) |
| Features | |
| Processor cores | 1 |
| Built-in processor | Yes |
| 4K streaming | Yes |
| Power | |
| Power source type | DC |
| Output voltage | 9 V |
| Output current | 0.85 A |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| System requirements | |
| Browser supported | nternet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled |
| Weight & dimensions | |
| Width | 9.05" (229.9 mm) |
| Height | 1.45" (36.9 mm) |
| Depth | 5.68" (144.2 mm) |
| Packaging data | |
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Quick installation guide | Yes |
| Technical details | |
| Compliance certificates | RoHS |
