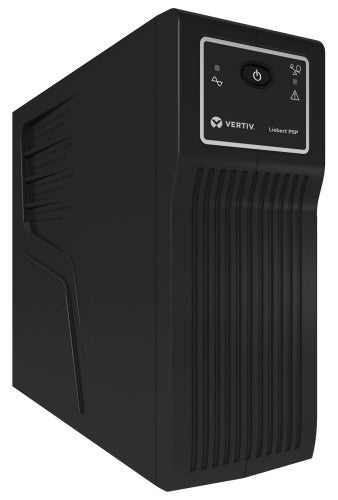

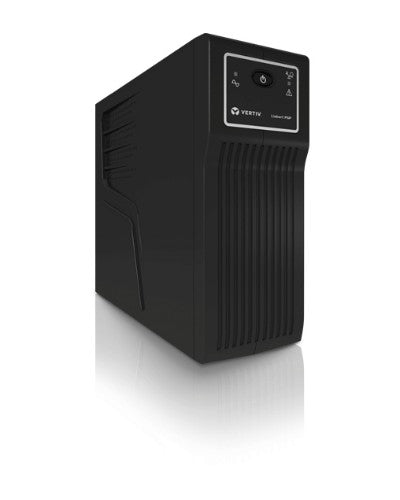

Liebert PSP 500VA (300W) 230V UPS
Vertiv
Vertiv Liebert PSP 500VA (300W) uninterruptible power supply (UPS) Standby (Offline) 0.5 kVA 4 AC outlet(s)
Part number:
PSP500MT3-230U
Sale price
$119.00
Regular price
$170.00
Save
$51.00
30%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Liebert PSP has a compact design ideal for desktop applications
- User friendly LED display to make interaction with UPS easier
- User replaceable batteries to maximize initial investment
- Battery-backed sockets and a surge only socket
- Shutdown software and USB cable included
- Protects datalines
- Fully RoHS Compliant
- 3 years standard wararnty
Description
Liebert PSP 500VA is a full featured UPS that delivers cost-effective power protection in a compact package. The UPS provides battery-backed outlets and a surge protection only outlet. The UPS battery offers four minutes of backup power at full load - ample time to shut down protected equipment if an outage occurs.Specifications
| Power | |
|---|---|
| Output frequency | 50/60 Hz |
| Output power | 300 W |
| Input operation voltage (min) | 160 V |
| Input operation voltage (max) | 287 V |
| Power factor | 0.6 |
| Output power capacity | 0.5 kVA |
| Input frequency | 50/60 Hz |
| Battery | |
| Battery type | VDC x Ah |
| Battery capacity | 7 VAh |
| Number of batteries supported | 1 |
| Battery voltage | 12 V |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 8 h |
| Typical backup time at half load | 11 min |
| Performance | |
| UPS topology | Standby (Offline) |
| Waveform | Stepwise |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Response time | 6 ms |
| Features | |
| Output frequency | 50/60 Hz |
| UPS topology | Standby (Offline) |
| Waveform | Stepwise |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Response time | 6 ms |
| Output power | 300 W |
| Input operation voltage (min) | 160 V |
| Input operation voltage (max) | 287 V |
| Power factor | 0.6 |
| Output power capacity | 0.5 kVA |
| Input frequency | 50/60 Hz |
| Ports & interfaces | |
| USB port | Yes |
| AC outlets quantity | 4 AC outlet(s) |
| AC outlet types | IEC 320, C13 coupler |
| Power plug | C14 coupler |
| USB 2.0 ports quantity | 1 |
| Serial ports quantity | 1 |
| Design | |
| International Protection (IP) code | IP20 |
| Form factor | Tower |
| Product colour | Black |
| Safety | IEC/EN/AS 62040-1-1 |
| Cooling type | Passive |
| Certification | CE |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 90% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Technical details | |
| Output frequency | 50/60 Hz |
| Harmonized System (HS) code | 85078000 |
| Compliance certificates | RoHS |
| Certificates | |
| Certification | CE |
| Compliance certificates | RoHS |
| Safety | IEC/EN/AS 62040-1-1 |
| Cooling | |
| Cooling type | Passive |
| Safety regulation & standards | |
| Safety | IEC/EN/AS 62040-1-1 |
| Weight & dimensions | |
| Package width | 5.94" (151 mm) |
| Package depth | 16.5" (419 mm) |
| Package height | 9.88" (251 mm) |
| Weight | 10.6 lbs (4.8 kg) |
| Width | 3.43" (87 mm) |
| Package weight | 23.4 lbs (10.6 kg) |
| Height | 9.88" (251 mm) |
| Depth | 8.46" (215 mm) |
| Packaging data | |
| Package width | 5.94" (151 mm) |
| Package depth | 16.5" (419 mm) |
| Package height | 9.88" (251 mm) |
| Package weight | 23.4 lbs (10.6 kg) |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Other features | |
| Interface | IEC-320-C14 |
| Battery type | VDC x Ah |
| Dimensions (WxDxH) | 3.43 x 8.46 x 9.88" (87 x 215 x 251 mm) |
