5-Port Unmanaged Industrial Ethernet Switch - 10/100 Mbps, Ruggedized, -40° to 75°C, DIN/Wall Mount, TAA
This space-saving switch transmits data over an Ethernet network. Five auto-negotiating 10/100 Mbps ports send data only to the devices designated to receive it, which improves the efficiency and potential throughput of the network.
Ruggedized Metal Housing Built to Last in Harsh Environments
The compact NFI-U05 adds 10/100 Mbps Ethernet capacity to your industrial and commercial applications, such as factory floors, warehouse operations and other environments with space constraints and wide temperature ranges. The industrial-grade high-strength case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from -40 to 75 degrees Celsius (-40 to 167 degrees Fahrenheit).
Unmanaged Switch Requires Little to No Configuration
Quickly connect your network devices with little to no configuration. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity. The NFI-U05 supports MAC address auto-learning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. IEEE 802.3x flow control allows smooth transmission of large files.
Works with the Most Popular Web Browsers
The NFI-U05 is browser-based and works independently from the connected computer's operating system. Because switch compatibility is based on common hardware standards, rather than system software dependencies, the NFI-U05 accommodates most platforms. Preferred web browsers include Google Chrome (on both Windows and macOS) and Microsoft Edge (Windows only).
Flexible Mounting Options

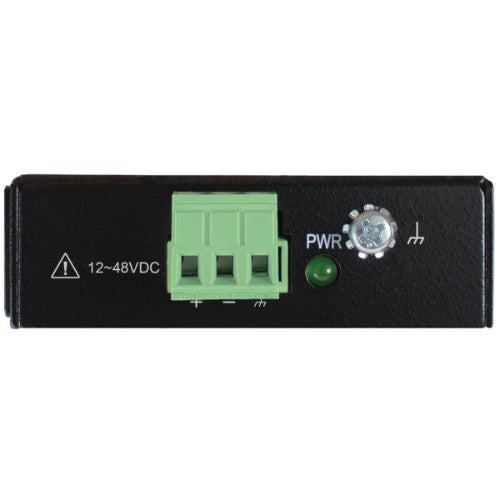

The open-type device may be DIN mounted using the pre-installed rail clip, which mounts firmly to any standard 35 mm DIN rail. It may also be wall mounted using the rear mounting holes. A 3-pin 12–48VDC terminal block supplies power input. Device power must be supplied by SELV circuit.
TAA-Compliant for GSA Schedule Purchases
The NFI-U05 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Tripp Lite

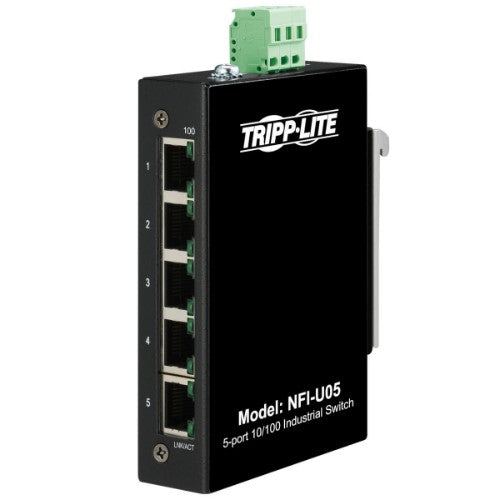

Tripp Lite NFI-U05 network switch Unmanaged Fast Ethernet (10/100) Black
Part number:
NFI-U05
Sale price
$95.79
Regular price
$194.31
Save
$98.52
51%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- 5 auto-negotiable 10/100 Mbps RJ45 ports connect devices over a LAN
- Industrial-grade switch supports operating temperature range of -40° to 75°C
- Easy-to-read LEDs indicate connection and activity status for all 5 Ethernet ports
- Plug-and-play operation with no software or configuration required before use
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Description
5-Port Unmanaged Ethernet Switch Connects Your Devices to a LANThis space-saving switch transmits data over an Ethernet network. Five auto-negotiating 10/100 Mbps ports send data only to the devices designated to receive it, which improves the efficiency and potential throughput of the network.
Ruggedized Metal Housing Built to Last in Harsh Environments
The compact NFI-U05 adds 10/100 Mbps Ethernet capacity to your industrial and commercial applications, such as factory floors, warehouse operations and other environments with space constraints and wide temperature ranges. The industrial-grade high-strength case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from -40 to 75 degrees Celsius (-40 to 167 degrees Fahrenheit).
Unmanaged Switch Requires Little to No Configuration
Quickly connect your network devices with little to no configuration. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity. The NFI-U05 supports MAC address auto-learning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. IEEE 802.3x flow control allows smooth transmission of large files.
Works with the Most Popular Web Browsers
The NFI-U05 is browser-based and works independently from the connected computer's operating system. Because switch compatibility is based on common hardware standards, rather than system software dependencies, the NFI-U05 accommodates most platforms. Preferred web browsers include Google Chrome (on both Windows and macOS) and Microsoft Edge (Windows only).

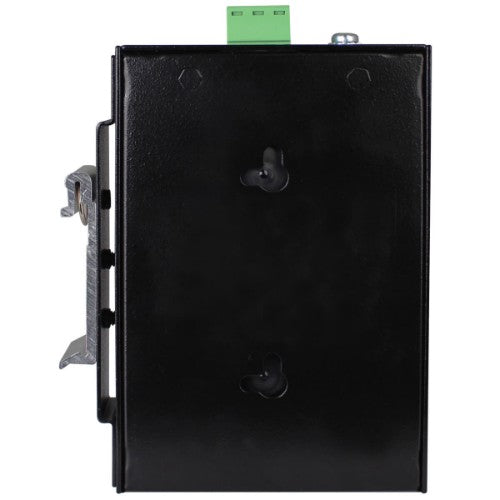

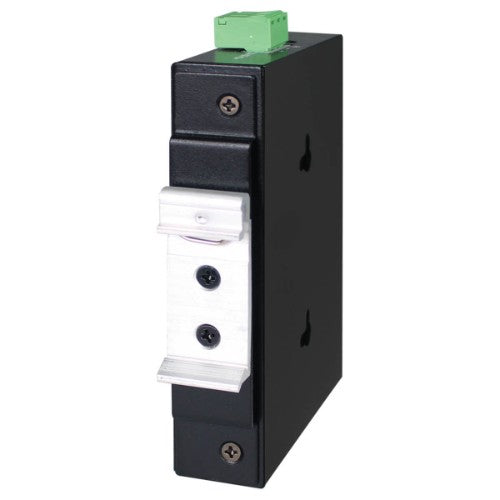

Flexible Mounting Options
The open-type device may be DIN mounted using the pre-installed rail clip, which mounts firmly to any standard 35 mm DIN rail. It may also be wall mounted using the rear mounting holes. A 3-pin 12–48VDC terminal block supplies power input. Device power must be supplied by SELV circuit.
TAA-Compliant for GSA Schedule Purchases
The NFI-U05 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Specifications
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Power connector | Terminal block (3-pin) |
| Network | |
| MAC address auto-learning supported | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Flow control support | Yes |
| Ethernet LAN data rates | 100 Mbit/s |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| Data transmission | |
| Switching capacity | 1 Gbit/s |
| Jumbo frames support | No |
| Design | |
| Wall mountable | Yes |
| DIN rail mounting | Yes |
| Product colour | Black |
| LED indicators | LAN, Link, Power |
| Housing material | Aluminum |
| Rack mounting | No |
| Country of origin | Taiwan |
| Power | |
| Power supply included | No |
| Power consumption (typical) | 3 W |
| Input current | 0.15 A |
| DC input voltage | 12 - 48 V |
| Power connector | Terminal block (3-pin) |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 0.921" (23.4 mm) |
| Depth | 2.91" (73.9 mm) |
| Height | 4.3" (109.2 mm) |
| Weight | 6.7 oz (190 g) |
| Packaging content | |
| Manual | Yes |
| Packaging data | |
| Package width | 5.04" (128 mm) |
| Package depth | 9.33" (237 mm) |
| Package height | 2.44" (62 mm) |
| Package weight | 10.9 oz (310 g) |
| Manual | Yes |
| Sustainability | |
| Sustainability compliance | Yes |
| Performance | |
| Auto-negotiation | Yes |
| Harmonized System (HS) code | 8517.62.0020 |
| Technical details | |
| Product colour | Black |
| Housing material | Aluminum |
| Rack mounting | No |
| Sustainability compliance | Yes |
| Master (outer) case GTIN (EAN/UPC) | 10037332264265 |
| Compliance certificates | CE, REACH, RoHS |
| Certificates | |
| Compliance certificates | CE, REACH, RoHS |
| Indication | |
| LED indicators | LAN, Link, Power |
| Other features | |
| Ethernet LAN data rates | 100 Mbit/s |
| Country of origin | Taiwan |
| Logistics data | |
| Country of origin | Taiwan |
| Master (outer) case width | 10.7" (272 mm) |
| Master (outer) case length | 19.4" (492 mm) |
| Master (outer) case height | 13.5" (342.9 mm) |
| Master (outer) case gross weight | 15.7 lbs (7.14 kg) |
| Products per master (outer) case | 20 pc(s) |
| Harmonized System (HS) code | 8517.62.0020 |
