1 Gbps, PCIe 2.0 x4, SFP
AddOn Networks
AddOn Networks AT-2914SX/LC-001-AO network card Internal Fiber 1000 Mbit/s
Part number:
AT-2914SX/LC-001-AO
Sale price
$142.23
Regular price
$238.00
Save
$95.77
40%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description

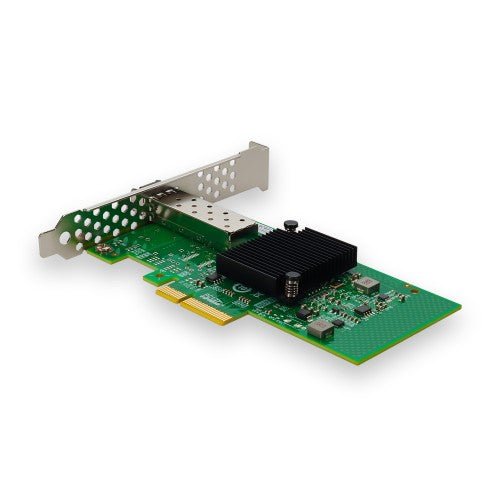

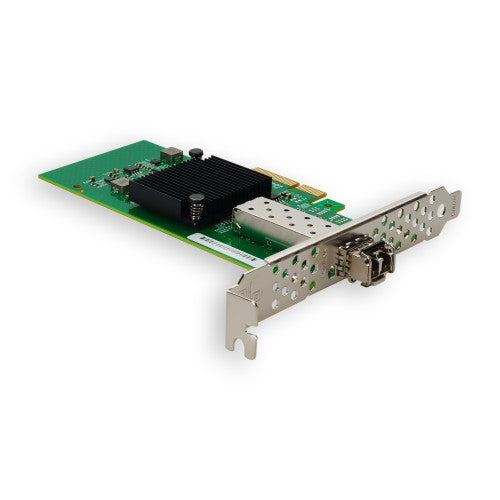

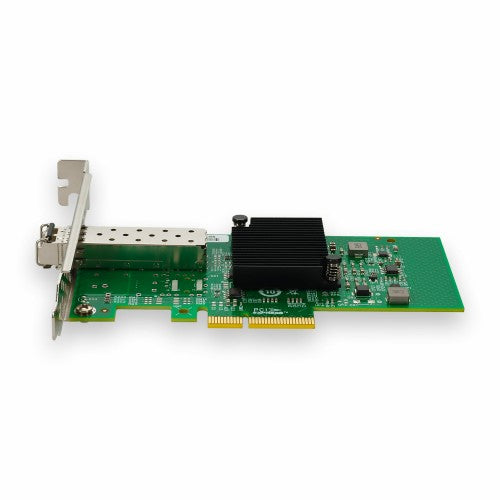

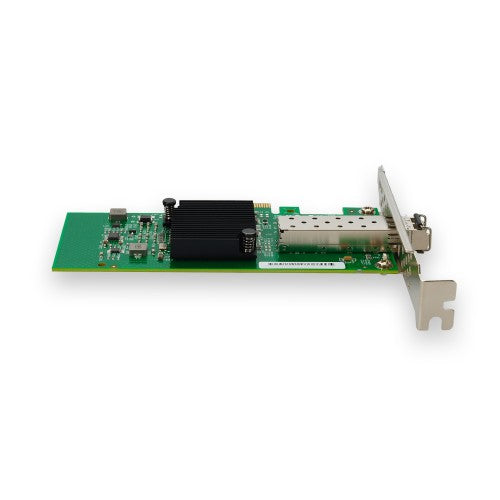

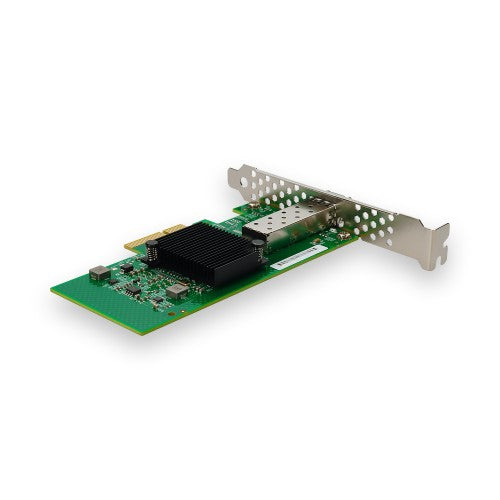

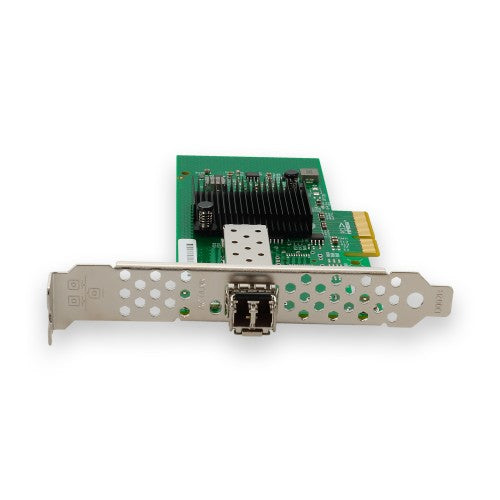

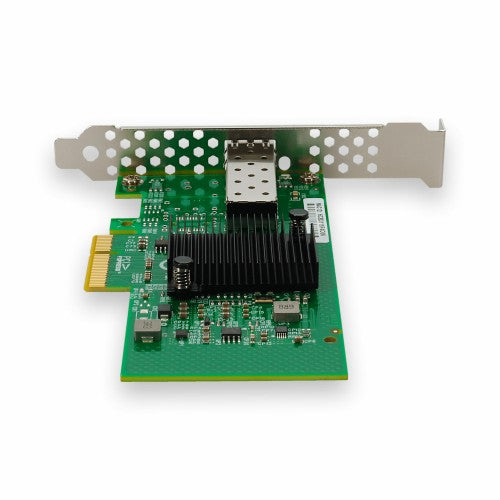

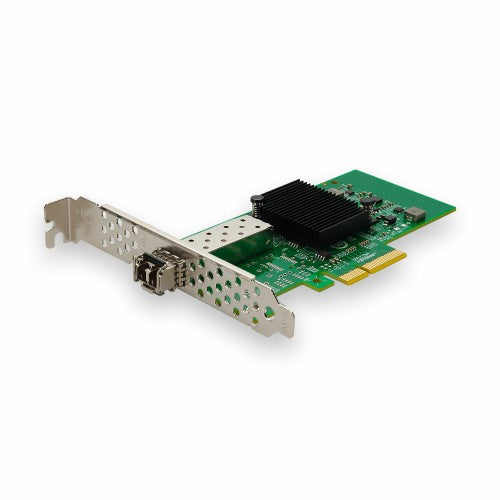

This is an Allied Telesis® AT-2914SX/LC-001 comparable Gigabit Ethernet PCIe 2.0 x4 network interface card with 1 included SX SFP transceiver that complies with IEEE 802.3 standards. It is based on an Intel 82574 chipset and is compatible with a variety of different applications and operating systems, including Windows, Linux and Unix-like systems. Providing 1Gbs of network speed, it fully supports high-end servers and various other networking applications. In addition, this card supports high level VLAN filtering. The single open SFP port accommodates multi-mode, providing a reach up to 550m. This product includes both half-height and full-height brackets. Our network interface cards are 100% compliant, and offer a cost effective solution for all of your network upgrade needs. With our certification test program, we guarantee your product will work right the first time.Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| PCI version | 2.0 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP |
| Interface | Fiber |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Bandwidth | |
| Maximum data transfer rate | 1000 Mbit/s |
| Network | |
| Chipset | Intel® 82574 |
| Networking standards | IEEE 802.1Q, IEEE 802.3 |
| Maximum operating distance | 21653.5" (550 m) |
| Maximum data transfer rate | 1000 Mbit/s |
| Fiber mode structure | Multi-mode |
| VLAN support | Yes |
| Technical details | |
| Product colour | Green, Stainless steel |
| Country of origin | China |
| Doesn't contain | Lead |
| Compliance certificates | CE, REACH, RoHS, WEEE |
| Design | |
| Product colour | Green, Stainless steel |
| Chipset | Intel® 82574 |
| Internal | Yes |
| Country of origin | China |
| Component for | Server |
| Software | |
| Windows operating systems supported | Windows 2000, Windows 7, Windows 7 x64, Windows 8, Windows 8 x64, Windows Vista, Windows Vista x64, Windows XP |
| Linux operating systems supported | Kernel 2.6, Kernel 2.6.31, Kernel 2.6.33, Kernel 3.12, Kernel 3.17, Kernel 3.3 |
| Other operating systems supported | FreeBSD, Novell NetWare 6.x |
| System requirements | |
| Server operating systems supported | Windows 2000 Advanced Server, Windows Server 2000, Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64, Windows Server 2012 |
| Windows operating systems supported | Windows 2000, Windows 7, Windows 7 x64, Windows 8, Windows 8 x64, Windows Vista, Windows Vista x64, Windows XP |
| Linux operating systems supported | Kernel 2.6, Kernel 2.6.31, Kernel 2.6.33, Kernel 3.12, Kernel 3.17, Kernel 3.3 |
| Other operating systems supported | FreeBSD, Novell NetWare 6.x |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Sustainability | |
| Doesn't contain | Lead |
| Performance | |
| Server operating systems supported | Windows 2000 Advanced Server, Windows Server 2000, Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64, Windows Server 2012 |
| Windows operating systems supported | Windows 2000, Windows 7, Windows 7 x64, Windows 8, Windows 8 x64, Windows Vista, Windows Vista x64, Windows XP |
| Linux operating systems supported | Kernel 2.6, Kernel 2.6.31, Kernel 2.6.33, Kernel 3.12, Kernel 3.17, Kernel 3.3 |
| Other operating systems supported | FreeBSD, Novell NetWare 6.x |
| Other features | |
| Chipset | Intel® 82574 |
| Country of origin | China |
