5-Port Gigabit PoE+ Switch
Trendnet

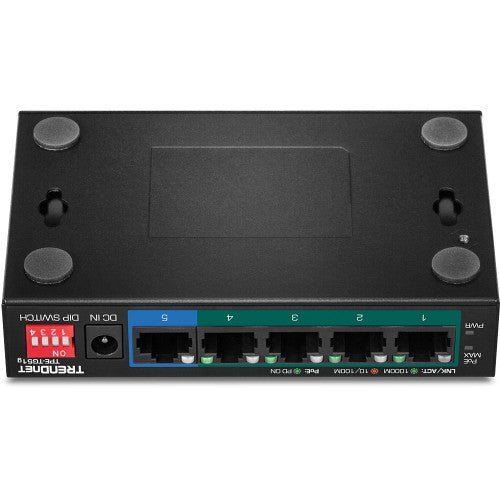

Trendnet TPE-TG51G network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Part number:
TPE-TG51G
Sale price
$56.54
Regular price
$69.42
Save
$12.88
19%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- 4 x Gigabit PoE+ ports
- 1 x Gigabit port
- 60W PoE power budget
- Extend PoE+ signal up to 200m (656 ft.) at 10Mbps
- DIP switch supports VLAN port isolation and QoS
- 10Gbps switching capacity
- Compact metal switch
- Wall mountable design
Description
TRENDnet’s 5-Port Gigabit PoE+ Switch, model TPE-TG51g, delivers data and power over existing Ethernet cables to Power over Ethernet (PoE) devices, such as access points and IP cameras. This long-range PoE switch supports both PoE and PoE+ devices with a 60W PoE power budget. Enable the DIP switch to extend the PoE+ signal up to 200m (656 ft.) at 10Mbps for long distance PoE installations. Easily install this long-range PoE switch for reliable high-speed PoE networking.Specifications
| Management features | |
|---|---|
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Network | |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| VLAN support | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Half duplex | Yes |
| Data transmission | |
| Jumbo frames | 9000 |
| MAC address table | 2000 entries |
| Switching capacity | 10 Gbit/s |
| Jumbo frames support | Yes |
| Forwarding rate | 7.44 Mpps |
| Design | |
| Wall mountable | Yes |
| Product colour | Black |
| LED indicators | Yes |
| Housing material | Metal |
| Certification | CE, FCC, LVD |
| Power | |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 64.3 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 60 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | 0 - 90 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Virtual LAN features | |
| VLAN support | Yes |
| Weight & dimensions | |
| Width | 4.76" (121 mm) |
| Depth | 2.95" (75 mm) |
| Height | 1.02" (26 mm) |
| Weight | 8.68 oz (246 g) |
| Packaging content | |
| Quick start guide | Yes |
| Technical details | |
| Product colour | Black |
| Housing material | Metal |
| Performance | |
| Harmonized System (HS) code | 85176990 |
| Certificates | |
| Certification | CE, FCC, LVD |
| Indication | |
| LED indicators | Yes |
| Packaging data | |
| Quick start guide | Yes |
| Other features | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
