Galaxy VS UPS 100kW 400V with N+1 power module for external batteries, Start-up 5x8
APC

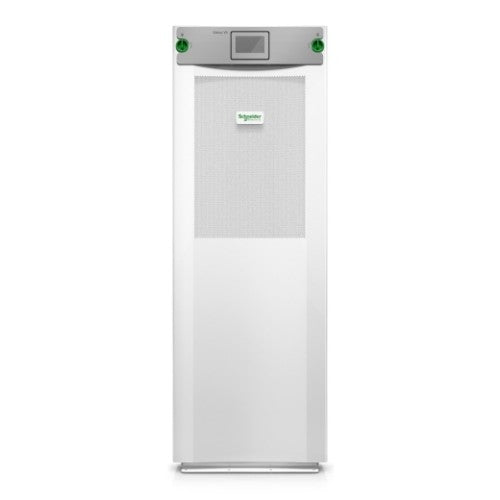

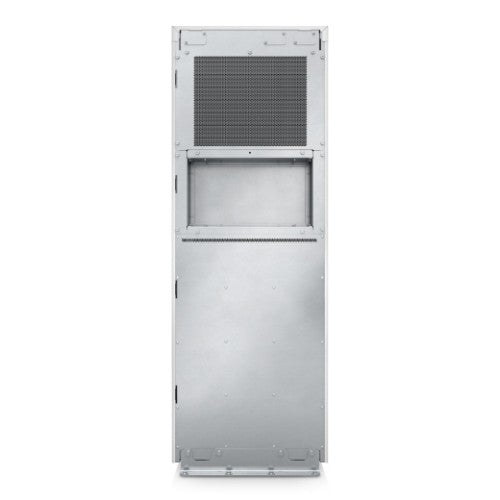

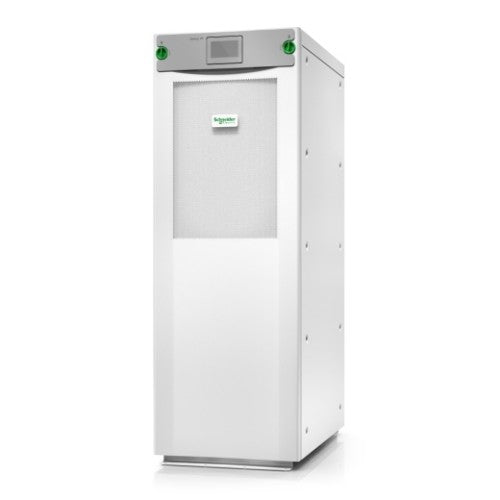

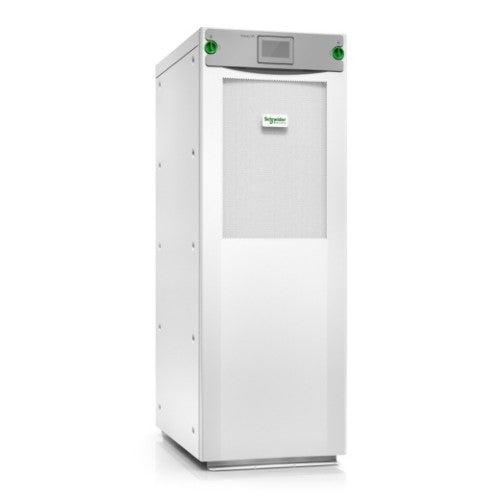

APC GVSUPS100KRHS uninterruptible power supply (UPS) Double-conversion (Online) 100 kVA 100000 W
Part number:
GVSUPS100KRHS
Sale price
$46,912.44
Regular price
$59,580.00
Save
$12,667.56
21%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Parallel-redundant capable
- Embedded Network Management Card
- Parallel-capacity capable
- Built-in backfeed protection
- Flexible DC bus
Description
Highly efficient, easy-to-deploy 100kW, 400V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. Includes 5x8 start-up service and one additional power module for N+1 redundancy.Specifications
| Power | |
|---|---|
| Output frequency | 50/60 Hz |
| Output power | 100000 W |
| Input operation voltage (min) | 340 V |
| Input operation voltage (max) | 460 V |
| Input current Total Harmonic Distortion (THD) | 3% |
| Crest factor | 2.5:1 |
| Output power capacity | 100 kVA |
| Input frequency | 40 - 70 Hz |
| Performance | |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Audible alarm(s) | Yes |
| Features | |
| Output frequency | 50/60 Hz |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Output power | 100000 W |
| Input operation voltage (min) | 340 V |
| Input operation voltage (max) | 460 V |
| Input current Total Harmonic Distortion (THD) | 3% |
| Crest factor | 2.5:1 |
| Audible alarm(s) | Yes |
| Output power capacity | 100 kVA |
| Input frequency | 40 - 70 Hz |
| Battery | |
| Battery voltage | 576 V |
| Design | |
| International Protection (IP) code | IP21 |
| Product colour | White |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 55 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 10 - 80% |
| Operating altitude | 0 - 39600" (0 - 1005.8 m) |
| Technical details | |
| Output frequency | 50/60 Hz |
| Sustainability compliance | Yes |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Package width | 25.2" (640 mm) |
| Package depth | 39" (990 mm) |
| Package height | 66.1" (1680 mm) |
| Weight | 639.3 lbs (290 kg) |
| Width | 20.5" (521 mm) |
| Package weight | 694.5 lbs (315 kg) |
| Height | 58.5" (1485 mm) |
| Depth | 33.3" (847 mm) |
| Packaging data | |
| Package width | 25.2" (640 mm) |
| Package depth | 39" (990 mm) |
| Package height | 66.1" (1680 mm) |
| Package weight | 694.5 lbs (315 kg) |
