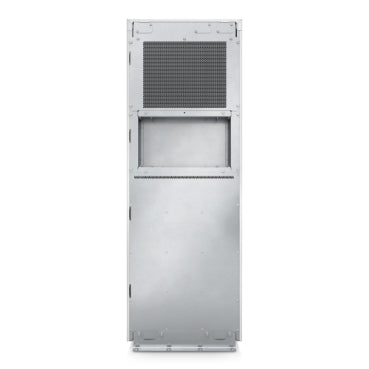

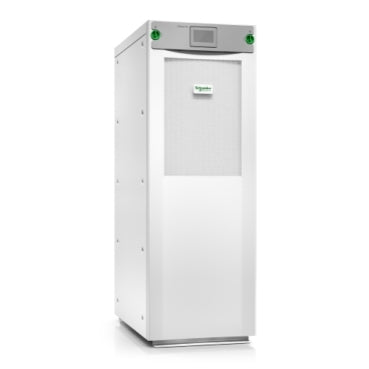

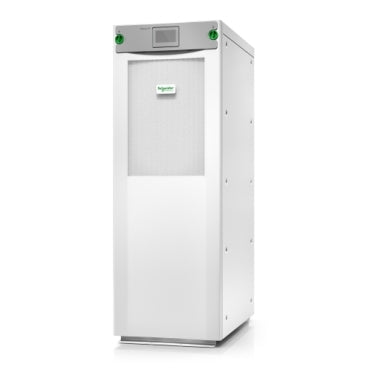

Galaxy Vs Ups 40Kw 400V With N+1 PowER Module For ExtERnal BattERies. Start-Up 5X8

Description

Specifications

Power
Output frequency	50/60 Hz
Output power	40000 W
Input operation voltage (min)	340 V
Input operation voltage (max)	460 V
Output operation voltage (min)	400 V
Maximum current	72 A
Crest factor	2.5:1
Output power capacity	40 kVA
Input frequency	40 - 70 Hz
Performance
Waveform	Sine
Noise level	68 dB
Features
Output frequency	50/60 Hz
Waveform	Sine
Output power	40000 W
Input operation voltage (min)	340 V
Input operation voltage (max)	460 V
Output operation voltage (min)	400 V
Maximum current	72 A
Noise level	68 dB
Crest factor	2.5:1
Output power capacity	40 kVA
Input frequency	40 - 70 Hz
Heat dissipation	4333 BTU/h
Battery
Battery technology	Lithium-Ion (Li-Ion)
Design
International Protection (IP) code	IP21
Product colour	White
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-25 - 55 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	10 - 80%
Operating altitude	0 - 39370.1" (0 - 1000 m)
Technical details
Output frequency	50/60 Hz
Warranty period	1 year(s)
Weight & dimensions
Package width	39" (990 mm)
Package depth	25.2" (640 mm)
Package height	66.1" (1680 mm)
Weight	551.2 lbs (250 kg)
Width	20.5" (521 mm)
Package weight	551.2 lbs (250 kg)
Height	58.5" (1485 mm)
Depth	33.3" (847 mm)
Packaging data
Package width	39" (990 mm)
Package depth	25.2" (640 mm)
Package height	66.1" (1680 mm)
Package weight	551.2 lbs (250 kg)
