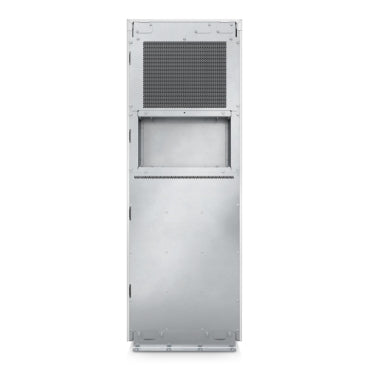

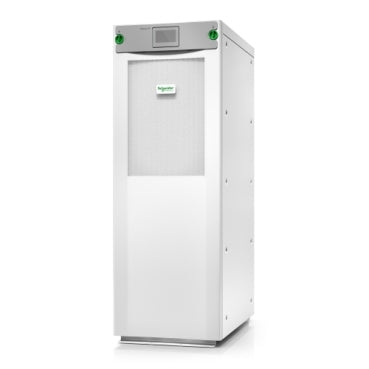

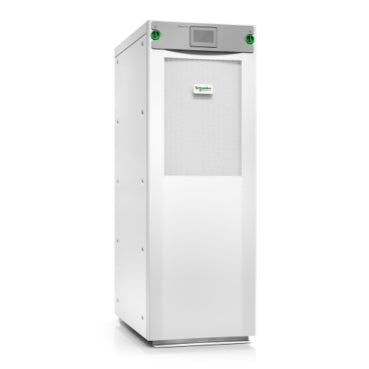

Galaxy Vs Ups 60Kw 400V With N+1 PowER Module For ExtERnal BattERies. Start-Up 5X8

Description

Specifications

Power
Output frequency	50/60 Hz
Output power	60000 W
Input operation voltage (min)	340 V
Input operation voltage (max)	460 V
Output operation voltage (min)	400 V
Maximum current	108 A
Crest factor	2.5:1
Output power capacity	60 kVA
Input frequency	40 - 70 Hz
Performance
Waveform	Sine
Noise level	68 dB
Features
Output frequency	50/60 Hz
Waveform	Sine
Output power	60000 W
Input operation voltage (min)	340 V
Input operation voltage (max)	460 V
Output operation voltage (min)	400 V
Maximum current	108 A
Noise level	68 dB
Crest factor	2.5:1
Output power capacity	60 kVA
Input frequency	40 - 70 Hz
Heat dissipation	6150 BTU/h
Battery
Battery technology	Lithium-Ion (Li-Ion)
Design
International Protection (IP) code	IP21
Product colour	White
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-25 - 55 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	10 - 80%
Operating altitude	0 - 39370.1" (0 - 1000 m)
Technical details
Output frequency	50/60 Hz
Warranty period	1 year(s)
Weight & dimensions
Package width	39" (990 mm)
Package depth	25.2" (640 mm)
Package height	66.1" (1680 mm)
Weight	639.3 lbs (290 kg)
Width	20.5" (521 mm)
Package weight	694.5 lbs (315 kg)
Height	58.5" (1485 mm)
Depth	33.3" (847 mm)
Packaging data
Package width	39" (990 mm)
Package depth	25.2" (640 mm)
Package height	66.1" (1680 mm)
Package weight	694.5 lbs (315 kg)
