Intel® Xeon® E-2234 4 cores/8 threads 3.6 GHz processor (Bursts up to 4.8 GHz), 8 GB DDR4 ECC UDIMM memory (2 x 4 GB), 2 x NVMe Gen3 x2 M.2 slots, 2 x 2.5GbE ports, 2 x 10GbE SFP+ SmartNIC (Mellanox ConnectX®-4 Lx EN).
QNAP

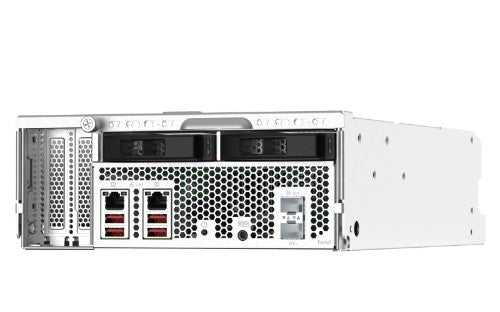

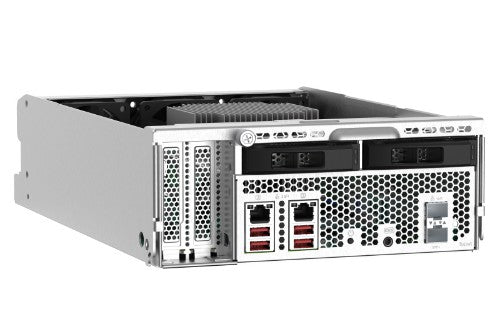

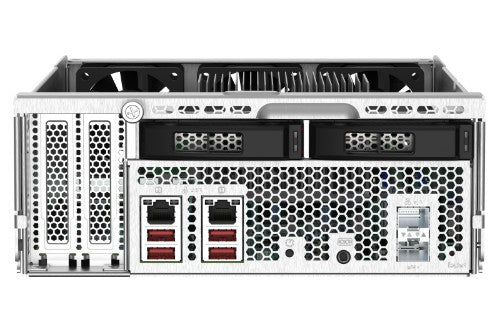

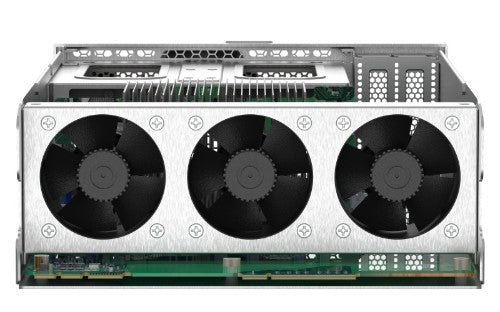

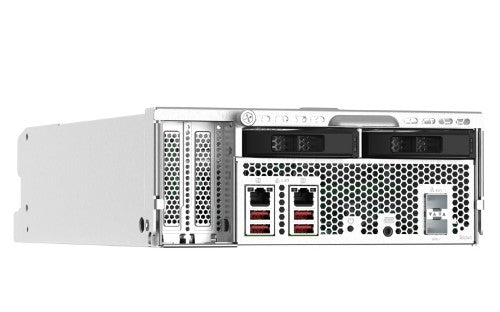

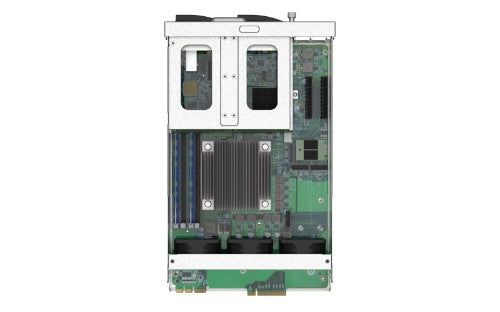

QNAP TNS-h1083X NAS Ethernet LAN Silver E-2234
Part number:
TNS-H1083X-E2234-8G
$2,510.51
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
Designed as a NAS node for the GM-1000 storage system, the TNS-h1083X features a powerful Intel® Xeon® E processor, and provides multiple 10GbE / 2.5GbE ports and expandable I/O. Coupled with the built-in M.2 and U.2 SSD slots that allow for cache acceleration, the TNS-h1083X is ideal for business backup and virtualization applications. The TNS-h1083X runs the ZFS-based QuTS hero operating system, supporting block-level inline data deduplication and compression, near-limitless snapshots, real-time SnapSync, and more business-oriented features to ensure reliable service-level agreement performance. 1. A NAS node for the GM-1000 system. Enables easier hardware upgrade and maintenance. 2. Dual 10GbE and dual 2.5GbE ports boost virtualization, cloud storage gateway, and data center applications. 3. M.2 and U.2 SSD slots enable cache acceleration to maximize network bandwidth potential. 4. Two PCIe slots support 10GbE/25GbE/40GbE adapters, QM2 cards, or Fibre Channel cards to increase application performance. 5. Supports virtualization storage for VMware®, Citrix®, Microsoft® Hyper-V®, Windows Server® 2019, and hosts virtual machines and containers. 6. QuTS hero combines ZFS advantages with the QTS App Center ecosystem to empower your business.Specifications
| Storage | |
|---|---|
| Storage drives installed | No |
| Storage drive interface | M.2 |
| Number of M.2 (M & B) slots | 2 |
| System drive sizes supported | 2.5" |
| Processor | |
| Processor manufacturer | Intel |
| CPU configuration (max) | 1 |
| Processor frequency | 4.8 GHz |
| Processor family | Intel® Xeon® |
| Processor model | E-2234 |
| Processor cores | 4 |
| Memory | |
| Internal memory type | DDR4 |
| Internal memory | 8 GB |
| Maximum RAM supported | 128 GB |
| Memory slots | 4 |
| Flash memory | 5120 MB |
| Memory form factor | UDIMM |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Jumbo frames support | Yes |
| Ports & interfaces | |
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| PCI Express x8 (Gen 3.x) slots | 1 |
| PCI Express x4 (Gen 3.x) slots | 1 |
| Design | |
| Fan diameter | 2.36" (6 cm) |
| Product colour | Silver |
| Number of fans | 3 fan(s) |
| Technical details | |
| Type | NAS |
| Backup function | No |
| Product colour | Silver |
| Number of fans | 3 fan(s) |
| Harmonized System (HS) code | 84714100 |
| Performance | |
| Type | NAS |
| Backup function | No |
| Cooling | |
| Fan diameter | 2.36" (6 cm) |
| Fan voltage | 12 V |
| Number of fans | 3 fan(s) |
| Power | |
| Fan voltage | 12 V |
| Weight & dimensions | |
| Width | 3.42" (86.9 mm) |
| Depth | 8.65" (219.6 mm) |
| Height | 14.5" (369.4 mm) |
| Processor special features | |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Clear Video Technology | No |
| Intel 64 | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Embedded options available | No |
