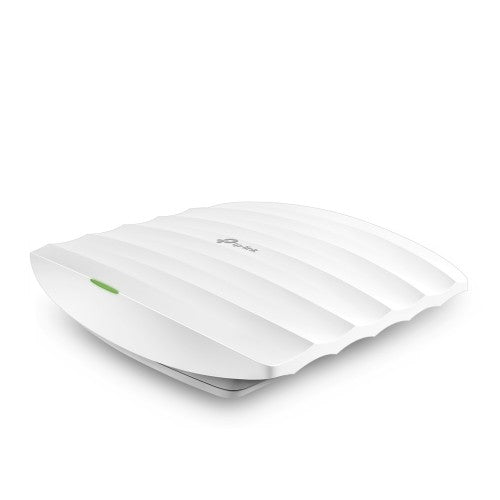

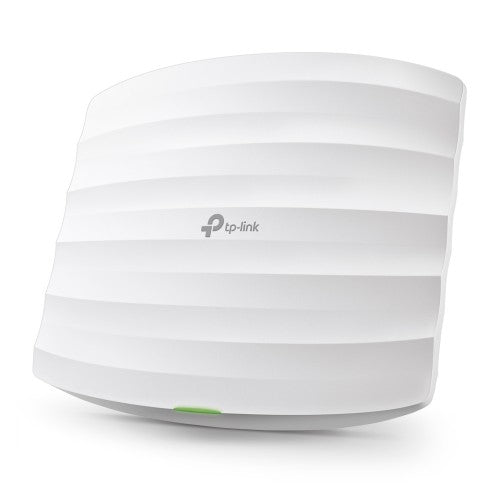

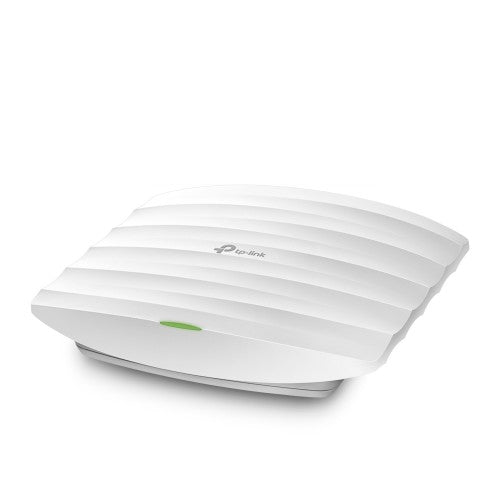

TP-Link Omada EAP225 wireless access point 1350 Mbit/s White Power over Ethernet (PoE)
  • TP-Link Omada EAP225 wireless access point 1350 Mbit/s White Power over Ethernet (PoE)
  • TP-Link Omada EAP225 wireless access point 1350 Mbit/s White Power over Ethernet (PoE)
  • TP-Link Omada EAP225 wireless access point 1350 Mbit/s White Power over Ethernet (PoE)
  • TP-Link Omada EAP225 wireless access point 1350 Mbit/s White Power over Ethernet (PoE)
  • TP-Link Omada EAP225 wireless access point 1350 Mbit/s White Power over Ethernet (PoE)
  • TP-Link Omada EAP225 wireless access point 1350 Mbit/s White Power over Ethernet (PoE)
  • TP-Link Omada EAP225 wireless access point 1350 Mbit/s White Power over Ethernet (PoE)
  • TP-Link Omada EAP225 wireless access point 1350 Mbit/s White Power over Ethernet (PoE)
TP-Link Omada EAP225 wireless access point 1350 Mbit/s White Power over Ethernet (PoE)
TP-Link

TP-Link Omada EAP225 wireless access point 1350 Mbit/s White Power over Ethernet (PoE)

Part number: EAP225
$58.40 $59.99
Save $1.59
3% OFF

Taxes & Shipping calculated at checkout

Return & Refunds policy

Shipping time varies based your on location.

Enjoy Free Shipping on orders over $2000 USD

802.3af/at PoE, 12.6W, 2.4GHz: 4dBi x 3, 5GHz: 5dBi x 2, 2.4GHz and 5GHz, FCC, RoHS

Key Features

  • Simultaneous 450Mbps1 on 2.4GHz and 867Mbps1 on 5GHz totals 1317Mbps1 Wi-Fi speeds
  • EAP Controller Software lets administrators easily manage hundreds of EAPs
  • Compatibility with 802.3af and Passive PoE support makes deployment effortless and flexible
  • Captive portal provides a convenient method for guest authentication
  • Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections
  • MU-MIMO2 means access points simultaneously transfer data with multiple devices, speeding up connections
  • Beamforming concentrates signal towards where you need it most, providing a fast and stable Wi-Fi experience
  • Supports management VLAN for an enhanced network management
  • Schedules can be set so access points automatically reboot and Wi-Fi turns on/off at the times you choose

Description

Superior Wi-Fi Speeds with MU-MIMO Technology
Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, the EAP225 easily delivers dual-band Wi-Fi speeds of up to 1350 Mbps to multiple devices at the same time.

Cloud Centralized Management
- Anytime, Anywhere
Omada Hardware Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.

Facebook check-in and SMS authentication expands your social influence in secured ways
Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.

Multiple PoE Options for Easy Installation
EAP225 supports both 802.3af PoE and Passive PoE power supply, can be either powered by a PoE switch or the provided PoE injector, making deployment effortless and flexible.

Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.

Meet Our New Hero Product!
The OC200 Omada Hardware Controller is dedicated to providing centralized management for the whole Omada network.

Specifications

Data transmission
Ethernet LAN data rates 10,100,1000 Mbit/s
Maximum data transfer rate 1350 Mbit/s
Performance
2.4 GHz Yes
5 GHz Yes
Wi-Fi Multimedia (WMM)/(WME) Yes
Syslog Yes
On/off switch Yes
Reset button Yes
Web-based management Yes
VLAN support Yes
Rate limiting Yes
Quality of Service (QoS) support Yes
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af
Ethernet LAN data rates 10,100,1000 Mbit/s
Maximum data transfer rate 1350 Mbit/s
MIMO type Multi User MIMO
MIMO Yes
Band steering Yes
Airtime Fairness (ATF) Yes
Compatible operating systems Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
Network
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af
Security
Cable lock slot Yes
Number of SSID supported 16
Security algorithms 64-bit WEP, 128-bit WEP, 152-bit WEP, SSID, WPA, WPA-PSK, WPA2, WPA2-PSK
MAC address filtering Yes
Access Control List (ACL) Yes
Service Set Identifier (SSID) features Multiple SSIDs
Management features
VLAN support Yes
Rate limiting Yes
Quality of Service (QoS) support Yes
Syslog Yes
Web-based management Yes
Features
6 GHz No
2.4 GHz Yes
5 GHz Yes
Wi-Fi Multimedia (WMM)/(WME) Yes
VLAN support Yes
Rate limiting Yes
Quality of Service (QoS) support Yes
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af
Ethernet LAN data rates 10,100,1000 Mbit/s
Cabling technology 10/100/1000Base-T(X)
Maximum data transfer rate 1350 Mbit/s
Transmitting power (FCC) 24 dBm
Transmitting power (CE) 23 dBm
MIMO type Multi User MIMO
MIMO Yes
Band steering Yes
Airtime Fairness (ATF) Yes
Maximum data transfer rate (2.4 GHz) 450 Mbit/s
Maximum data transfer rate (5 GHz) 867 Mbit/s
Virtual LAN features VLAN mapping
BeamForming Yes
Compatible operating systems Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
Ports & interfaces
USB 2.0 ports quantity 0
Ethernet LAN (RJ-45) ports 1
DC-in jack Yes
Cabling technology 10/100/1000Base-T(X)
Power
Output voltage 12 V
Output current 1.5 A
Power consumption (typical) 10.15 W
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) type supported Passive PoE
Design
Placement Ceiling, Wall
On/off switch Yes
Product colour White
Reset button Yes
LED indicators Power, WLAN
Cable lock slot Yes
Cable lock slot type Kensington
Antenna
Antenna type Internal
Antennas quantity 5
Antenna gain level (max) 5 dBi
Antenna direction type Omni-directional
Antenna features Integrated antenna
Technical details
Reset button Yes
Sustainability compliance Yes
Harmonized System (HS) code 85176990
Compliance certificates CE, Federal Communications Commission (FCC), RoHS
Certificates
Compliance certificates CE, Federal Communications Commission (FCC), RoHS
Indication
LED indicators Power, WLAN
Software
Access Control List (ACL) Yes
Mobile network
SIM card slot No
Weight & dimensions
Width 8.09" (205.5 mm)
Depth 7.15" (181.5 mm)
Height 1.46" (37.1 mm)
Package width 8.98" (228 mm)
Package depth 13.4" (340 mm)
Package height 2.56" (65 mm)
Package weight 32.1 oz (910 g)
Packaging data
Quick start guide Yes
Mounting kit Yes
PoE adapter included Yes
Package type Box
Package width 8.98" (228 mm)
Package depth 13.4" (340 mm)
Package height 2.56" (65 mm)
Package weight 32.1 oz (910 g)
AC adapter included Yes

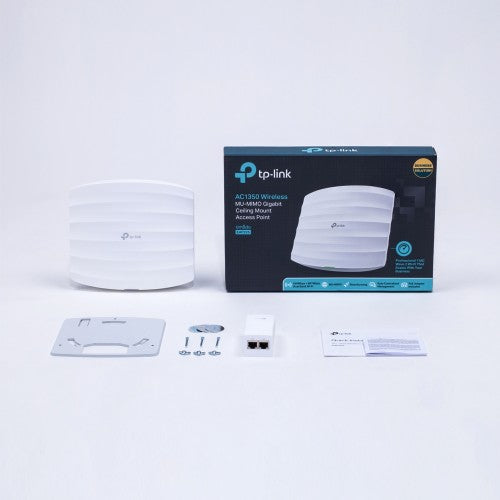

Packaging content
Quick start guide Yes
Mounting kit Yes
PoE adapter included Yes
AC adapter included Yes
Quantity per pack 1 pc(s)
Package type Box
Operational conditions
Operating relative humidity (H-H) 10 - 90%
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -40 - 70 °C
Storage relative humidity (H-H) 5 - 90%
System requirements
Compatible operating systems Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
Sustainability
Sustainability compliance Yes
Logistics data
Quantity per pack 1 pc(s)
Harmonized System (HS) code 85176990
