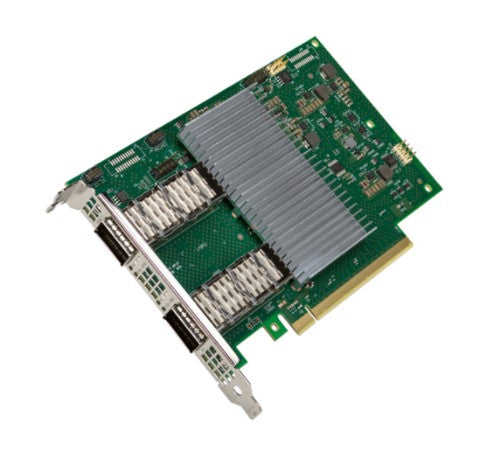

Intel ® Ethernet Network Adapter E810-2CQDA2, Internal, Wired, PCI Express, Fiber, 200000 Mbit/s, Green, Gray
Intel
Intel ® Ethernet Network Adapter E810-2CQDA2
Part number:
E8102CQDA2
$765.99
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
Intel ® Ethernet Network Adapter E810-2CQDA2. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Fiber. Maximum data transfer rate: 200000 Mbit/s. Product color: Green, GraySpecifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| PCI version | 4.0 |
| Fiber ports quantity | 2 |
| Fiber optic connector | QSFP28 |
| PCI Card form factor | Full-height |
| Interface | Fiber |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Bandwidth | |
| Maximum data transfer rate | 200000 Mbit/s |
| Technical details | |
| Product colour | Green, Gray |
| Speed & slot width | 16.0 GT/s, x16 Lane |
| PCI-SIG* SR-IOV Capable | Yes |
| PCI Card form factor | Full-height |
| On-chip QoS and Traffic Management | Yes |
| iWARP/RDMA | Yes |
| Intelligent Offloads | Yes |
| Intel Virtualization Technology for Connectivity (VT-c) | Yes |
| Intel Virtual Machine Device Queues (VMDq) | Yes |
| Intel Flexible Port Partitioning | Yes |
| Intel Data Direct I/O Technology | Yes |
| Storage Over Ethernet | iSCSI, NFS |
| Harmonized System (HS) code | 85176990 |
| Export Control Classification Number (ECCN) | 5A991 |
| Commodity Classification Automated Tracking System (CCATS) | NA |
| Compliance certificates | RoHS |
| Processor family | 100GbE Intel Ethernet Network Adapter E810-100GbE Intel Ethernet Network Adapter E810 |
| Status | Launched |
| Market segment | Server |
| Launch date | Q1'21 |
| Network | |
| Networking standards | IEEE 1588 |
| LAN controller | Intel E810 |
| Maximum data transfer rate | 200000 Mbit/s |
| Design | |
| Product colour | Green, Gray |
| Certification | FCC B, UL, CE, VCCI, BSMI, RCM, KCC |
| Internal | Yes |
| PCI Card form factor | Full-height |
| Component for | Server |
| Power | |
| Power consumption (typical) | 21.8 W |
| System requirements | |
| Compatible operating systems | https://www.intel.com/content/www/us/en/support/articles/000025890/ethernet-products.html |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Weight & dimensions | |
| Width | 6.57" (167 mm) |
| Depth | 4.37" (111 mm) |
| Performance | |
| Speed & slot width | 16.0 GT/s, x16 Lane |
| PCI-SIG* SR-IOV Capable | Yes |
| On-chip QoS and Traffic Management | Yes |
| iWARP/RDMA | Yes |
| Intelligent Offloads | Yes |
| Intel Virtual Machine Device Queues (VMDq) | Yes |
| Intel Flexible Port Partitioning | Yes |
| Intel Data Direct I/O Technology | Yes |
| Certificates | |
| Certification | FCC B, UL, CE, VCCI, BSMI, RCM, KCC |
| Other features | |
| Compatible operating systems | https://www.intel.com/content/www/us/en/support/articles/000025890/ethernet-products.html |
| Processor family | 100GbE Intel Ethernet Network Adapter E810-100GbE Intel Ethernet Network Adapter E810 |
| Cable type | QSFP28 - DAC, Optics, and AOC's |
| Speed & slot width | 16.0 GT/s, x16 Lane |
| PCI-SIG* SR-IOV Capable | Yes |
| On-chip QoS and Traffic Management | Yes |
| iWARP/RDMA | Yes |
| Intelligent Offloads | Yes |
| Intel Virtualization Technology for Connectivity (VT-c) | Yes |
| Intel Virtual Machine Device Queues (VMDq) | Yes |
| Intel Flexible Port Partitioning | Yes |
| Intel Data Direct I/O Technology | Yes |
| Storage Over Ethernet | iSCSI, NFS |
| Status | Launched |
| Market segment | Server |
| Launch date | Q1'21 |
| Harmonized System (HS) code | 85176990 |
| Export Control Classification Number (ECCN) | 5A991 |
| Commodity Classification Automated Tracking System (CCATS) | NA |
| Bracket height | Full-Height (FH) |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
