55" 3840 x 2160 DLED, 400 cd/m2, 9ms, 16:9, Android, VGA, HDMI, USB, DisplayPort, LAN, 768.5 x 1870 x 400 mm, 62.7
With four-times the resolution of Full HD, this Ultra HD 3840x2160 display delivers a breathtaking viewing experience with immersive images that are vibrant, clear, and as large as life.
POWERFUL EMBEDDED SOC PLATFORM
The ViewSonic® EMBEDDED Signage Platform (VESP) is a Linux-based Kernel OS, all-in-one solution that simplifies installation and maintenance. With VESP, there is no need for any external devices to communicate with the server or play digital media. Enjoy simplified development, reinforced capability with multiple web formats, and secured protection.
FREE-STANDING DESIGN
This all-in-one digital ePoster kiosk features a sleek and slim premium design, coupled with a free-standing form factor to deliver dynamic messaging in high-traffic areas.
OPTIONAL CONTENT MANAGEMENT SOFTWARE
Great for all venues and scenarios, the optional cloud-based Revel Digital CMS software lets users transfer multimedia content onto the display from PCs and laptops. This partner-certified content management tool also lets you format, schedule, and save playback settings.
ANTI-SCRATCH, ANTI-GLARE GLASS FACEPLATE
This display features a scratch-resistant surface that ensures a durable, consistent, high-quality viewing experience. In addition, an anti-glare film improves screen visibility in bright environments.
MEDIA PLAYER CRADLE WITH LOCKABLE SECURITY DOOR
A convenient media player cradle can accommodate a PC or an additional mounted media player, while a lockable door keeps things secure and out of sight. The ePoster stand also features an integrated power supply, eliminating the need to find alternative outlets for add-on devices.
VERSATILE CONNECTIVITY
DisplayPort, HDMI, and VGA inputs give you the freedom and flexibility to connect to your dedicated graphics card and gaming console.
DUAL INTEGRATED SPEAKERS
Designed with dual integrated speakers, this display combines incredible screen performance with stereo sound.
EASY LAN CONTROL
This display has an integrated RJ45 connection that allows you to remotely set up and manage display content from a PC or laptop. You can also remotely turn the display on or off, or adjust the volume and other settings, via a user-friendly on-screen interface.

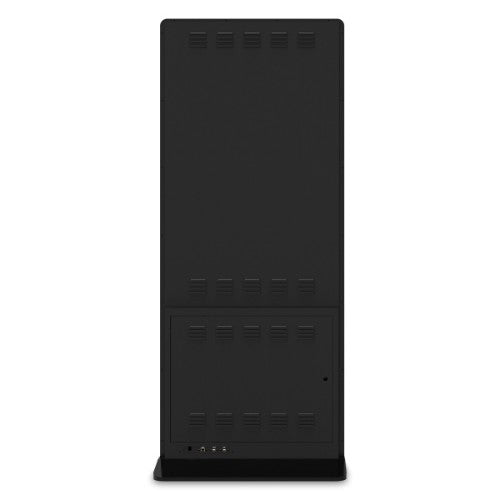

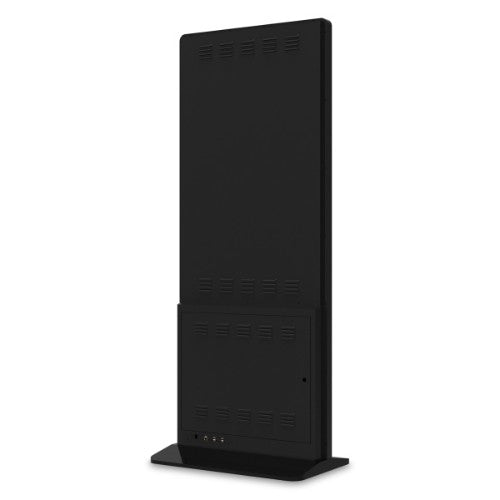

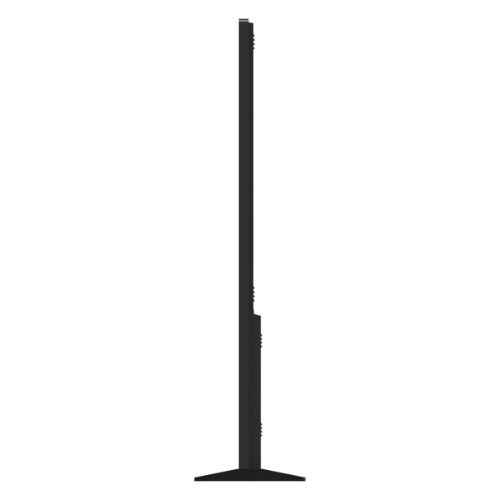

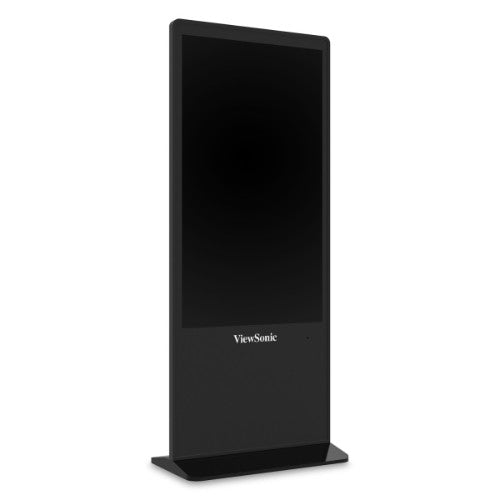

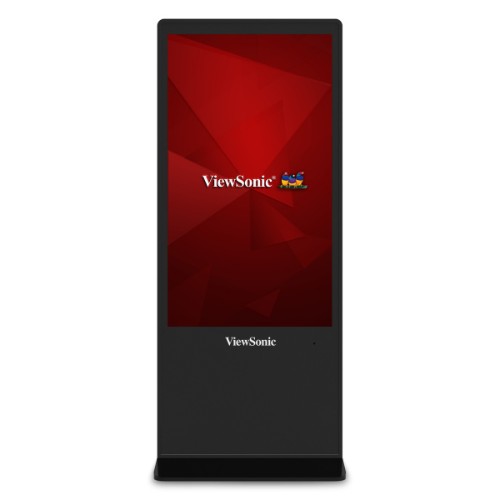

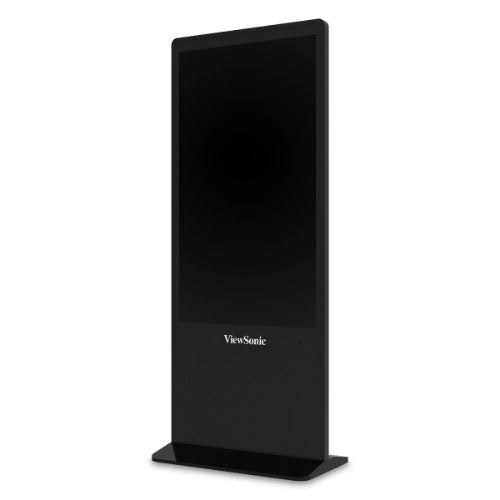

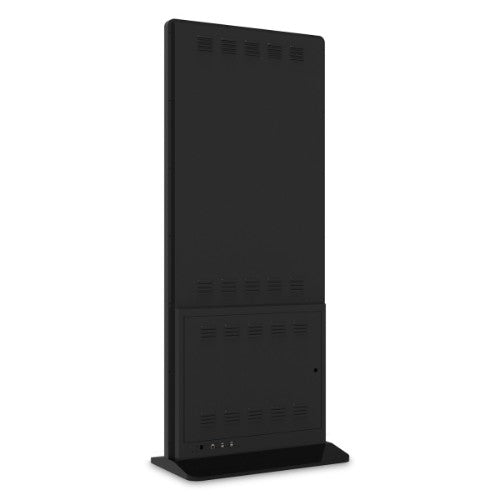

Viewsonic EP5542 signage display 55" 400 cd/m² 4K Ultra HD Android 8.0 16/7
Part number:
EP5542
Sale price
$3,190.86
Regular price
$3,999.00
Save
$808.14
20%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Anti-Glare 3H, Haze = 2%, 7H / 4mm Tempered glass
- Operation Rating: 16/7
- CPU: Multi-CPU (ARM Cortex A73 x 2 + Cortex A53 x 2)
- RAM: 2GB
- Memory Type: DDR4
Description
ULTRA HD RESOLUTIONWith four-times the resolution of Full HD, this Ultra HD 3840x2160 display delivers a breathtaking viewing experience with immersive images that are vibrant, clear, and as large as life.
POWERFUL EMBEDDED SOC PLATFORM
The ViewSonic® EMBEDDED Signage Platform (VESP) is a Linux-based Kernel OS, all-in-one solution that simplifies installation and maintenance. With VESP, there is no need for any external devices to communicate with the server or play digital media. Enjoy simplified development, reinforced capability with multiple web formats, and secured protection.
FREE-STANDING DESIGN
This all-in-one digital ePoster kiosk features a sleek and slim premium design, coupled with a free-standing form factor to deliver dynamic messaging in high-traffic areas.
OPTIONAL CONTENT MANAGEMENT SOFTWARE
Great for all venues and scenarios, the optional cloud-based Revel Digital CMS software lets users transfer multimedia content onto the display from PCs and laptops. This partner-certified content management tool also lets you format, schedule, and save playback settings.
ANTI-SCRATCH, ANTI-GLARE GLASS FACEPLATE
This display features a scratch-resistant surface that ensures a durable, consistent, high-quality viewing experience. In addition, an anti-glare film improves screen visibility in bright environments.
MEDIA PLAYER CRADLE WITH LOCKABLE SECURITY DOOR
A convenient media player cradle can accommodate a PC or an additional mounted media player, while a lockable door keeps things secure and out of sight. The ePoster stand also features an integrated power supply, eliminating the need to find alternative outlets for add-on devices.
VERSATILE CONNECTIVITY
DisplayPort, HDMI, and VGA inputs give you the freedom and flexibility to connect to your dedicated graphics card and gaming console.
DUAL INTEGRATED SPEAKERS
Designed with dual integrated speakers, this display combines incredible screen performance with stereo sound.
EASY LAN CONTROL
This display has an integrated RJ45 connection that allows you to remotely set up and manage display content from a PC or laptop. You can also remotely turn the display on or off, or adjust the volume and other settings, via a user-friendly on-screen interface.
Specifications
| Display | |
|---|---|
| Display number of colours | 1.07 billion colors |
| Panel type | MVA |
| LED backlighting type | Direct-LED |
| Display diagonal | 55" |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 400 cd/m² |
| HD type | 4K Ultra HD |
| Response time | 9 ms |
| Contrast ratio (typical) | 1300:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Native aspect ratio | 16:9 |
| Anti-glare screen | Yes |
| Rated lifetime | 30000 h |
| Haze rate | 2% |
| Ports & interfaces | |
| USB port | Yes |
| HDMI version | 2.0 |
| DisplayPorts quantity | 1 |
| Ethernet LAN | Yes |
| HDMI ports quantity | 3 |
| VGA (D-Sub) input ports | 1 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-232 interface | Yes |
| USB ports quantity | 3 |
| Audio | |
| Number of built-in speakers | 2 |
| RMS rated power | 10 W |
| Built-in speaker(s) | Yes |
| Design | |
| Orientation | Vertical |
| Anti-glare screen | Yes |
| Performance | |
| Operating hours (hours/days) | 16/7 |
| HDCP | Yes |
| HDCP version | 2.2 |
| Power | |
| Power consumption (typical) | 126 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | F |
| Energy consumption (SDR) per 1000 hours | 73 kWh |
| Computer system | |
| Operating system installed | Android 8.0 |
| Internal memory | 2 GB |
| Weight & dimensions | |
| Weight | 127.9 lbs (58 kg) |
| Display width | 30.3" (768.5 mm) |
| Display depth | 15.7" (400 mm) |
| Display height | 73.6" (1870 mm) |
| Display weight | 138.2 lbs (62.7 kg) |
| Packaging data | |
| Package width | 36.2" (920 mm) |
| Package depth | 21.7" (550 mm) |
| Package height | 78.7" (2000 mm) |
| Package weight | 147 lbs (66.7 kg) |
| Batteries included | Yes |
| Remote control included | Yes |
| Cables included | AC |
| Packaging content | |
| Batteries included | Yes |
| Remote control included | Yes |
| Cables included | AC |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Network | |
| Ethernet LAN | Yes |
| Thin Client | |
| Operating system installed | Android 8.0 |
| Internal memory | 2 GB |
| Logistics data | |
| Products per master (outer) case | 1 pc(s) |
| Pallet gross width | 21.7" (55 cm) |
| Pallet gross length | 36.2" (92 cm) |
| Pallet gross height | 83.9" (2.13 m) |
| Harmonized System (HS) code | 8528529100 |
| Features | |
| Harmonized System (HS) code | 8528529100 |
| Technical details | |
| Panel type | MVA |
| LED backlighting type | Direct-LED |
| Other features | |
| Panel type | MVA |
| Energy efficiency scale | A to G |
