15 kVA, 15 kW, 220V, 40/70Hz, 3:3, 68 dB, IP20, 380 x 960 x 1400, 132 kg, White
High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 15 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is for internal batteries, but is supplied without batteries, so you can easily customize the battery runtime. Includes 5x8 start-up service.
Includes: Dust filter, Installation manual, Start-up service
Straightforward installation
Including the input, output, and bypass breakers, as well as the Emergency Power Off (EPO) switch, simplifies installation planning and speeds up deployment.
ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
Intuitive user interface
The intuitive graphical user interface allows for easy system configuration.
Easy to install fast
Quickly roll the compact and lightweight UPS into position.
Front-access servicing
Simplifies installation and UPS maintenance while minimizing space requirements.
Easy Loop Test
Verifies UPS performance before you connect your load, without the need for a load bank.
APC

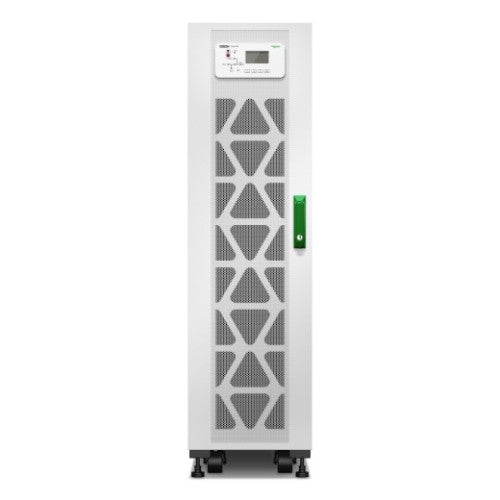

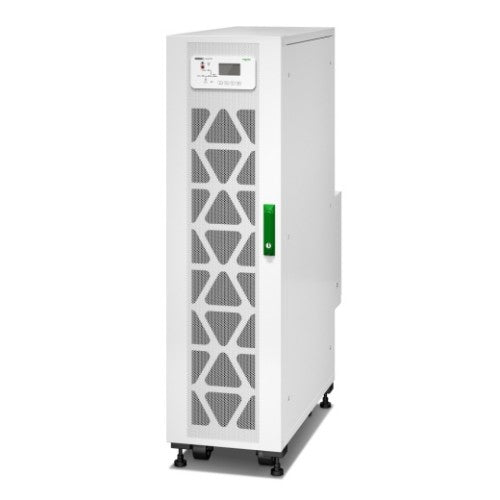

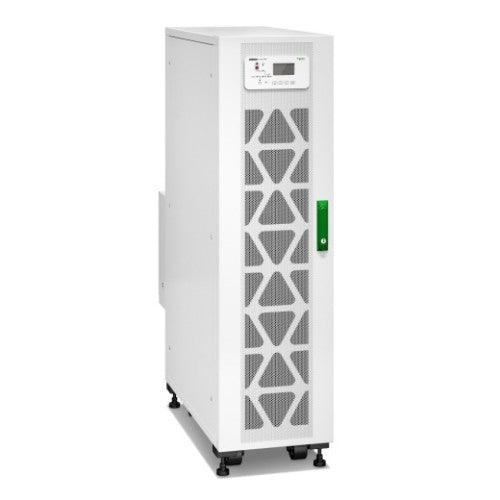

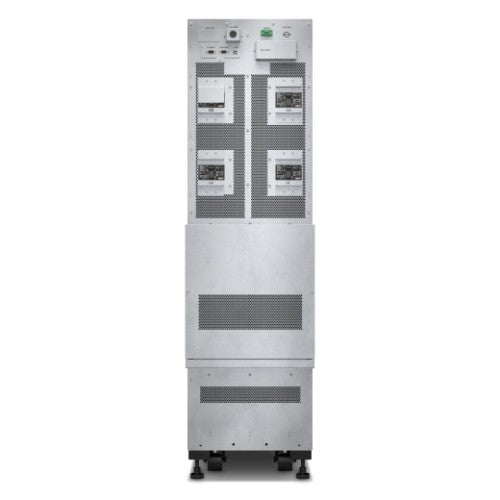

APC E3SUPS15KFBS uninterruptible power supply (UPS) Double-conversion (Online) 15 kVA 15000 W
Part number:
E3SUPS15KFBS
Sale price
$12,404.47
Regular price
$15,442.50
Save
$3,038.03
20%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in
- Includes: Dust filter, Installation manual, Start-up service
Description
Easy UPS 3S 15 kVA 208V 3:3 UPS for internal batteries, Start-up 5x8High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 15 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is for internal batteries, but is supplied without batteries, so you can easily customize the battery runtime. Includes 5x8 start-up service.
Includes: Dust filter, Installation manual, Start-up service
Straightforward installation
Including the input, output, and bypass breakers, as well as the Emergency Power Off (EPO) switch, simplifies installation planning and speeds up deployment.
ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
Intuitive user interface
The intuitive graphical user interface allows for easy system configuration.
Easy to install fast
Quickly roll the compact and lightweight UPS into position.
Front-access servicing
Simplifies installation and UPS maintenance while minimizing space requirements.
Easy Loop Test
Verifies UPS performance before you connect your load, without the need for a load bank.
Specifications
| Power | |
|---|---|
| Output frequency | 50/60 Hz |
| Output power | 15000 W |
| Input operation voltage (max) | 220 V |
| Output operation voltage (min) | 220 V |
| Crest factor | 3:3 |
| Output power capacity | 15 kVA |
| ECO mode | Yes |
| Input frequency | 40/70 Hz |
| Performance | |
| UPS topology | Double-conversion (Online) |
| Power protection features | Overload, Short circuit |
| Noise level | 68 dB |
| Features | |
| Output frequency | 50/60 Hz |
| UPS topology | Double-conversion (Online) |
| Output power | 15000 W |
| Input operation voltage (max) | 220 V |
| Output operation voltage (min) | 220 V |
| Power protection features | Overload, Short circuit |
| Noise level | 68 dB |
| Crest factor | 3:3 |
| Output power capacity | 15 kVA |
| ECO mode | Yes |
| Input frequency | 40/70 Hz |
| Battery | |
| Battery voltage | 120 V |
| Design | |
| International Protection (IP) code | IP20 |
| Form factor | Large tower |
| Product colour | White |
| Certification | cTUVus, FCC part 15 class B, IEC 62040-2, IEC 62040-3, ISTA 2B, UL 1778 5th edition |
| Control type | Touch |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 59052" (0 - 1499.9 m) |
| Non-operating altitude | 0 - 590551.2" (0 - 15000 m) |
| Technical details | |
| Output frequency | 50/60 Hz |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Package width | 31.5" (800 mm) |
| Package depth | 47.2" (1200 mm) |
| Package height | 62.8" (1595 mm) |
| Weight | 291 lbs (132 kg) |
| Width | 15" (380 mm) |
| Package weight | 363.8 lbs (165 kg) |
| Height | 55.1" (1400 mm) |
| Depth | 37.8" (960 mm) |
| Packaging data | |
| Quick installation guide | Yes |
| Package width | 31.5" (800 mm) |
| Package depth | 47.2" (1200 mm) |
| Package height | 62.8" (1595 mm) |
| Package weight | 363.8 lbs (165 kg) |
| Certificates | |
| Certification | cTUVus, FCC part 15 class B, IEC 62040-2, IEC 62040-3, ISTA 2B, UL 1778 5th edition |
| Packaging content | |
| Quick installation guide | Yes |
