Ethernet Network Adapter E810-2CQDA2, PCI Express (PCIe) 4.0, 2 x QSFP28, 5 pack
The Intel® Ethernet Network Adapter E810-2CQDA2 delivers up to 200Gbps of total bandwidth in systems that are PCIe 4.0 compliant. Each QSFP28 port supports up to 100Gbps, providing the functionality and throughput of two 100Gbps adapters in a single bifurcated PCIe 4.0 x16 slot.
Intel

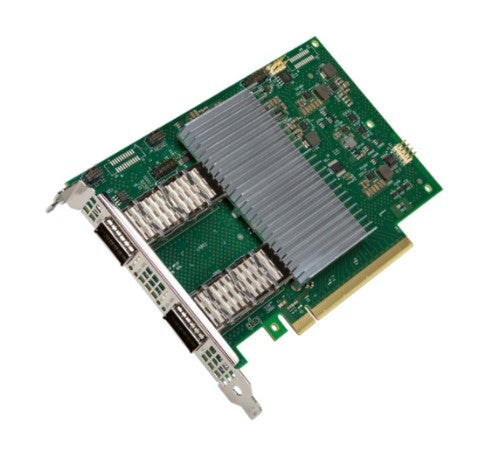

Intel E810-2CQDA2 Internal Fiber 200000 Mbit/s
Part number:
E8102CQDA2G1P5
$726.44
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Dual-Port QSFP28
- Application Device Queues (ADQ)
- PCI Express (PCIe) 4.0 x16
- Dynamic Device Personalization (DDP)
- Ethernet Port Configuration Tool (EPCT)
- Supports both RDMA iWARP and RoCEv2
Description
Meet the demanding bandwidth needs of advanced Communications, Cloud, and Storage deployments and improve application efficiency and network performance with innovative and versatile capabilities that optimize high-performance server workloads.The Intel® Ethernet Network Adapter E810-2CQDA2 delivers up to 200Gbps of total bandwidth in systems that are PCIe 4.0 compliant. Each QSFP28 port supports up to 100Gbps, providing the functionality and throughput of two 100Gbps adapters in a single bifurcated PCIe 4.0 x16 slot.
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| PCI version | 4.0 |
| Fiber ports quantity | 2 |
| Fiber optic connector | QSFP28 |
| PCI Card form factor | Full-height |
| Interface | Fiber |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Bandwidth | |
| Maximum data transfer rate | 200000 Mbit/s |
| Technical details | |
| Product colour | Green, Gray |
| Speed & slot width | 16.0 GT/s, x16 Lane |
| PCI-SIG* SR-IOV Capable | Yes |
| PCI Card form factor | Full-height |
| On-chip QoS and Traffic Management | Yes |
| iWARP/RDMA | Yes |
| Intelligent Offloads | Yes |
| Intel Virtualization Technology for Connectivity (VT-c) | Yes |
| Intel Virtual Machine Device Queues (VMDq) | Yes |
| Intel Flexible Port Partitioning | Yes |
| Intel Data Direct I/O Technology | Yes |
| Storage Over Ethernet | iSCSI, NFS |
| Harmonized System (HS) code | 8517620090 |
| Export Control Classification Number (ECCN) | 5A991 |
| Compliance certificates | RoHS |
| Network | |
| Networking standards | IEEE 1588 |
| LAN controller | Intel E810 |
| Maximum data transfer rate | 200000 Mbit/s |
| Design | |
| Product colour | Green, Gray |
| Certification | FCC B, UL, CE, VCCI, BSMI, RCM, KCC |
| Internal | Yes |
| PCI Card form factor | Full-height |
| Component for | Server |
| Power | |
| Power consumption (typical) | 21.8 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Weight & dimensions | |
| Width | 6.57" (167 mm) |
| Depth | 4.37" (111 mm) |
| Performance | |
| Speed & slot width | 16.0 GT/s, x16 Lane |
| PCI-SIG* SR-IOV Capable | Yes |
| On-chip QoS and Traffic Management | Yes |
| iWARP/RDMA | Yes |
| Intelligent Offloads | Yes |
| Intel Virtual Machine Device Queues (VMDq) | Yes |
| Intel Flexible Port Partitioning | Yes |
| Intel Data Direct I/O Technology | Yes |
| Certificates | |
| Certification | FCC B, UL, CE, VCCI, BSMI, RCM, KCC |
| Logistics data | |
| Harmonized System (HS) code | 8517620090 |
| Other features | |
| Speed & slot width | 16.0 GT/s, x16 Lane |
| PCI-SIG* SR-IOV Capable | Yes |
| On-chip QoS and Traffic Management | Yes |
| iWARP/RDMA | Yes |
| Intelligent Offloads | Yes |
| Intel Virtualization Technology for Connectivity (VT-c) | Yes |
| Intel Virtual Machine Device Queues (VMDq) | Yes |
| Intel Flexible Port Partitioning | Yes |
| Intel Data Direct I/O Technology | Yes |
| Storage Over Ethernet | iSCSI, NFS |
| Harmonized System (HS) code | 8517620090 |
| Export Control Classification Number (ECCN) | 5A991 |
