95 Mpps/128 Gbps, 24x RJ-45, PoE/PoE+, 4x SFP+, 44x442x211 mm
Black Box

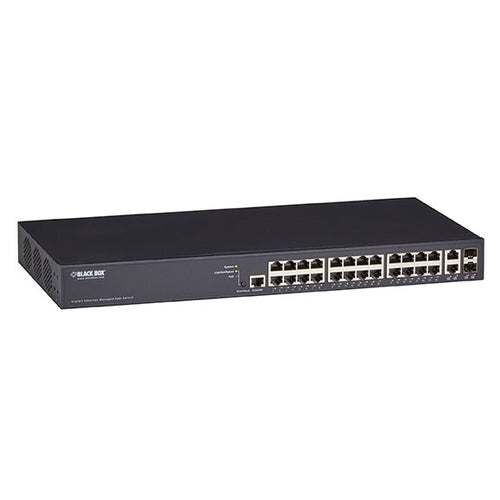

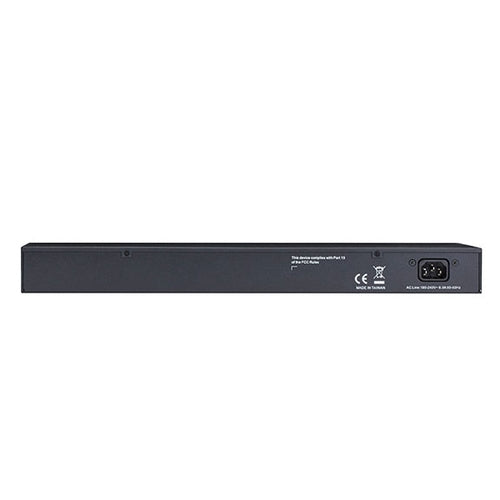

Black Box LPB3028A network switch Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)
Part number:
LPB3028A
Sale price
$1,183.58
Regular price
$1,521.46
Save
$337.88
22%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Provides 10/100/1000BASE-T UTP ports plus SFP+ ports
- Powers 802.3af PoE or 802.3at PoE+ wireless access points, security cameras, VoIP phones, remote sensors, and other devices
- Scalable: Add SFPs only when you need more capacity
- Flexible: SFP slot enables you to define distances from 500 meters to 10 kilometers
- Applicable for data backhaul applications
- Full SNMP management plus web-based management
- Higher backplane capacity, 10GE uplinks
- Faster processor for better IGMP performance
- Higher POE power capacity
Description
The Gigabit Ethernet Managed Switches add high-speed ports while offering the management and security features your enterprise network needs. Provides 10/100/1000BASE-T UTP ports and 1G/10G SFP+ ports. Fully Manageable The switch is fully managed, supporting SNMP versions 1, 2c, and 3. The embedded RMON software agents support RMON groups 1 (history), 2 (statistics), 3 (alarms), and 9 (events). The integral webserver enables web-based management via a web browser. This GUI interface enables switch configuration, system dashboard, maintenance, and monitoring. The wide range of management and support features also includes dual image, port mirroring, LLDP, sFlow®, UPnP®, IPv6, SSH, RADIUS, DHCP Client/DHCPv6 Client, SNTP, cable diagnostics, ping, Syslog, and Telnet client with SSH security. Support for VLAN and QoS Support for up to four simultaneous VLANs enables you to segment traffic with port-based, 802.1Q tag-based, or MAC-based VLANs. VoIP traffic is automatically assigned to a voice-specific VLAN to maintain quality. 802.1p Layer 2 quality of service (QoS) enables prioritization of time-sensitive applications such as VoIP and video. Secure You get enterprise-class security features, too. 802.1X port-based network access control authenticates devices connecting to your network. The switch also supports SNMPv3 cryptographic security, SSH, and SSL. Plus, you can set up a guest VLAN that enables visitors to access the Internet without also giving them access to the corporate network. 10-GE Uplinks This switch features 10-GE uplinks that increase backplane capacity. Super-Fast Switch Control Processor The Gigabit Ethernet Managed Switch has a powerful switch control processor that improves IGMP performance. Green The PoE+ Gigabit Managed Switch Eco features IEEE 802.3az energy-efficient Ethernet, which scales down power consumption during periods of low data activity. This feature adds up to energy savings of up to 50%. Cable length detection adjusts signal strength to the cable length, reducing power consumption on shorter cable runs.Specifications
| Network | |
|---|---|
| IGMP proxy | Yes |
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3az |
| VLAN support | Yes |
| Rate limiting | Yes |
| Link aggregation | Yes |
| Virtual LAN features | Voice VLAN |
| Virtual LAN features | |
| VLAN support | Yes |
| Virtual LAN features | Voice VLAN |
| Technical details | |
| Product colour | Black |
| Rack mounting | Yes |
| Management features | |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2+ |
| Ports & interfaces | |
| SFP module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | RJ-45 |
| Data transmission | |
| Jumbo frames | 10240 |
| MAC address table | 32000 entries |
| Switching capacity | 128 Gbit/s |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Forwarding rate | 95.238 Mpps |
| Security | |
| Security algorithms | SNMP, SNMPv2, SNMPv3 |
| IGMP proxy | Yes |
| DHCP features | DHCP relay |
| Design | |
| Product colour | Black |
| Rack mounting | Yes |
| Power | |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 370 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Weight & dimensions | |
| Width | 17.4" (442 mm) |
| Depth | 8.31" (211 mm) |
| Height | 1.73" (44 mm) |
| Weight | 8.38 lbs (3.8 kg) |
