AC1200 Wireless MU-MIMO Gigabit Router, 2.4/5 GHz, 5 RJ-45, 802.11ac/n/a/b/g/n
The Archer A6 creates a reliable and blazing-fast network powered by 802.11ac WiFi technology. The 2.4GHz band delivers
speeds up to 300Mbps for everyday tasks like emailing and web browsing while the 5GHz band delivers speeds up to
867Mbps making it ideal for HD video streaming and lag-free online gaming.
5 High-Performance Antennas for
WiFi Coverage throughout Your Home*
Four external antennas and one internal antenna send WiFi signals to every corner of your home. Stay connected and enjoy fast WiFi whether you are lounging on the sofa or on the balcony. With a powerful chipset, the Archer A6 provides ideal WiFi coverage.
Access Point Mode
Switch to Access Point Mode to share your wired network with other wireless devices.
MU-MIMO
Increase Speed, Throughput, Capacity
MU-MIMO enables the Archer A6 to serve multiple devices simultaneously. Say goodbye to bandwidth congestion and lag as you zip through a more efficient network built for more users and more devices.
Gigabit Connectivity, 10× Faster

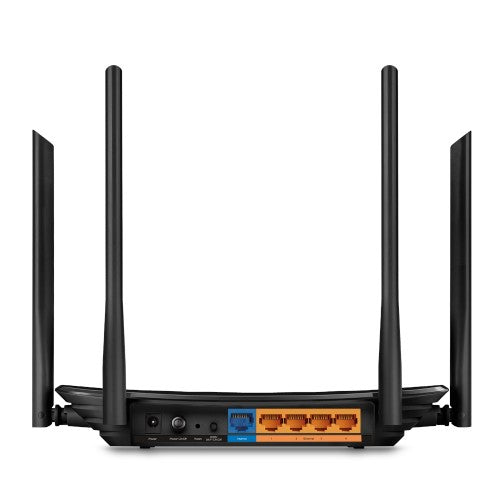

With one Gigabit WAN port and four Gigabit LAN port, speeds can be up to 10× faster than a standard Ethernet
connection. Connect your favorite wired devices to the Archer A6 and get impressed!
Easy Setup and Management with the Tether APP
The free Tether app is available for both Android and iOS devices, making it easy to set up the Archer A6 and manage your network settings.
*Maximum wireless transmission rates are the physical rates derived from IEEE Standard 802.11 specifications. Range and coverage specifications along with the number of connected devices were defined according to test results under normal usage conditions. Actual wireless transmission rate, wireless coverage, and number of connected devices are not guaranteed, and will vary as a result of 1) environmental factors, including building materials, physical objects and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead and 3) client limitations, including rated performance, location, connection quality, and client condition.
**Use of MU-MIMO requires clients to also support MU-MIMO.
TP-Link

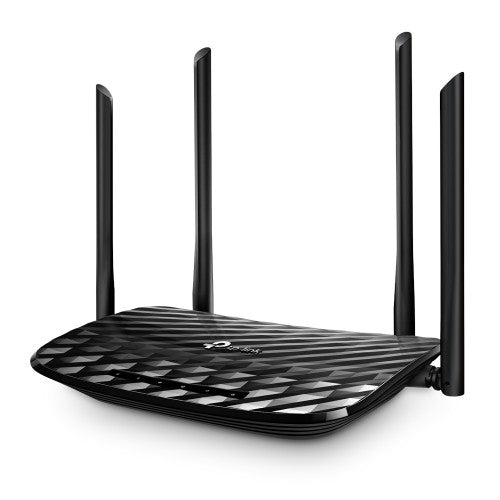

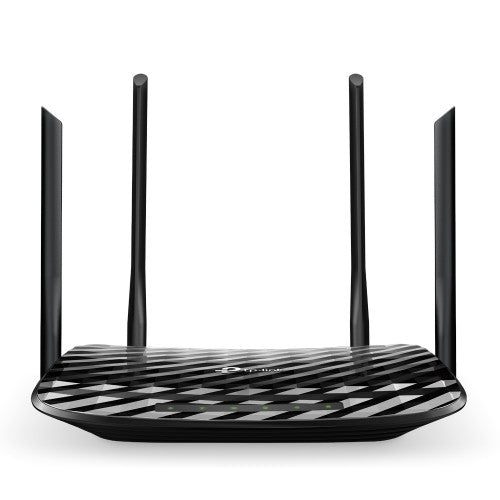

TP-Link AC1200 wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Black
Part number:
ARCHER A6
$46.73
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Supports 802.11ac standard
- Simultaneous 2.4GHz 300 Mbps and 5GHz 867 Mbps connections for 1200 Mbps of bandwidth*
- Four external antennas and one internal antenna provide a stable wireless connection and optimal coverage*
- Easy network management at your fingertips with the TP-Link Tether app
- MU-MIMO achieves 2X efficiency by communicating with up to 2 devices at once**
- Beamforming technology delivers wider wireless coverage
- Supports Access Point mode to create a new WiFi access point
Description
Smooth Entertainment with AC1200 Dual Band WiFiThe Archer A6 creates a reliable and blazing-fast network powered by 802.11ac WiFi technology. The 2.4GHz band delivers
speeds up to 300Mbps for everyday tasks like emailing and web browsing while the 5GHz band delivers speeds up to
867Mbps making it ideal for HD video streaming and lag-free online gaming.
5 High-Performance Antennas for
WiFi Coverage throughout Your Home*
Four external antennas and one internal antenna send WiFi signals to every corner of your home. Stay connected and enjoy fast WiFi whether you are lounging on the sofa or on the balcony. With a powerful chipset, the Archer A6 provides ideal WiFi coverage.
Access Point Mode
Switch to Access Point Mode to share your wired network with other wireless devices.
MU-MIMO
Increase Speed, Throughput, Capacity
MU-MIMO enables the Archer A6 to serve multiple devices simultaneously. Say goodbye to bandwidth congestion and lag as you zip through a more efficient network built for more users and more devices.
Gigabit Connectivity, 10× Faster
With one Gigabit WAN port and four Gigabit LAN port, speeds can be up to 10× faster than a standard Ethernet
connection. Connect your favorite wired devices to the Archer A6 and get impressed!
Easy Setup and Management with the Tether APP
The free Tether app is available for both Android and iOS devices, making it easy to set up the Archer A6 and manage your network settings.
*Maximum wireless transmission rates are the physical rates derived from IEEE Standard 802.11 specifications. Range and coverage specifications along with the number of connected devices were defined according to test results under normal usage conditions. Actual wireless transmission rate, wireless coverage, and number of connected devices are not guaranteed, and will vary as a result of 1) environmental factors, including building materials, physical objects and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead and 3) client limitations, including rated performance, location, connection quality, and client condition.
**Use of MU-MIMO requires clients to also support MU-MIMO.
Specifications
| Ethernet LAN features | |
|---|---|
| Ethernet WAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| DSL features | |
| DSL WAN | No |
| Mobile network | |
| SIM card slot | No |
| Protocols | |
| DMZ support | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Supported network protocols | IPv4, IPv6 |
| DHCP server | Yes |
| DHCP client | Yes |
| Management features | |
| Universal Plug and Play (UPnP) | Yes |
| WPS push button | Yes |
| Web-based management | Yes |
| Reset button | Yes |
| Security | |
| VPN support | OpenVPN，PPTP VPN |
| Security algorithms | 64-bit WEP, 128-bit WEP, WDS, WMM, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Firewall | Yes |
| DoS attack prevention | Yes |
| DMZ support | Yes |
| Stateful Packet Inspection (SPI) | Yes |
| Access Control List (ACL) | Yes |
| Performance | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Memory card slot(s) | No |
| WAN connection | |
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| WAN connection type | RJ-45 |
| Wireless LAN features | |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) | 867 Mbit/s |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Network | |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| VPN support | OpenVPN，PPTP VPN |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Ports & interfaces | |
| USB port | No |
| Ethernet LAN (RJ-45) ports | 5 |
| Memory card slot(s) | No |
| Design | |
| Product type | Tabletop router |
| On/off switch | Yes |
| Product colour | Black |
| Indication light | Yes |
| Software | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Packaging content | |
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Quick installation guide | Yes |
| Antenna | |
| Antenna design | Internal & external |
| Antennas quantity | 5 |
| Transmit power | 30 dBmW |
| Power | |
| Power source type | AC |
| Output voltage | 12 V |
| Output current | 1 A |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| System requirements | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Browser supported | Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 |
| Weight & dimensions | |
| Width | 9.06" (230 mm) |
| Height | 1.38" (35 mm) |
| Depth | 5.67" (144 mm) |
| Packaging data | |
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Quick installation guide | Yes |
