650-2500 RPM, 30 CFM, 2.75 mmH2O, 6 - 25 dBA, 80 mm, 12VDC, 4-Pin, 83 g
Cooler Master

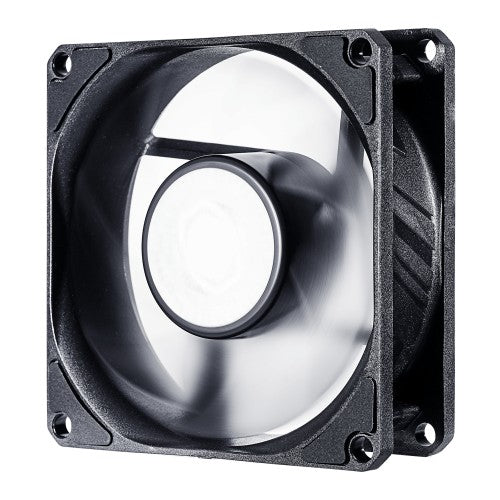

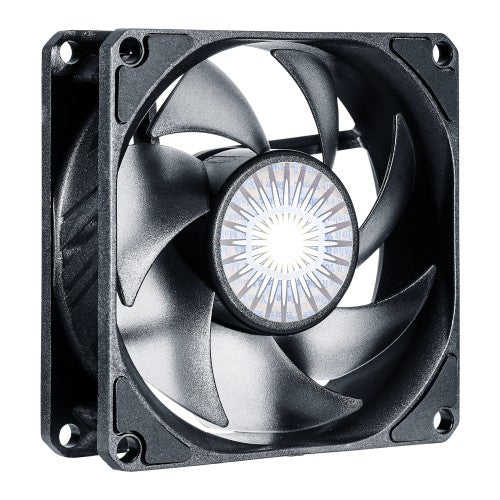

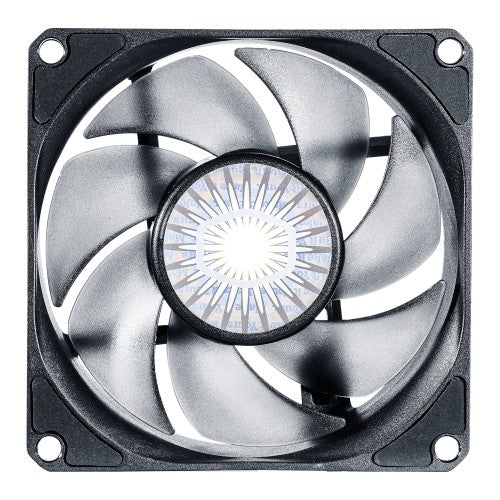

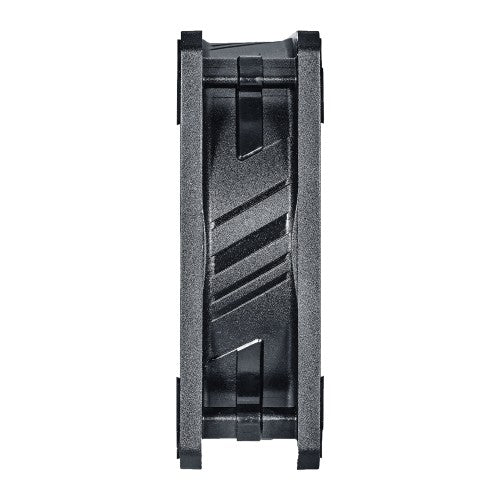

Cooler Master SickleFlow 80 Computer case Fan 3.15" (8 cm) Black
Part number:
MFX-B8NN-25NPK-R1
$7.99
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- 80mm in Size
- 2500 RPM, 30 CFM
- 7-blade Design
- Air Balance Design with Increased Curvature
- Rib-support Frame Structure
- Sealed Bearing Structure
Description
Optimized Flow and Pressure Continuing the SickleFlow 120 series , Cooler Master introduces a new models with brand new upgraded design features for enhanced performance. The new SickleFlow 80 fan blades are created with bigger blades and increased curvature to optimize the air flow and air pressure performance. Strengthen structural frame design with added rib housing for durability. Improved dustproof and oil leakage prevention for beater life expectancy. Improved Frame Durability Enhanced square frame structure with added rib-support for reducing turbulent flow, noise and increasing overall work efficiency. New Air Balance Blade Optimized fan blade design with increased curvature that improves air flow and air pressure. New Bearing Sealant Two-tier sealing mechanism designed to improve dustproof capabilities and prevent lubricant oil leakage for extended life span and performance.Specifications
| Performance | |
|---|---|
| Suitable location | Computer case |
| Fan connector | 4-pin |
| Pulse-width modulation (PWM) support | Yes |
| Rotational speed (min) | 650 RPM |
| Rotational speed (max) | 2500 RPM |
| Bearing type | Rifle bearing |
| Noise level (low speed) | 6 dB |
| Noise level (high speed) | 25 dB |
| Type | Fan |
| Fan diameter | 3.15" (8 cm) |
| Maximum airflow | 30 cfm |
| Maximum air pressure | 2.75 mmH2O |
| Number of fans | 1 fan(s) |
| Fan's mean time to failure (MTTF) | 160000 h |
| Design | |
| Fan connector | 4-pin |
| Number of fans | 1 fan(s) |
| Product colour | Black |
| Technical details | |
| Noise level (low speed) | 6 dB |
| Noise level (high speed) | 25 dB |
| Type | Fan |
| Fan diameter | 3.15" (8 cm) |
| Maximum airflow | 30 cfm |
| Maximum air pressure | 2.75 mmH2O |
| Number of fans | 1 fan(s) |
| Fan connector | 4-pin |
| Ports & interfaces | |
| Fan connector | 4-pin |
| Power | |
| Safety current | 0.18 Ah |
| Rated voltage | 12 V |
| Rated current | 0.11 A |
| Power consumption (typical) | 1.32 W |
| Colour | |
| Product colour | Black |
| Weight & dimensions | |
| Package depth | 4.53" (115 mm) |
| Package width | 1.26" (32 mm) |
| Package height | 6.69" (170 mm) |
| Width | 3.15" (80 mm) |
| Package weight | 4.8 oz (136 g) |
| Depth | 0.984" (25 mm) |
| Height | 3.15" (80 mm) |
| Weight | 2.93 oz (83 g) |
| Packaging data | |
| Package depth | 4.53" (115 mm) |
| Package width | 1.26" (32 mm) |
| Package height | 6.69" (170 mm) |
| Package weight | 4.8 oz (136 g) |
| Other features | |
| Safety current | 0.18 Ah |
| Harmonized System (HS) code | 84733080 |
| Logistics data | |
| Products per master (outer) case | 40 pc(s) |
| Master (outer) case width | 14.2" (360 mm) |
| Master (outer) case length | 15" (380 mm) |
| Master (outer) case height | 10.5" (267 mm) |
