AMD Ryzen Embedded V1500B (2.2GHz), 8GB DDR4, 2.5Gigabit LAN
High performance AMD Ryzen™ processor
The TS-873A is powered by an AMD Ryzen™ V1000 series V1500 quad-core 2.2 GHz processor with up to 64GB RAM (ECC memory is supported*) and features USB 3.2 Gen 2 ports for speeds up to 10 Gb/s. The TS-873A also provides one USB Type-C port for supporting more devices to transfer large media files across devices, providing you with a more efficient workflow.
Transform your network with a wallet-friendly 2.5GbE switch
Upgrading your network shouldn’t break the bank, and 2.5GbE connectivity provides immediately noticeable improvements compared to standard 1GbE. QNAP offers 2.5GbE switches that supports Multi-Gigabit NBASE-T™ and allows you to use existing CAT5e cables to connect multiple computers and NAS, assisting organizations in implementing high-speed, secure and scalable network environments without going over budget.
Switch operating systems for optimal data integrity and reliability
The TS-873A also supports QuTS hero - QNAP’s ZFS-based NAS operating system. Providing end-to-end data integrity, data reduction (inline data deduplication, compression and compaction), and much more, QuTS hero uses additional system resources to ensure an optimal environment for protecting business data.
Obtain performance benefits from M.2 SSD caching
The TS-873A features 2 M.2 NVMe SSD slots for you to enjoy SSD caching or Qtier auto tiering Technology
Improve random data access speeds with an SSD cache
SSD caches accelerate IOPS performance and reduce latency for storage volumes. They are perfect for IOPS-demanding applications (including databases and virtualization) and can significantly improve overall workflows.
Maximize the value of SSDs with Qtier Technology
Qtier™ Technology empowers the TS-873A with auto tiering that helps continuously optimize storage efficiency by automatically moving data between M.2 SSDs, 2.5-inch SSDs, and high-capacity HDDs based on the data's access frequency. Qtier™ 2.0 features IO-awareness that empowers SSD-tiered storage with a cache-like reserved space to handle burst I/O in real time, greatly maximizing the advantages of SSDs.
Upgrade to 10GbE and abundant capability with PCIe expansion
The TS-873A features two PCIe Gen 3 x4 slots that allows for various expansion cards for expanding application potential.
Easy and Secure File Management
File Station allows direct management of files stored on the TS-873A and in the cloud. Users can easily upload files from their PC, drag/drop files between folders, rename/delete files, and configure file/folder permissions to prevent unauthorized access. Microsoft Office Online can also be used to directly view/edit Microsoft Office documents stored on the TS-873A. Confidential/sensitive data can be encrypted to add extra security.
Install a graphics card for GPU-accelerated computing
Graphics cards are optimized for graphical calculations and transformations, but require significantly more power than other hardware. The TS-873A features PCIe slots to support high-profile graphics cards that do not need power cables, including NVIDIA® GeForce® GTX1650 graphics cards to boost performance of applications such as video editing , 4K UHD transcoding, imaging processing in QTS and performance of virtual machines via GPU passthrough.
Build an affordable Fibre Channel SAN environment
Common Fibre Channel Storage Area Networks (SAN) devices are often costly. By installing a QNAP 16Gb Fibre Channel card (QXP-16G2FC 16Gb) in the TS-873A, you can set a Fibre Channel Target using the iSCSI & Fibre Channel app. Moreover, the LUN Masking and Port Binding features provide an additional layer of data security.
High-speed 2.5GbE VM Backup Solution
With Hyper Data Protector, the TS-873A becomes an agentless backup tool for unlimited VMware® vSphere and Microsoft® Hyper-V VM backup. Hyper Data Protector features incremental backup, global deduplication, backup scheduling and recovery compression. With 2.5GbE connectivity, backup and restoration times are greatly reduced, providing a cost-effective solution for disaster recovery.
QNAP Backup & Data Protection Solutions: Complete Apps & Utilities at Your Fingertips
QNAP provides comprehensive solutions for virtually all data protection requirements. Discover an array of apps/utilities to help you back up various sources, including:
Boxafe – Google Workspace (G Suite) /Microsoft 365 SaaS backup
Hyper Data Protector – VMware vSphere/Microsoft Hyper-V VM backup
Hybrid Backup Sync – QNAP NAS/file server/macOS backup
NetBak Replicator – Windows backup
Snapshot – QNAP NAS protection/backupFlexible and economical storage expansion
Flexible and economical storage expansion
QNAP provides easy storage capacity expansion solutions. Here are several ways to expand your TS-873A storage as needed to accommodate data and business growth.
Upgrade RAID Capacity
Hot-swap lower-capacity drives with larger-capacity drives to expand your NAS capacity so it can grow with your business.
Attach Expansion Enclosures
Connect two TR-004 RAID expansion enclosures, or one 8-bay TL-D800S SATA 6 Gb/s JBOD, and use the QTS Storage & Snapshots Manager to easily handle NAS capacity expansion.
Migrate to a New NAS
Install your NAS hard drives into a larger QNAP NAS and retain all your existing data and configurations.
More productivity applications
Qsirch
QNAP’s powerful, Google-like search tool for quickly finding specific images, music, videos, documents, and emails by keywords, color, and more search conditions.
Boxafe
Backup/sync files, emails, calendars and contacts from Google™ Workspace and Microsoft® Office 365® into the TS-873A to safeguard enterprise cloud data.
QuMagie
An AI-powered photo management app, supporting automated photo categorization with AI Albums, iOS® Live Photo display, and powerful search tool for ultimate photo management and sharing solution.
QNAP

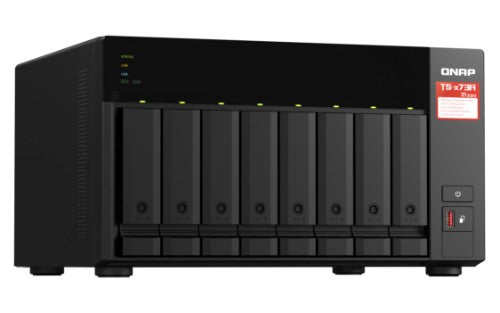

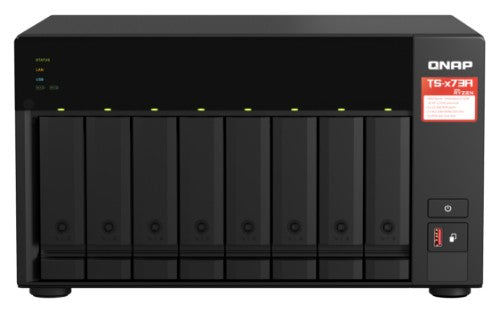

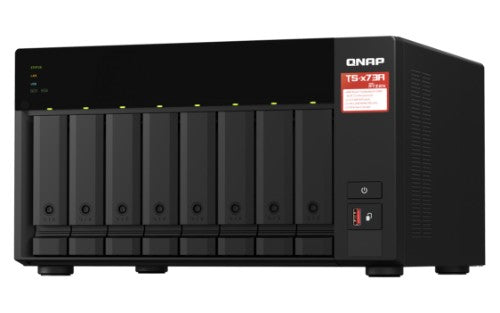

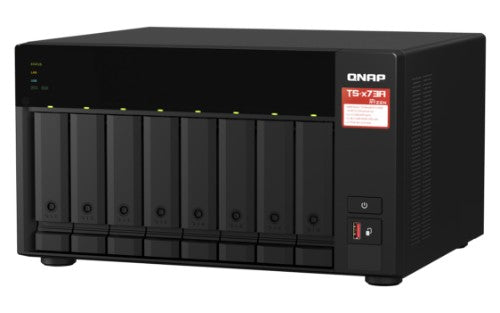

QNAP TS-873A NAS Tower Ryzen Embedded V1500B 8 GB DDR4 0 TB QNAP Turbo System Anthracite
Part number:
TS-873A-8G-US
$1,182.36
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Both 2.5GbE ports are backwards compatible with 1GbE/ 100MbE speeds. Up to 5 Gbps transfer speeds can be achieved by using port trunking
- Add extra functionality with PCIe cards, including 10GbE ports, SSD caching, extra USB 3.2 Gen 2 ports, wireless networking, or Fibre Channel
- Supports entry-level NVIDIA® graphics cards for video processing or GPU-passthrough to VMs
- Features two M.2 PCIe NVMe SSD slots for Qtier Technology and SSD Caching enable constant storage optimization
- Host containerized applications and virtual machines with various operating systems
- Features QTS operating system and supports switching to ZFS-based QuTS hero for greater reliability
Description
Featuring an AMD Ryzen™ V1000 series V1500B quad-core processor that delivers great system performance with up to quad-core / 8 threads and Turbo Core up to 2.2 GHz. The TS-873A features two 2.5GbE RJ45 ports and two PCIe Gen 3 slots for you to flexibly deploy 5GbE/10GbE networks. Two M.2 NVMe SSD slots for Qtier Technology and SSD Caching enable constant storage optimization. The TS-873A supports QTS and QuTS hero, allowing users to flexibly switch operating system based on their requirements.High performance AMD Ryzen™ processor
The TS-873A is powered by an AMD Ryzen™ V1000 series V1500 quad-core 2.2 GHz processor with up to 64GB RAM (ECC memory is supported*) and features USB 3.2 Gen 2 ports for speeds up to 10 Gb/s. The TS-873A also provides one USB Type-C port for supporting more devices to transfer large media files across devices, providing you with a more efficient workflow.
Transform your network with a wallet-friendly 2.5GbE switch
Upgrading your network shouldn’t break the bank, and 2.5GbE connectivity provides immediately noticeable improvements compared to standard 1GbE. QNAP offers 2.5GbE switches that supports Multi-Gigabit NBASE-T™ and allows you to use existing CAT5e cables to connect multiple computers and NAS, assisting organizations in implementing high-speed, secure and scalable network environments without going over budget.
Switch operating systems for optimal data integrity and reliability
The TS-873A also supports QuTS hero - QNAP’s ZFS-based NAS operating system. Providing end-to-end data integrity, data reduction (inline data deduplication, compression and compaction), and much more, QuTS hero uses additional system resources to ensure an optimal environment for protecting business data.
Obtain performance benefits from M.2 SSD caching
The TS-873A features 2 M.2 NVMe SSD slots for you to enjoy SSD caching or Qtier auto tiering Technology
Improve random data access speeds with an SSD cache
SSD caches accelerate IOPS performance and reduce latency for storage volumes. They are perfect for IOPS-demanding applications (including databases and virtualization) and can significantly improve overall workflows.
Maximize the value of SSDs with Qtier Technology
Qtier™ Technology empowers the TS-873A with auto tiering that helps continuously optimize storage efficiency by automatically moving data between M.2 SSDs, 2.5-inch SSDs, and high-capacity HDDs based on the data's access frequency. Qtier™ 2.0 features IO-awareness that empowers SSD-tiered storage with a cache-like reserved space to handle burst I/O in real time, greatly maximizing the advantages of SSDs.
Upgrade to 10GbE and abundant capability with PCIe expansion
The TS-873A features two PCIe Gen 3 x4 slots that allows for various expansion cards for expanding application potential.
Easy and Secure File Management
File Station allows direct management of files stored on the TS-873A and in the cloud. Users can easily upload files from their PC, drag/drop files between folders, rename/delete files, and configure file/folder permissions to prevent unauthorized access. Microsoft Office Online can also be used to directly view/edit Microsoft Office documents stored on the TS-873A. Confidential/sensitive data can be encrypted to add extra security.
Install a graphics card for GPU-accelerated computing
Graphics cards are optimized for graphical calculations and transformations, but require significantly more power than other hardware. The TS-873A features PCIe slots to support high-profile graphics cards that do not need power cables, including NVIDIA® GeForce® GTX1650 graphics cards to boost performance of applications such as video editing , 4K UHD transcoding, imaging processing in QTS and performance of virtual machines via GPU passthrough.
Build an affordable Fibre Channel SAN environment
Common Fibre Channel Storage Area Networks (SAN) devices are often costly. By installing a QNAP 16Gb Fibre Channel card (QXP-16G2FC 16Gb) in the TS-873A, you can set a Fibre Channel Target using the iSCSI & Fibre Channel app. Moreover, the LUN Masking and Port Binding features provide an additional layer of data security.
High-speed 2.5GbE VM Backup Solution
With Hyper Data Protector, the TS-873A becomes an agentless backup tool for unlimited VMware® vSphere and Microsoft® Hyper-V VM backup. Hyper Data Protector features incremental backup, global deduplication, backup scheduling and recovery compression. With 2.5GbE connectivity, backup and restoration times are greatly reduced, providing a cost-effective solution for disaster recovery.
QNAP Backup & Data Protection Solutions: Complete Apps & Utilities at Your Fingertips
QNAP provides comprehensive solutions for virtually all data protection requirements. Discover an array of apps/utilities to help you back up various sources, including:
Boxafe – Google Workspace (G Suite) /Microsoft 365 SaaS backup
Hyper Data Protector – VMware vSphere/Microsoft Hyper-V VM backup
Hybrid Backup Sync – QNAP NAS/file server/macOS backup
NetBak Replicator – Windows backup
Snapshot – QNAP NAS protection/backupFlexible and economical storage expansion
Flexible and economical storage expansion
QNAP provides easy storage capacity expansion solutions. Here are several ways to expand your TS-873A storage as needed to accommodate data and business growth.
Upgrade RAID Capacity
Hot-swap lower-capacity drives with larger-capacity drives to expand your NAS capacity so it can grow with your business.
Attach Expansion Enclosures
Connect two TR-004 RAID expansion enclosures, or one 8-bay TL-D800S SATA 6 Gb/s JBOD, and use the QTS Storage & Snapshots Manager to easily handle NAS capacity expansion.
Migrate to a New NAS
Install your NAS hard drives into a larger QNAP NAS and retain all your existing data and configurations.
More productivity applications
Qsirch
QNAP’s powerful, Google-like search tool for quickly finding specific images, music, videos, documents, and emails by keywords, color, and more search conditions.
Boxafe
Backup/sync files, emails, calendars and contacts from Google™ Workspace and Microsoft® Office 365® into the TS-873A to safeguard enterprise cloud data.
QuMagie
An AI-powered photo management app, supporting automated photo categorization with AI Albums, iOS® Live Photo display, and powerful search tool for ultimate photo management and sharing solution.
Specifications
| Storage | |
|---|---|
| Total installed storage capacity | 0 TB |
| Online RAID migration | Yes |
| Online RAID expansion | Yes |
| Disk roaming | Yes |
| Bad block scan | Yes |
| Storage drives installed | No |
| Installed storage drive type | No |
| Number of storage drives installed | 0 |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 8 |
| Storage drive capacity | 0 GB |
| Hot-swap drive bays | Yes |
| RAID support | Yes |
| Supported file systems | FAT32, HFS+, NTFS, ext3, ext4 |
| RAID levels | 0, 1, 5+S, 5, 6, 6+HS, 10+HS, 10, 50, 60, JBOD |
| Supported storage drive interfaces | M.2, Serial ATA II, Serial ATA III |
| Storage drive sizes supported | 2.5,3.5,M.2 |
| Number of M.2 (M & B) slots | 2 |
| RAID rebuild | Yes |
| Processor | |
| Processor generation | AMD Ryzen Embedded V1000 Series |
| Processor manufacturer | AMD |
| Processor frequency | 2.2 GHz |
| Processor family | Ryzen Embedded |
| Processor model | V1500B |
| Processor cores | 4 |
| Number of processors supported | 1 |
| Memory | |
| Internal memory type | DDR4 |
| Internal memory | 8 GB |
| Maximum RAM supported | 64 GB |
| Memory slots | 2 |
| Flash memory | 5120 MB |
| Memory form factor | SO-DIMM |
| ECC | Yes |
| Network | |
| Load balancing system | Yes |
| Link aggregation | Yes |
| Dynamic DNS (DDNS) | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| Wake-on-LAN ready | Yes |
| Jumbo frames support | Yes |
| iSCSI support | Yes |
| DHCP server | Yes |
| DHCP client | Yes |
| WLAN adapter supported | Yes |
| Ports & interfaces | |
| USB port | Yes |
| PCI Express x4 (Gen 3.x) slots | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| Hard drive | |
| RAID support | Yes |
| Supported file systems | FAT32, HFS+, NTFS, ext3, ext4 |
| RAID levels | 0, 1, 5+S, 5, 6, 6+HS, 10+HS, 10, 50, 60, JBOD |
| Design | |
| Fan diameter 2 | 2.36" (6 cm) |
| Cooling type | Active |
| Fan diameter | 4.72" (12 cm) |
| Cable lock slot type | Kensington |
| Product colour | Anthracite |
| Number of fans | 3 fan(s) |
| LED indicators | HDD, LAN, Power, SSD, Status |
| Chassis type | Tower |
| Cable lock slot | Yes |
| Technical details | |
| Type | NAS |
| Device class | Small & Medium Business |
| Backup function | Yes |
| Backup features | Cloud, USB drive, iSCSI LUN |
| Product colour | Anthracite |
| Number of users | 4096 user(s) |
| Noise level | 23 dB |
| LED indicators | HDD, LAN, Power, SSD, Status |
| Chassis type | Tower |
| Buzzer | Yes |
| Number of fans | 3 fan(s) |
| Performance | |
| Built-in FTP server | Yes |
| System log | No |
| Share folder access right management | Yes |
| Share folder | 512 |
| S.M.A.R.T. support | Yes |
| Hot spare | Yes |
| Browser supported | Apple Safari 7+, Google Chrome, Microsoft Internet Explorer 10+, Mozilla Firefox |
| Backup button | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Built-in BitTorrent client | Yes |
| Type | NAS |
| Device class | Small & Medium Business |
| Backup function | Yes |
| Backup features | Cloud, USB drive, iSCSI LUN |
| On/off switch | Yes |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Mac operating systems supported | Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina |
| Linux operating systems supported | CentOS 7.0, Solaris 10 U4, Solaris 10 U5, Ubuntu 14.04, openSUSE 12.1, openSUSE 12.2 |
| Web-based management | Yes |
| Security algorithms | 256-bit AES, FIPS 140-2, HTTPS, SNMPv2, SNMPv3, SSH |
| Reset button | Yes |
| Operating system version | 4.52 |
| Operating system installed | QNAP Turbo System |
| Number of users | 4096 user(s) |
| Noise level | 23 dB |
| Management protocols | SNMP |
| Buzzer | Yes |
| Access Control List (ACL) | Yes |
| Third-party support | Yes |
| Snapshot | Yes |
| USB copy function | Yes |
| Cooling | |
| Cooling type | Active |
| Fan diameter | 4.72" (12 cm) |
| Number of fans | 3 fan(s) |
| Security | |
| Cable lock slot type | Kensington |
| Security algorithms | 256-bit AES, FIPS 140-2, HTTPS, SNMPv2, SNMPv3, SSH |
| Cable lock slot | Yes |
| Access Control List (ACL) | Yes |
| Software | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Mac operating systems supported | Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina |
| Linux operating systems supported | CentOS 7.0, Solaris 10 U4, Solaris 10 U5, Ubuntu 14.04, openSUSE 12.1, openSUSE 12.2 |
| Operating system version | 4.52 |
| Operating system installed | QNAP Turbo System |
| Management features | |
| On/off switch | Yes |
| Web-based management | Yes |
| Reset button | Yes |
| Management protocols | SNMP |
| Power | |
| Output current | 3.5 A |
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 250 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 54.067 W |
| Power consumption (sleep) | 25.668 W |
| Number of power supply units | 1 |
| Weight & dimensions | |
| Width | 13" (329.3 mm) |
| Depth | 11.1" (280.8 mm) |
| Height | 7.41" (188.2 mm) |
| Weight | 14.9 lbs (6.76 kg) |
| Package weight | 18.5 lbs (8.41 kg) |
| Packaging content | |
| Number of screws | 48 |
| Cables included | AC, LAN (RJ-45) |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Mac operating systems supported | Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina |
| Linux operating systems supported | CentOS 7.0, Solaris 10 U4, Solaris 10 U5, Ubuntu 14.04, openSUSE 12.1, openSUSE 12.2 |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Packaging data | |
| Package weight | 18.5 lbs (8.41 kg) |
| Cables included | AC, LAN (RJ-45) |
