PCI Express 2.0 x1, 2x RS-232, Molex mini
Siig

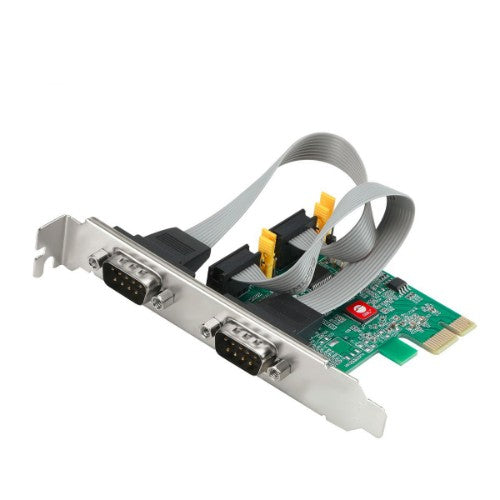

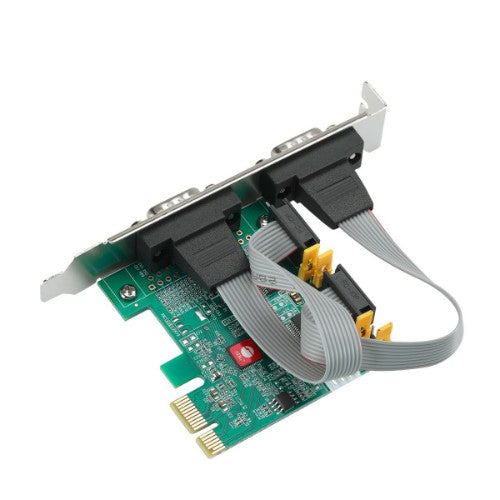

Siig JJ-E20711-S1 interface cards/adapter Internal RS-232
Part number:
JJ-E20711-S1
$36.87
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Adds two 9-pin RS-232 serial ports to PCIe enabled desktop computers
- Two 16C650 UART serial ports support data transfer rate up to 250Kbps
- Compliant with PCI Express 2.0 Gen 1
- Single-lane (x1) PCI Express End-point Controller with PHY integrated
- Full serial modem control with hardware and software flow control
- Supports 5, 6, 7, 8 and 9-bit serial formats
- Supports Even, Odd, None, Space and Mark parity
- On chip 256-byte FIFO buffers in transmit and receive path for each serial port
- Works as either standard RS-232 port or with 5V or 12V power output for devices that require power (such as handheld scanners, table scanners, POS displays and many more). Configurable via jumpers
- Supports PCI Bus Power Management Interface Specification Revision 1.2
- Dual profile design installs into both full-size and low-profile system chassis with the included mounting brackets
- Installs into any PCI Express slot of any lane width
- Perfect solution to connect with POS system, industrial testing and control device, security system, logistic management equipment, printers, scanners, etc
Description
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Output interface | RS-232 |
| Serial interface type | RS-232 |
| Serial ports quantity | 2 |
| Host interface | PCIe |
| Technical details | |
| FIFO (First In, First Out) | 256 B |
| Compliance certificates | CE, RoHS |
| Performance | |
| FIFO (First In, First Out) | 256 B |
| Flow control support | Yes |
| Product colour | Green |
| Certificates | |
| Certification | FCC, CE, RoHS |
| Colour | |
| Product colour | Green |
| Design | |
| Country of origin | China |
| Internal | Yes |
| Product colour | Green |
| Certification | FCC, CE, RoHS |
| Features | |
| FIFO (First In, First Out) | 256 B |
| Flow control support | Yes |
| Power | |
| Power consumption (typical) | 3 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 2.87" (72.8 mm) |
| Depth | 4.72" (119.8 mm) |
| Height | 0.709" (18 mm) |
| Weight | 1.92 oz (54.4 g) |

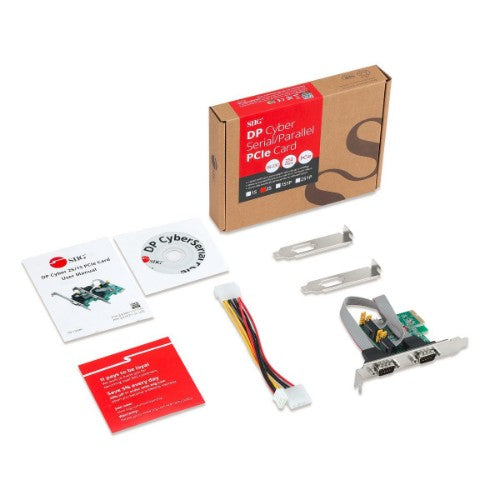

| Packaging data | |
| Mounting brackets included | Yes |
| Manual | Yes |
| Quantity | 1 |
| Packaging content | |
| Mounting brackets included | Yes |
| Manual | Yes |
| Quantity | 1 |
| Other features | |
| Flow control support | Yes |
