1080p@60Hz, H.264, USB 3.0, SDI, 3.5mm
Siig

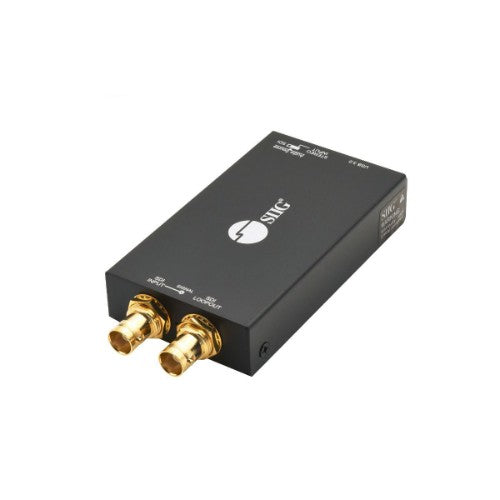

Siig CE-SD0K11-S1 video capturing device USB 3.2 Gen 1 (3.1 Gen 1)
Part number:
CE-SD0K11-S1
$247.04
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Provides a professional way to capture 3G-SDI signals and audio through USB 3.0 connection from your PC system
- Supports 3G-SDI, HD-SDI, and SD-SDI signals, video format auto-detection to ensure plug-n-play operations
- Supports 3G-SDI Input & Output, capture and record in 1080p while simultaneously viewing on 1080p@60Hz
- Great for on-line meeting, training, gamers and live broadcast. Save money on having to buy a splitter for your setup
- Compatible with most 3rd party software such as OBS Studio and AMCap, plus many more software
- Compatible with Windows 7 / 8.1 / 10 and Mac OS 10.15 / 11
- Mixed audio support from Line-in and 3G-SDI and supports 3G-SDI audio embedding
- Support video capture and record up to Full HD resolution up to 1920 x 1080p@60fps
- Recording video format: H.264 (Software Compression)
- Supports 3G-SDI output resolution scaler with audio embedding
Description
Capture SDI video signals in Full HD (1080p60) through your system’s USB 3.0 port, captures and displays the original uncompressed 3G/HD/SD-SDI signals with realistic color renditionSpecifications
| Performance | |
|---|---|
| Country of origin | Taiwan |
| Internal | No |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) |
| Certification | FCC, CE, RoHS |
| Chipset | EJ511 |
| Technical details | |
| Country of origin | Taiwan |
| Internal | No |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) |
| Chipset | EJ511 |
| Compliance certificates | CE, RoHS |
| Ports & interfaces | |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB port | Yes |
| USB connector type | USB Type-A |
| Power | |
| Power supply type | USB |
| Software | |
| Mac compatibility | Yes |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8.1 |
| Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.15 Catalina |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage relative humidity (H-H) | 20 - 90% |
| Certificates | |
| Certification | FCC, CE, RoHS |
| Weight & dimensions | |
| Width | 2.18" (55.3 mm) |
| Depth | 4.86" (123.4 mm) |
| Height | 0.787" (20 mm) |
| Weight | 5.92 oz (167.8 g) |
| Packaging data | |
| Package type | Blister |
| Package width | 9.06" (230.1 mm) |
| Package height | 1.61" (40.8 mm) |
| Package weight | 9.92 oz (281.2 g) |
| Package depth | 3.74" (94.9 mm) |

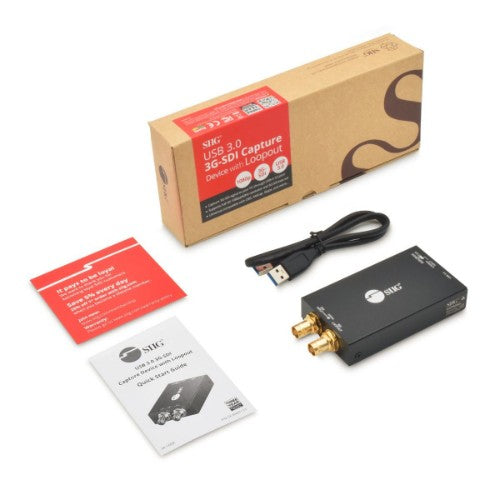

| Packaging content | |
| Quick installation guide | Yes |
| Quantity | 1 |
| Cables included | USB Type-A |
| Logistics data | |
| Country of origin | Taiwan |
