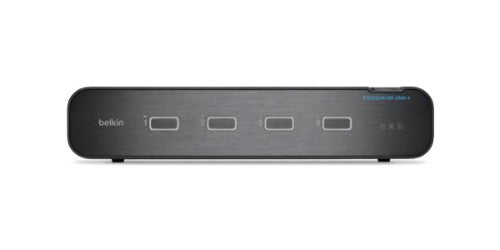

Universal Desktop SKVM, 4 port single head, USB, audio, DisplayPort, HDMI, 4K@60hz

Description

Created to deliver a streamlined user experience when working across security enclaves, Belkin's Universal 2nd Gen Secure KVM switches are designed to meet the latest in Common Criteria and NIAP Protection Profile for Peripheral Switching Devices version 4.0 requirements. Compatible with the optional Belkin Secure KVM Remote Control with Integrated Keyboard, the Universal 2nd Gen Secure KVMs elevate the user experience while vastly improving enclave awareness and minimizing operator errors. The keyboard combined with a variety of mounting options from Belkin helps declutter the desk without jeopardizing operator control. Optical data diodes and embedded peripheral emulation allow operators to safely share peripherals across multiple security enclaves without exposing potential vectors for attack. Innovative video combo connectors combined with auto-sensing and internal converters make the Universal 2nd Gen Secure KVM series compatible with modern and legacy systems, eliminating the need for external converters and their inherent cost and compatibility problems. Always on, active anti-tamper and some of the most advanced protections against ultrasonic audio attacks round out the Universal 2nd Gen Secure KVMs. US-manufactured and TAA-compliant, these secure KVM series are ideal for use in IT environments that demand rigorous cybersecurity provisions?including government, military, and healthcare applications.

Specifications

Ports & interfaces

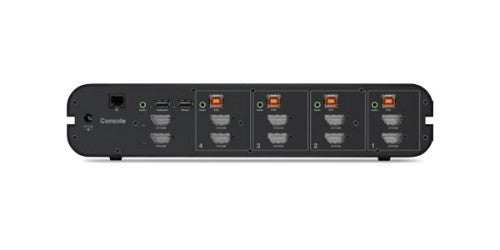

Console ports	3.5mm headphone, DisplayPort, HDMI, RJ–45, USB A
USB connector type	USB Type-B
DisplayPorts quantity	2
DisplayPort version	1.2
HDMI version	2.0
Number of computers controlled	4
Keyboard port type	USB
Mouse port type	USB
Video port type	HDMI/DisplayPort
Audio connections	Yes
HDMI ports quantity	2
DC-in jack	Yes
Performance
HD type	4K Ultra HD
Video bandwidth	60 Hz
Maximum resolution	3840 x 2160 pixels
Technical details
Product colour	Black
Rack mounting	Yes
Design
Product colour	Black
Rack mounting	Yes
Certification	FCC Class B UL CE RoHS ICES RCM
Housing material	Aluminum, Metal
Power
Input current	2.5 A
Power source	AC
External power adapter	Yes
Input voltage	100 - 240, 12 V
Video
HD type	4K Ultra HD
Video bandwidth	60 Hz
Maximum resolution	3840 x 2160 pixels
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	12.5" (317.5 mm)
Depth	6.4" (162.6 mm)
Height	3.6" (91.4 mm)
Weight	4.85 lbs (2.2 kg)
Packaging content
Cables included	AC
Manual	Yes
AC adapter included	Yes
Certificates
Certification	FCC Class B UL CE RoHS ICES RCM
Logistics data
Harmonized System (HS) code	85176200
