36 Gbit/s, 8xRJ-45, 2xSFP, 8K MAC, 100-240V, 50/60Hz, 440x200x44mm, 3.2kg
- 8 x Gigabit PoE++ ports (up to 95W)
- 8 x Gigabit PoE+ ports (up to 30W)
- 2 x Gigabit SFP Slots
- 470W PoE power budget
- 36Gbps switching capacity
- Internal power supply
- Fanless design for silent operation
- Sturdy 1U 19” rack mountable metal housing
Trendnet

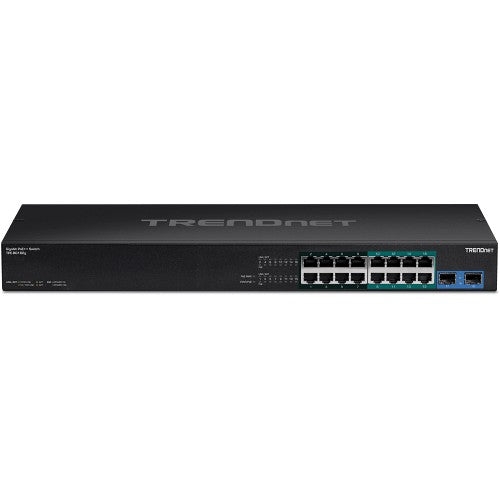

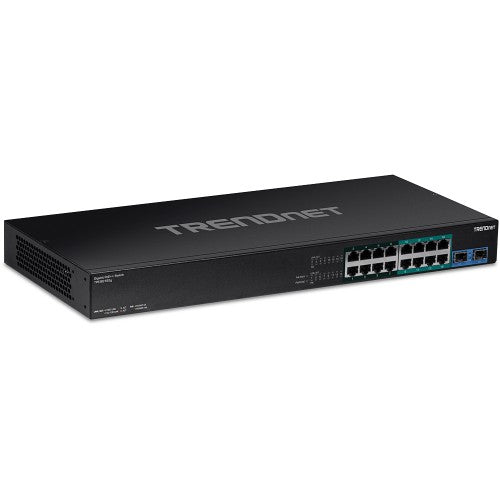

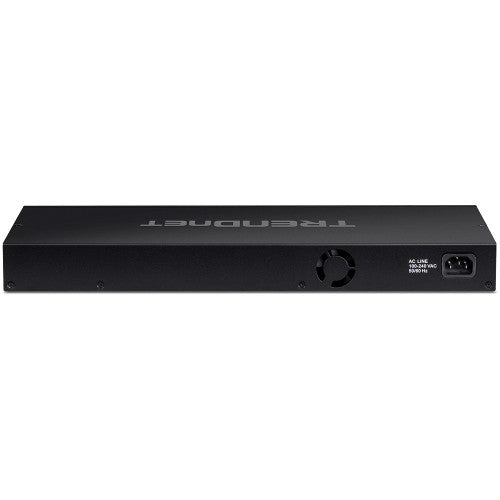

Trendnet TPE-BG182G network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Part number:
TPE-BG182G
Sale price
$472.69
Regular price
$576.95
Save
$104.26
18%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- 8 x Gigabit PoE++ ports (up to 95W)
- 8 x Gigabit PoE+ ports (up to 30W)
- 2 x Gigabit SFP Slots
- 470W PoE power budget
- 36Gbps switching capacity
- Internal power supply
- Fanless design for silent operation
- Sturdy 1U 19” rack mountable metal housing
Description
18-Port Gigabit PoE++ Switch- 8 x Gigabit PoE++ ports (up to 95W)
- 8 x Gigabit PoE+ ports (up to 30W)
- 2 x Gigabit SFP Slots
- 470W PoE power budget
- 36Gbps switching capacity
- Internal power supply
- Fanless design for silent operation
- Sturdy 1U 19” rack mountable metal housing
Specifications
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
| SFP module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Network | |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| 10G support | No |
| Half duplex | Yes |
| Data transmission | |
| Jumbo frames | 9000 |
| MAC address table | 8000 entries |
| Switching capacity | 36 Gbit/s |
| Jumbo frames support | Yes |
| Forwarding rate | 17.8 Mpps |
| Design | |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Rack mounting | Yes |
| Certification | CE, FCC, ETL |
| Performance | |
| Mean time between failures (MTBF) | 323068 h |
| Harmonized System (HS) code | 85176990 |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 95 W |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 440 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Width | 17.3" (440 mm) |
| Depth | 7.87" (200 mm) |
| Height | 1.73" (44 mm) |
| Weight | 7.05 lbs (3.2 kg) |
| Packaging content | |
| Rack mount kit | Yes |
| Quick start guide | Yes |
| Cables included | AC |
| Technical details | |
| Form factor | 1U |
| Product colour | Black |
| Mean time between failures (MTBF) | 323068 h |
| Rack mounting | Yes |
| Certificates | |
| Certification | CE, FCC, ETL |
| Indication | |
| LED indicators | Yes |
| Packaging data | |
| Rack mount kit | Yes |
| Quick start guide | Yes |
| Cables included | AC |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
