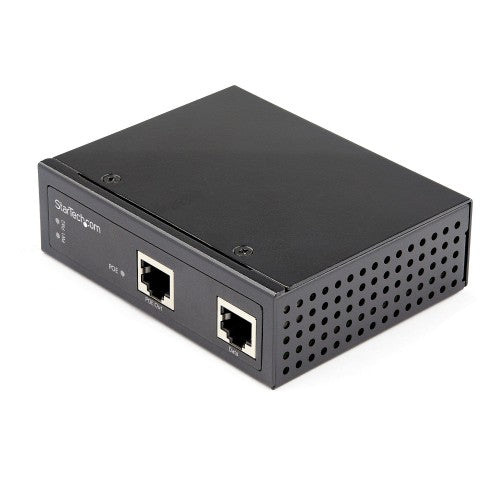

StarTech.com Industrial Gigabit PoE Injector - High Speed/High Power 90W - 802.3bt PoE++ 52V-56VDC DIN Rail UPoE/Ultra Power Over Ethernet Injector Adapter -40C to +75C Rugged (POEINJ1G90W)
This Gigabit Power over Ethernet (PoE+) injector supplies power and data connectivity to a Gigabit PoE-compliant device using a standard Ethernet cable.
Flexible Configurations for a Variety of Applications

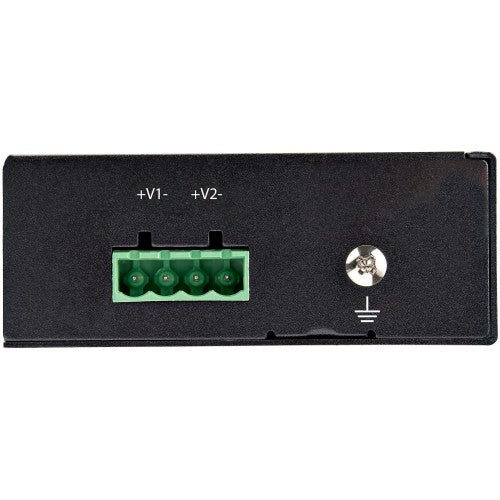

Compatible with IEEE 802.3bt and most previous 90W proprietary PoE (Ethernet) standards, including Cisco uPoE, Bosch, and AXIS. One product can cover multiple use requirements to improve standardization and deployment and dual power terminal block inputs provide redundancy for critical applications.
90 Watt Power Budget
As many typical PoE-enabled switches max out at 30W a high 90W power budget is perfect for demanding Type 3 and Type 4 PoE applications like tilt and pan cameras and high power IEEE 802.11ax wireless access points.
Designed for Harsh Environments
Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.
• Vibration: EN 60068-2-6
• Shock: EN 60068-2-27
• Free-fall: EN 60068-2-32
500,000+ hours MTBF rating using Telcordia/Bellcore at 50C for long-term reliability.
The StarTech.com Advantage
StarTech.com
StarTech.com POEINJ1G90W network extender Network repeater Black 10, 100, 1000 Mbit/s
Part number:
POEINJ1G90W
$214.77
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- WIDE STANDARD COMPATIBILITY: High speed Industrial Gigabit PoE Injector compatible with IEEE 802.3bt (PoE++) and previous 90W proprietary POE standards including Cisco uPoE, Bosch & AXIS
- 90W POWER BUDGET: Provides up to 90W of auto-negotiated power output for Type 3 and Type 4 PoE/Ultra/UPoE applications like tilt and pan cameras and high power IEEE 802.11ax wireless access points
- TECH SPECS: 1 Gbps; 52V-56VDC Power Input; IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt 90W max, uPoE, 10/100/1000 Mbps Auto Negotiation, DIN/Wall Mountable, Redundant Power Input
- ROBUST DESIGN: Industrial Power over Ethernet Injector w/MTBF of 500,000+hrs @ 50C; Vibration, shock & free fall rated; Rugged IP-30 aluminum housing; Hardened operating temp of -40C to 75C
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this TAA compliant PoE Injector is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance
Description
Rugged PoE Injector | 90 Watts Max | IP-30 Aluminum Housing | 52V-56V DCThis Gigabit Power over Ethernet (PoE+) injector supplies power and data connectivity to a Gigabit PoE-compliant device using a standard Ethernet cable.
Flexible Configurations for a Variety of Applications
Compatible with IEEE 802.3bt and most previous 90W proprietary PoE (Ethernet) standards, including Cisco uPoE, Bosch, and AXIS. One product can cover multiple use requirements to improve standardization and deployment and dual power terminal block inputs provide redundancy for critical applications.
90 Watt Power Budget
As many typical PoE-enabled switches max out at 30W a high 90W power budget is perfect for demanding Type 3 and Type 4 PoE applications like tilt and pan cameras and high power IEEE 802.11ax wireless access points.
Designed for Harsh Environments
Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.
• Vibration: EN 60068-2-6
• Shock: EN 60068-2-27
• Free-fall: EN 60068-2-32
500,000+ hours MTBF rating using Telcordia/Bellcore at 50C for long-term reliability.
The StarTech.com Advantage
Specifications
| Performance | |
|---|---|
| Jumbo frames support | Yes |
| Duplex system | Full |
| International Protection (IP) code | IP30 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Type | Network repeater |
| Maximum transfer distance | 3937" (100 m) |
| Power over Ethernet (PoE) | Yes |
| Data transfer rate | 1000 Mbit/s |
| Chipset | Microsemi PD69204 |
| Mean time between failures (MTBF) | 540891 h |
| Auto MDIX IEEE | Yes |
| Auto-negotiation | Yes |
| Technical details | |
| Jumbo frames support | Yes |
| Duplex system | Full |
| International Protection (IP) code | IP30 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| LED indicators | Yes |
| Type | Network repeater |
| Maximum transfer distance | 3937" (100 m) |
| Power over Ethernet (PoE) | Yes |
| Data transfer rate | 1000 Mbit/s |
| Chipset | Microsemi PD69204 |
| Auto MDIX IEEE | Yes |
| Auto-negotiation | Yes |
| Harmonized System (HS) code | 85176990 |
| Compliance certificates | CE, RoHS |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u |
| Ports & interfaces | |
| Power over Ethernet (PoE) ports quantity | 2 |
| Terminal block port | Yes |
| Design | |
| Housing material | Aluminum |
| LED indicators | Yes |
| Certification | CE, FCC, UL |
| Product colour | Black |
| Power | |
| Power plug type | Type N |
| Power over Ethernet (PoE) voltage range | 48 - 56 V |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 90 W |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 1.26" (32 mm) |
| Depth | 3.23" (82 mm) |
| Height | 4.09" (104 mm) |
| Weight | 6.14 oz (174 g) |
| Colour | |
| Product colour | Black |
| Endurance | |
| Mean time between failures (MTBF) | 540891 h |
| Certificates | |
| Certification | CE, FCC, UL |
| Management features | |
| Supported network protocols (IPv4) | CSMA/CD |

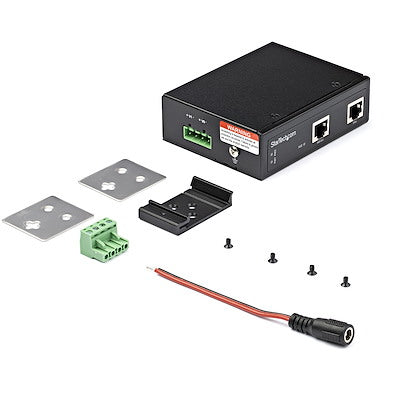

| Packaging content | |
| Quick start guide | Yes |
| Packaging data | |
| Package width | 8.31" (211 mm) |
| Package depth | 6.38" (162 mm) |
| Package height | 2.52" (64 mm) |
| Package weight | 14.7 oz (416 g) |
| Logistics data | |
| Master (outer) case width | 14" (355 mm) |
| Master (outer) case length | 13.6" (345 mm) |
| Master (outer) case height | 8.86" (225 mm) |
| Products per master (outer) case | 10 pc(s) |
| Harmonized System (HS) code | 85176990 |
