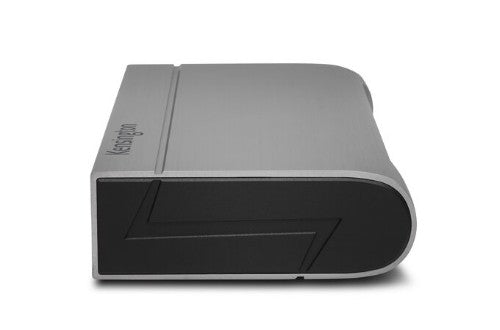

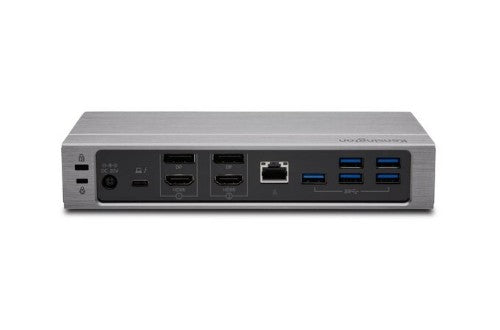

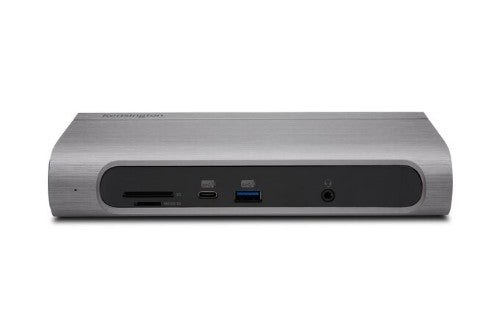

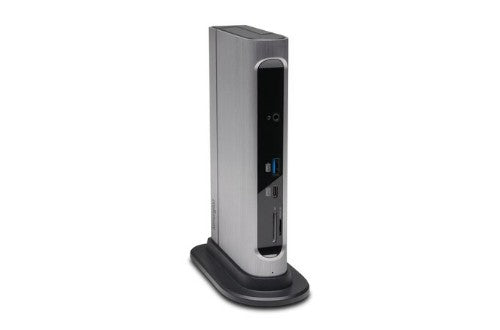

Kensington SD5600T Thunderbolt™ 3 and USB-C Dual 4K Hybrid Docking Station - 100W PD – Win/Mac, Wired, Thunderbolt 3, 100 W, 3.5 mm, 10,100,1000 Mbit/s, Black, Silver
Kensington
Kensington SD5600T Thunderbolt™ 3 and USB-C Dual 4K Hybrid Docking Station - 100W PD – Win/Mac
Part number:
K34009NA
Sale price
$306.80
Regular price
$322.80
Save
$16.00
5%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Best for: Thunderbolt 3 and USB-C laptops and monitors that support up to dual 4K
- Connection technology: Thunderbolt 3 and USB-C (cross platform compatibility)
- Power Delivery: Supports USB-C PD 3.0 up to 100W (96W certified)
- Compatibility: Windows 10 or above, macOS 10.14 or above
- No. of monitors supported: 2
- Video ports: 2 x HDMI v2.0 and 2 x DisplayPort 1.2
- Maximum resolution supported: Thunderbolt 3 – single or dual monitors: 4K (3840 x 2160 @ 60Hz) // USB-C Alt Mode HBR3 – single monitor: 4K @ 60Hz or dual monitors: 1440p @ 60Hz // USB-C Alt Mode HBR2 – single monitor: 4K @ 30Hz or dual monitors: 1080p @ 60Hz
- Plug & play: Plug & play installation, though installation of Kensington DockWorks™ software is recommended for the best connection, performance and security from your Kensington universal docking station
- System requirements: Compatible with laptops equipped with Thunderbolt 3 and USB-C ports supporting Alt Mode. Supports up to 40Gbps total bandwidth for Thunderbolt 3 laptops, and up to 10Gbps for USB-C laptops
- Warranty: 3 Years
- Original Apple M1 - While this docking station will work with the original M1 MacBook, only a single video output is supported. For multi-monitor support on your original M1 MacBook, see our Hybrid USB-C DisplayLink docking stations (ex: SD4700P, SD4750P, SD4780P, SD4900P, etc.) or USB-A DisplayLink adapters (DisplayPort K33989, HDMI K33988, DVI-I K33974). NOTE: Newer Apple devices (M1 Max and M1 Pro, etc.) are not impacted and support multiple monitors without any issues on Thunderbolt docking stations
- Optimised for your Windows 11 docking station needs, including support for Snap Layouts and Snap Groups
Description
Kensington SD5600T Thunderbolt™ 3 and USB-C Dual 4K Hybrid Docking Station - 100W PD – Win/Mac. Connectivity technology: Wired, Host interface: Thunderbolt 3, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product color: Black, Silver, Compatible memory cards: MicroSD (TransFlash), SD, Data transfer rate: 40 Gbit/s. Power source type: DC, AC input voltage: 100 - 240 V, Input current: 1.8 A. Width: 7.76" (197 mm), Depth: 4.09" (104 mm), Height: 1.45" (36.8 mm)Specifications
| Ports & interfaces | |
|---|---|
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Host interface | Thunderbolt 3 |
| Ethernet LAN (RJ-45) ports | 1 |
| Audio output | 3.5 mm |
| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 2 |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| USB Power Delivery | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| DisplayPort version | 1.2 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| Country of origin | Thailand |
| Product colour | Black, Silver |
| Card reader integrated | Yes |
| Brand compatibility | Universal |
| Cable lock slot | Yes |
| Plug and Play | Yes |
| Data transfer rate | 40 Gbit/s |
| Compatible memory cards | MicroSD (TransFlash), SD |
| Certification | FCC, IC, CE, RCM, VCCI, CB, RoHS, ACCO RSL |
| Cable lock slot type | Kensington |
| HD type | 4K Ultra HD |
| VESA mounting | Yes |
| Housing material | Acrylonitrile butadiene styrene (ABS), Aluminum, Metal, Polycarbonate (PC) |
| Technical details | |
| Product colour | Black, Silver |
| Brand compatibility | Universal |
| Cable lock slot | Yes |
| Plug and Play | Yes |
| Data transfer rate | 40 Gbit/s |
| User guide | Yes |
| Storage | |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), SD |
| Power | |
| Power source type | DC |
| Input current | 1.8 A |
| Power consumption (max) | 170 W |
| AC input voltage | 100 - 240 V |
| Output voltage | 20 V |
| Output current | 8.5 A |
| Software | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -18 - 60 °C |
| Weight & dimensions | |
| Weight | 29.5 oz (835 g) |
| Width | 7.76" (197 mm) |
| Depth | 4.09" (104 mm) |
| Height | 1.45" (36.8 mm) |
| Package weight | 3.84 lbs (1.74 kg) |
| Package width | 9.96" (253 mm) |
| Package depth | 5.98" (152 mm) |
| Package height | 3.58" (91 mm) |
| Design | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Country of origin | Thailand |
| Product colour | Black, Silver |
| Cable lock slot | Yes |
| Certification | FCC, IC, CE, RCM, VCCI, CB, RoHS, ACCO RSL |
| Cable lock slot type | Kensington |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package weight | 3.84 lbs (1.74 kg) |
| Package width | 9.96" (253 mm) |
| Package depth | 5.98" (152 mm) |
| Package height | 3.58" (91 mm) |
| Packaging content | |
| Stand included | Yes |
| User guide | Yes |
| AC adapter included | Yes |
| Warranty card | Yes |
| Quantity per pack | 1 pc(s) |
| Certificates | |
| Certification | FCC, IC, CE, RCM, VCCI, CB, RoHS, ACCO RSL |
