8xRJ-45, Fast Ethernet, 5-30V, 1.5W, 101x28x105mm, 134g
Light Industrial/Commercial Ethernet 8 Port unmanaged switch. Galvanically Isolated Ports. Power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications. Wall mountable using mounting screw holes, optional DIN Rail mount accessory available (see MK-048).
Brainboxes

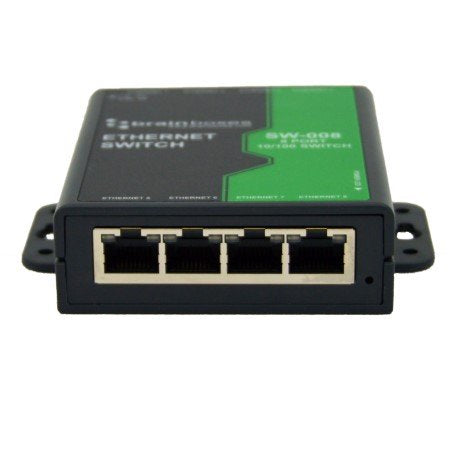

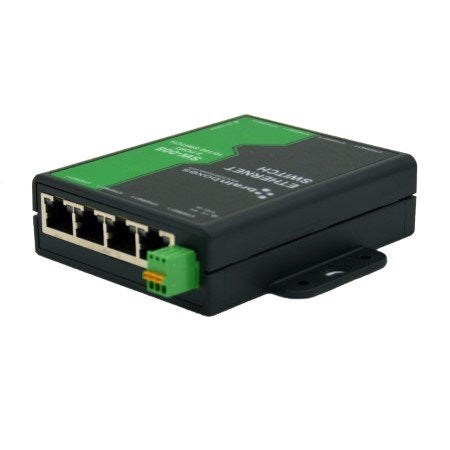

Brainboxes SW-008 network switch Unmanaged Fast Ethernet (10/100) Black, Green
Part number:
SW-008
Sale price
$72.02
Regular price
$175.30
Save
$103.28
59%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- 8 Port Ethernet Switch
- Wide Power Input: +5V to +30V DC
- Wall Mountable, or DIN rail mountable with optional accessory
- 10°C to +60°C / -14°F to +140°F operating temperature
- No software required
Description
DescriptionLight Industrial/Commercial Ethernet 8 Port unmanaged switch. Galvanically Isolated Ports. Power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications. Wall mountable using mounting screw holes, optional DIN Rail mount accessory available (see MK-048).
Specifications
| Technical details | |
|---|---|
| Product colour | Black, Green |
| Housing material | Polyamide |
| Management features | |
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Network | |
| Auto-sensing | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Auto MDI/MDI-X | Yes |
| Certificates | |
| Certification | Microsoft Certified Gold Partner, WEEE, RoHS, AEO (C-TPAT), CE |
| Design | |
| Wall mountable | Yes |
| International Protection (IP) code | IP30 |
| DIN rail mounting | Yes |
| Product colour | Black, Green |
| LED indicators | Yes |
| Housing material | Polyamide |
| Certification | Microsoft Certified Gold Partner, WEEE, RoHS, AEO (C-TPAT), CE |
| Indication | |
| LED indicators | Yes |
| Power | |
| Power consumption (max) | 1.5 W |
| Operational conditions | |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 3.98" (101 mm) |
| Depth | 1.1" (28 mm) |
| Height | 4.13" (105 mm) |
| Weight | 4.73 oz (134 g) |
| Packaging data | |
| Quick start guide | Yes |
| Package width | 6.3" (160 mm) |
| Package depth | 5.31" (135 mm) |
| Package height | 1.93" (49 mm) |
| Package weight | 7.97 oz (226 g) |
| Other features | |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Packaging content | |
| Quick start guide | Yes |
