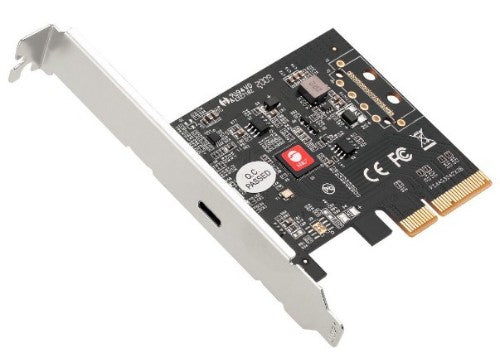

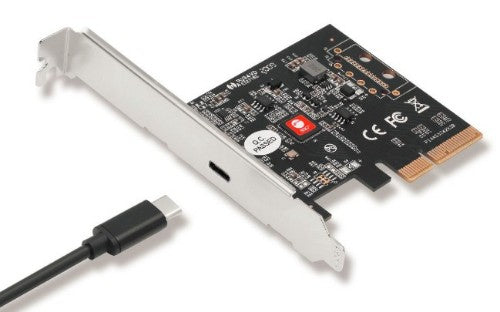

Single Type-C USB 3.2 Gen 2x2 20Gbps PCIe Card
Siig
Siig JU-P20D11-S1 interface cards/adapter Internal USB 3.2 Gen 2 (3.1 Gen 2)
Part number:
JU-P20D11-S1
$57.61
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Compatible with USB 3.2 Gen 2x2 specification - supports multi-lane operation allowing for 2 lanes of 10Gbps to achieve 20Gbps data rate. Note: Both hosts and devices must support the new USB 3.2 standard to achieve the 20Gbps transfer speed
- Compliant with Intel’s eXtensible Host Controller Interface (xHCI) specification v1.1
- Compliant with UASP Revision 1.0
- Supports plug-n-play, hot-swapping, and backward compatible with USB 3.1 /3.0 / 2.0 / 1.1 devices
- USB-C provides up to 3A power output to support the power required of connected devices
- Supports the following data transfer rates - 1.5Mbps / 12Mbps / 480Mbps / 5Gbps / 10Gbps / 20Gbps
- Hot-swapping feature allows you to connect / disconnect devices without powering down the system

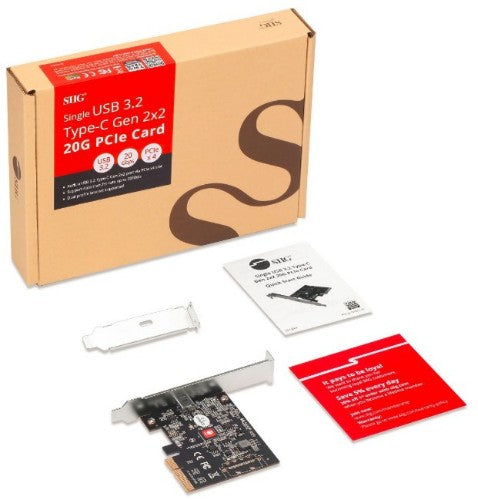

- Dual-profile design allows installing into either full height or low-profile system chassis with the included brackets
- USB-C port features over-current protection to protect your device against power surges
Description
Single USB 3.2 Gen 2x2 port allows for up 20Gbps data transfer rate.Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Output interface | USB 3.2 Gen 2 (3.1 Gen 2) |
| Host interface | PCIe |
| Expansion card standard | PCIe 3.0 |
| Technical details | |
| Hot-Plug support | Yes |
| Purpose | PC |
| Data transfer rate (max) | 20 Gbit/s |
| Compliance certificates | RoHS |
| Performance | |
| Hot-swap | Yes |
| Hot-Plug support | Yes |
| Purpose | PC |
| Data transfer rate (max) | 20 Gbit/s |
| Product colour | Black, Silver |
| Certificates | |
| Certification | FCC, CE |
| Colour | |
| Product colour | Black, Silver |
| Design | |
| Hot-swap | Yes |
| Hot-Plug support | Yes |
| Purpose | PC |
| Internal | Yes |
| Product colour | Black, Silver |
| Certification | FCC, CE |
| Cooling type | Passive |
| Features | |
| Data transfer rate (max) | 20 Gbit/s |
| Power | |
| Power consumption (typical) | 15 W |
| Output current | 3 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 10 x64, Windows 8.1, Windows 8.1 x64 |
| Server operating systems supported | Windows Server 2012, Windows Server 2012 R2, Windows Server 2012 R2 x64, Windows Server 2012 x64, Windows Server 2013, Windows Server 2016, Windows Server 2016 x64, Windows Server 2019 |
| Weight & dimensions | |
| Width | 0.75" (19.1 mm) |
| Depth | 4.72" (119.9 mm) |
| Height | 3.19" (81 mm) |
| Weight | 1.44 oz (40.8 g) |
| Packaging data | |
| Package type | Box |
| Quantity | 1 |
| Packaging content | |
| Package type | Box |
| Quantity | 1 |
