PTZ, 1/2.5 Exmor CMOS, 20X, 8.57 MP, FHD, EasyIP, HDMI, RS-232, 12 VDC, PoE+, White
Vaddio

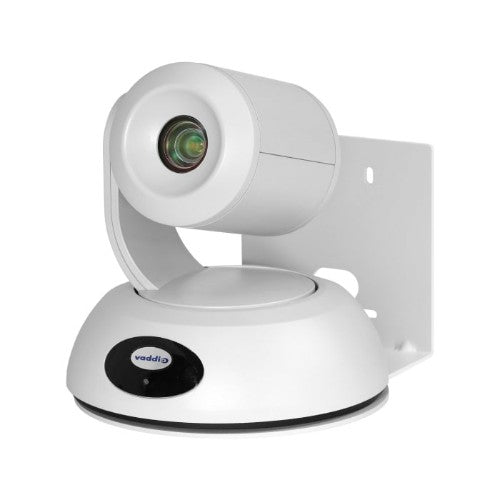

Vaddio EasyIP 20 Camera 8.57 MP White 1920 x 1080 pixels 60 fps CMOS
Part number:
999-30230-000W
Sale price
$3,031.64
Regular price
$3,796.67
Save
$765.03
20%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- 20x Optical zoom
- 1/2.5-type Exmor R CMOS sensor
- 70.2° horizontal field of view
- One EasyIP (Network PoE+) and one HDMI video output
- Supports up to two EasyIP Mixers or Decoders simultaneously
Description
The EasyIP 20 Camera brings professional AV quality performance to the EasyIP Ecosystem, an AV-over-IP solution for lecture capture, remote learning and videoconferencing in large meeting rooms, lecture halls, and houses of worship. It delivers 1080p/60 resolution feeds to EasyIP endpoints and connects to a 1 GB PoE+ switch – eliminating the need for costly USB extensions. A local HDMI output allows for easy IMAG (image magnification).Specifications
| Camera | |
|---|---|
| Megapixel (approx.) | 8.57 MP |
| Sensor type | CMOS |
| Optical zoom | 20x |
| Minimum illumination | 100 lx |
| White balance | ATW, Auto, Manual, One push, Outdoor |
| Focus adjustment | Auto/Manual |
| Signal-to-Noise Ratio (SNR) | 60 dB |
| Auto focusing (AF) modes | Auto, Manual, One Push Trigger |
| Aperture number of steps | 16 |
| Gain control type | Auto/Manual |
| Effective sensor resolution | 8.51 MP |
| Horizontal field of view (wide) | 74° |
| Horizontal field of view (tele) | 7.6° |
| PTZ control | Yes |
| Minimum working distance (wide) | 9.02" (22.9 cm) |
| Maximum working distance (tele) | 31.5" (80 cm) |
| Number of camera presets | 16 |
| Wide Dynamic Range (WDR) | Yes |
| Video | |
| Maximum video resolution | 1920 x 1080 pixels |
| Maximum frame rate | 60 fps |
| Resolution at capture speed | 1920x1080@25fps, 1920x1080@29.97fps, 1920x1080@59.94fps, 1920x1080@60fps |
| Supported video modes | 720p, 1080i, 1080p |
| HD type | Full HD |
| Design | |
| Product colour | White |
| Tilt angle range | -30 - 90° |
| Pan range | -150 - 150° |
| Web-based management | Yes |
| Tilt speed (max) | 90 °/sec |
| Pan speed (max) | 0.35 °/sec |
| Ports & interfaces | |
| HDMI ports quantity | 1 |
| Power over Ethernet (PoE) ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Power source type | PoE |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | 20 - 80 °C |
| Technical details | |
| Harmonized System (HS) code | 85258900 |
| Audio | |
| Noise reduction | Yes |
| Performance | |
| Remote control function | Yes |
| Remote control type | RF Wireless |
| Logistics data | |
| Harmonized System (HS) code | 85258900 |
| Packaging data | |
| Package width | 7.05" (179.1 mm) |
| Package depth | 6.76" (171.6 mm) |
| Package height | 6.94" (176.3 mm) |
| Package weight | 4.85 lbs (2.2 kg) |
