Unmanaged, 5x RJ-45, PoE
Axis

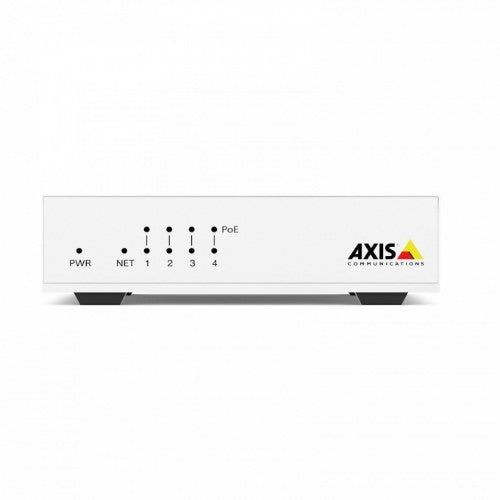

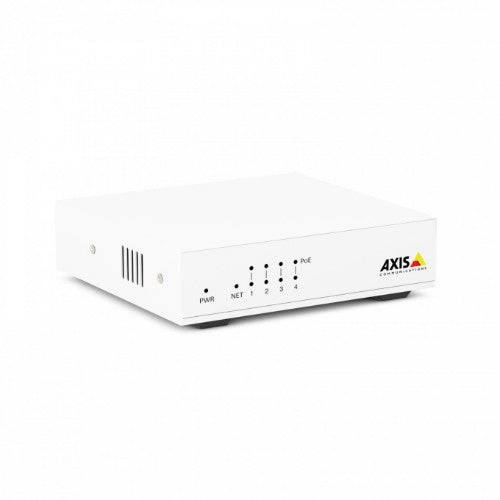

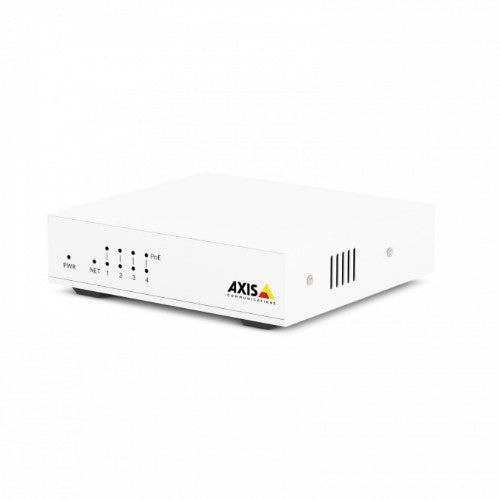

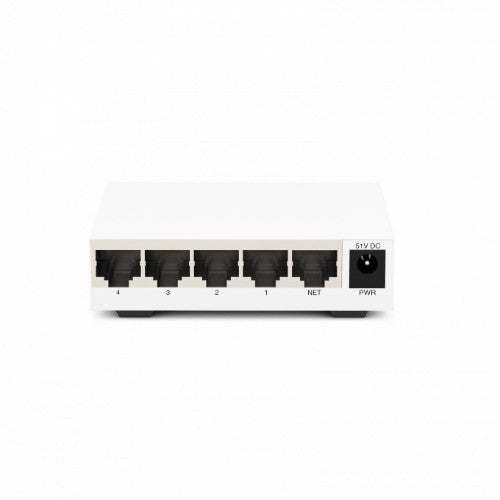

Axis 02101-004 network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) White
Part number:
02101-004
$121.14
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- 4-port 10/100 Mbps 802.3af/at PoE+; 60 W PoE power budget; Level VI energy efficiency compliance; Palm-sized, metal casing; Plug and play installation
Description
The palm-sized AXIS D8004 Unmanaged PoE Switch delivers network and power for up to 4 network devices with plug and play installation. Using AXIS D8004 Unmanaged PoE Switch as a central power source simplifies both installation and maintenance. The switch, together with AXIS surveillance cards, is perfect for small systems with few devices and basic video storage requirements. AXIS D8004 Unmanaged PoE Switch is also ideal when it’s not possible to pull multiple cables. If there’s local power available, simply pull one cable with data connection from the core switch or router, and AXIS D8004 Unmanaged PoE Switch can provide Power over Ethernet (PoE) for all 4 products.Specifications
| Power | |
|---|---|
| Power connector | DC-in jack |
| Power consumption (max) | 62 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power source | AC |
| Technical details | |
| Product colour | White |
| Housing material | Metal |
| Rack mounting | No |
| Management features | |
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| 10G support | No |
| Design | |
| Product colour | White |
| LED indicators | Yes |
| Housing material | Metal |
| Rack mounting | No |
| Indication | |
| LED indicators | Yes |
| Power over Ethernet (PoE) | |
| Total Power over Ethernet (PoE) budget | 62.5 W |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -10 - 50 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 3.54" (90 mm) |
| Depth | 3.15" (80 mm) |
| Height | 0.827" (21 mm) |
| Weight | 6.07 oz (172 g) |
| Packaging data | |
| Manual | Yes |
| Cables included | AC |
| Packaging content | |
| Manual | Yes |
| Cables included | AC |
