WiFi 6, 2x2, RJ-45, PoE, LED, 160.9 x 160.9 x 33.25 mm, 412 g
Forming wireless backhaul with other WAX6610, WAX610Y, WAC540, or WC564 units to set up a mesh network
Monitor From Anywhere
User-friendly remote cloud management with the Insight app
Flexible Mounting
Wall and ceiling kit included
Powerful Business WiFi
Faster and more reliable WiFi due to higher throughput and more coverage with the use of both 2.4Ghz and 5Ghz bands simultaneously.
Ideal for High Density Environments
Ultimate WiFi performance for schools, hotels, restaurants, and conference centers.
Easy Wiring
Extra Wired 2.5Gbps Ethernet port that’s backward compatible with 100/1000Mbps Ethernet for easy wiring. WAX610PA version includes power adaptor for non-PoE installations.
Greater Network Capacity
Enjoy 4x more connection capacity than your current WiFi and improved efficiency for longer battery life.
Seamless, Mesh WiFi
Wire-free installation with other WAX610, WAX610Y, WAC540, or WAC564 creates the perfect seamless business network.
Easy DIY Set Up
Setup, configure, and manage with the Insight app.
Flexible Mounting
Easy to securely install on the wall or a suspended ceiling with included hardware.
8 Wireless Networks (SSIDS)
Separate and secure networks for admin, guests, employees and IoT like cameras, locks and more.
Separate VLANs
Keep admin, employees, visitors, HR departments safely separated and segregated.
Peer-to-peer Separation
Prevent guests from accessing other guests devices on same VLAN
Netgear

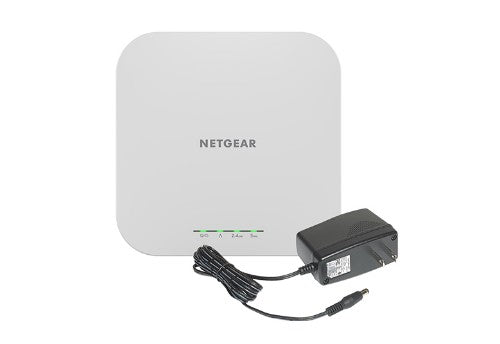

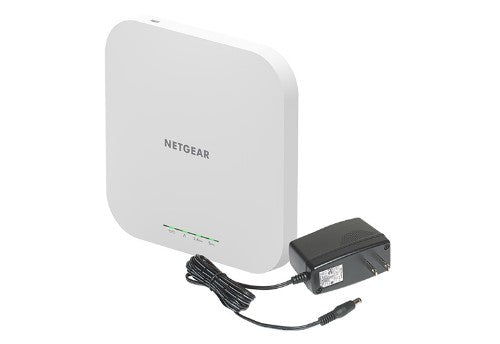

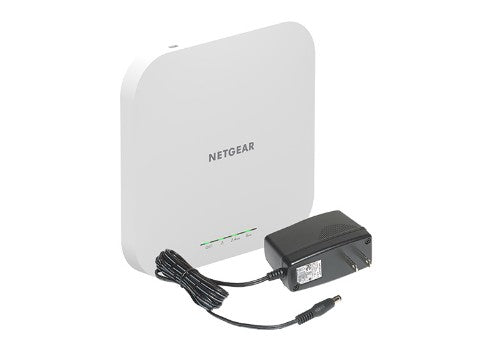

NETGEAR AX1800 White Power over Ethernet (PoE)
Part number:
WAX610PA-100NAS
Sale price
$160.83
Regular price
$311.97
Save
$151.14
48%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Number of Max Users : 250
- Number of Concurrent Users : 30
- Remote management : Insight Standalone
- Ethernet port : 2.5G
Description
Instant WiFi MeshForming wireless backhaul with other WAX6610, WAX610Y, WAC540, or WC564 units to set up a mesh network
Monitor From Anywhere
User-friendly remote cloud management with the Insight app
Flexible Mounting
Wall and ceiling kit included
Powerful Business WiFi
Faster and more reliable WiFi due to higher throughput and more coverage with the use of both 2.4Ghz and 5Ghz bands simultaneously.
Ideal for High Density Environments
Ultimate WiFi performance for schools, hotels, restaurants, and conference centers.
Easy Wiring
Extra Wired 2.5Gbps Ethernet port that’s backward compatible with 100/1000Mbps Ethernet for easy wiring. WAX610PA version includes power adaptor for non-PoE installations.
Greater Network Capacity
Enjoy 4x more connection capacity than your current WiFi and improved efficiency for longer battery life.
Seamless, Mesh WiFi
Wire-free installation with other WAX610, WAX610Y, WAC540, or WAC564 creates the perfect seamless business network.
Easy DIY Set Up
Setup, configure, and manage with the Insight app.
Flexible Mounting
Easy to securely install on the wall or a suspended ceiling with included hardware.
8 Wireless Networks (SSIDS)
Separate and secure networks for admin, guests, employees and IoT like cameras, locks and more.
Separate VLANs
Keep admin, employees, visitors, HR departments safely separated and segregated.
Peer-to-peer Separation
Prevent guests from accessing other guests devices on same VLAN
Specifications
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Auto Wireless Distribution System (WDS) | Yes |
| Number of users | 250 user(s) |
| VLAN support | Yes |
| Networking standards | IEEE 802.11ax, IEEE 802.3af |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| MIMO | Yes |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Network | |
| Number of users | 250 user(s) |
| Networking standards | IEEE 802.11ax, IEEE 802.3af |
| Management features | |
| VLAN support | Yes |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Number of users | 250 user(s) |
| VLAN support | Yes |
| Networking standards | IEEE 802.11ax, IEEE 802.3af |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| MIMO | Yes |
| Maximum data transfer rate (2.4 GHz) | 600 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1200 Mbit/s |
| Security | |
| Auto Wireless Distribution System (WDS) | Yes |
| Security algorithms | WPA, WPA2, WPA3 |
| MAC address filtering | Yes |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Power | |
| Power consumption (typical) | 15.3 W |
| Power over Ethernet (PoE) | Yes |
| Input current | 2.5 A |
| AC input voltage | 12 V |
| Design | |
| Placement | Ceiling, Wall |
| Product colour | White |
| LED indicators | Power, Status |
| Antenna | |
| Antenna type | Internal |
| Antenna gain level (max) | 4.5 dBi |
| Indication | |
| LED indicators | Power, Status |
| Weight & dimensions | |
| Width | 6.33" (160.9 mm) |
| Depth | 6.33" (160.9 mm) |
| Weight | 14.5 oz (412 g) |
| Height | 1.31" (33.2 mm) |
| Packaging data | |
| Mounting kit | Yes |
| Packaging content | |
| Mounting kit | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
