4-Port Gigabit Ethernet with PoE PCIe Card - Intel 350
Siig

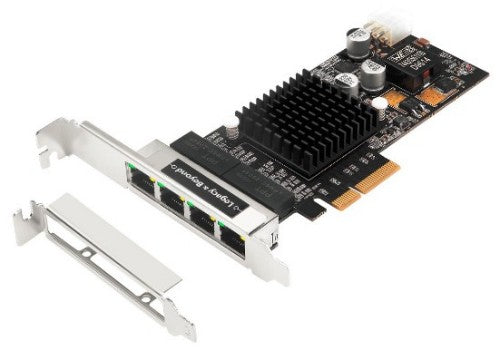

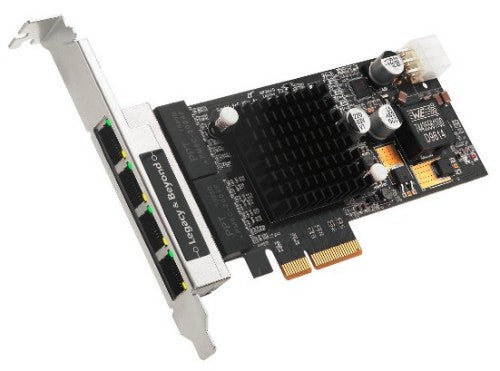

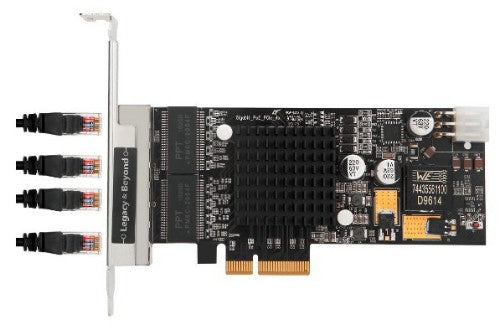

Siig LB-GE0811-S1 network card Internal Ethernet 1000 Mbit/s
Part number:
LB-GE0811-S1
Sale price
$258.61
Regular price
$347.99
Save
$89.38
26%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features

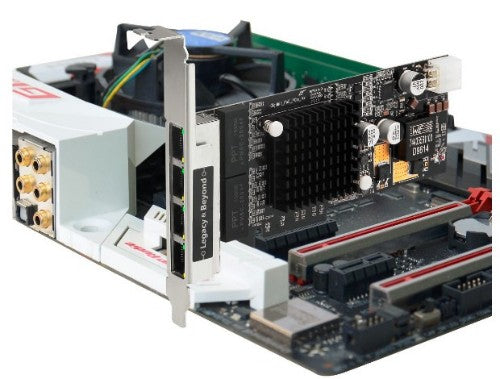

- Adds four independent Gigabit Ethernet ports through an available PCI Express slot to server or desktop systems, with Power over Ethernet capability
- Intel I350-T4 chipset supports reliable and advanced network connectivity
- Compliant with IEEE 802.3, 802.3u, 802.3ab with full duplex and Wake-on-LAN support
- Supports IEEE 802.3at PoE+ standard, with up to 30W power output per port
- Supports IEEE 802.3az Energy Efficient Ethernet (EEE)
- Supports PXE network boot
- Features innovative power management including Energy Efficient Ethernet (EEE) and DMA Coalescing to increase efficiency and reduce power consumption
- Supports IEEE standard 802.1Q for VLAN
- Advanced Configuration and Power Interface (ACPI) power management states and wake-up capability
- Advanced Power Management (APM) wake-up functionality
- Supports 12V mini-fit 6-pin power connector input
- Powered device (PD) auto detection and classification
- Fits both standard height and low profile system chassis with the included full size and spare low profile brackets
Description
Quickly adds four independent Gigabit Ethernet ports with PoE through an available PCI Express slot to server or desktop systems.Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| PCI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 4 |
| Interface | Ethernet |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Bandwidth | |
| Maximum data transfer rate | 1000 Mbit/s |
| Network | |
| Chipset | Intel® I350-T4 |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000BaseT(X) |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 1000 Mbit/s |
| Technical details | |
| Product colour | Black |
| Compliance certificates | RoHS |
| Design | |
| Product colour | Black |
| Chipset | Intel® I350-T4 |
| Certification | FCC, CE |
| Internal | Yes |
| Component for | PC |
| Software | |
| Windows operating systems supported | Windows 10, Windows 10 x64, Windows 7, Windows 7 x64, Windows 8.1, Windows 8.1 x64 |
| System requirements | |
| Server operating systems supported | Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 R2 x64, Windows Server 2008 x64, Windows Server 2012, Windows Server 2012 R2, Windows Server 2012 R2 x64, Windows Server 2012 x64, Windows Server 2013, Windows Server 2016, Windows Server 2016 x64, Windows Server 2019 |
| Windows operating systems supported | Windows 10, Windows 10 x64, Windows 7, Windows 7 x64, Windows 8.1, Windows 8.1 x64 |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Weight & dimensions | |
| Width | 4.72" (119.9 mm) |
| Depth | 6.42" (163.1 mm) |
| Height | 0.87" (22.1 mm) |
| Weight | 4 oz (113.4 g) |

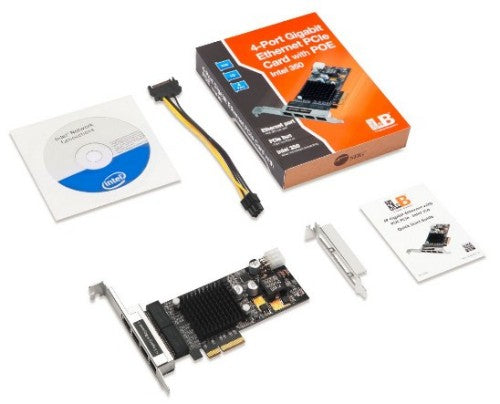

| Packaging content | |
| Mounting brackets included | Yes |
| Quick installation guide | Yes |
| Resource CD | Yes |
| Performance | |
| Server operating systems supported | Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 R2 x64, Windows Server 2008 x64, Windows Server 2012, Windows Server 2012 R2, Windows Server 2012 R2 x64, Windows Server 2012 x64, Windows Server 2013, Windows Server 2016, Windows Server 2016 x64, Windows Server 2019 |
| Windows operating systems supported | Windows 10, Windows 10 x64, Windows 7, Windows 7 x64, Windows 8.1, Windows 8.1 x64 |
| Packaging data | |
| Mounting brackets included | Yes |
| Quick installation guide | Yes |
| Certificates | |
| Certification | FCC, CE |
| Other features | |
| Chipset | Intel® I350-T4 |
