HPE Networking Instant On Access Point Bundle with PSU (US) AP22, 2.4 GHz, 5 GHz, 1774 Mbit/s, WPA2, WPA3, 10,100,1000 Mbit/s
HPE Networking Instant On Access Points AP22 supports the Wi-Fi 6 standard, including features such as orthogonal frequency-division multiple access (OFDMA) and bi-directional MIMO (MIMO).
HPE Networking Instant On Access Points AP22 support features Target Wake Time (TWT) that help establish a schedule when clients need to communicate with an AP.
Conveniently expands your network to hard-to-wire areas – nearly eliminating spotty connections and dead zones, providing Wi-Fi where you need it.
HPE Networking Instant On Access Points AP22 comes with integrated router, gateway, and firewall functionality.
Create up to eight different SSIDs under one network name to keep your data safe, whether surfing the web or checking HR data.
Block undesired applications and websites with greater traffic visibility without the need for any external gateway or additional costs; the control is at your fingertips.
Simple to build landing page allows customization of your guest access page with your own brand and logo.
Gain insights into customers with third party captive portal integration with partners like Skyfii, Purple, Aislelabs, and Wavespot.
HPE

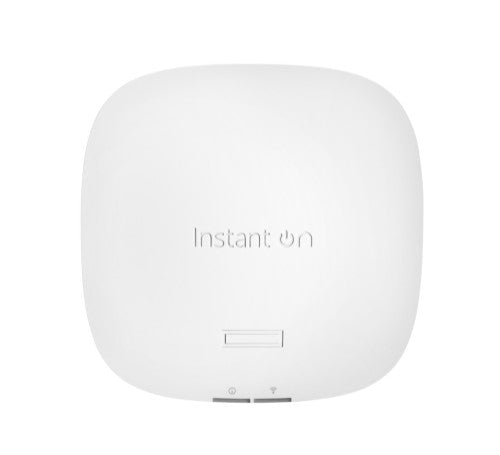

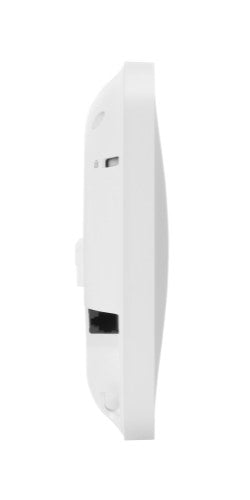

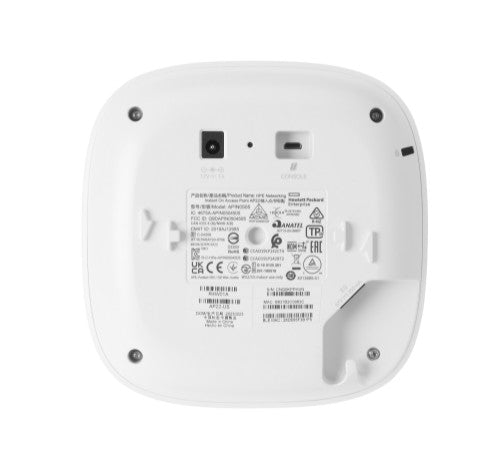

HPE Networking Instant On Access Point Bundle with PSU (US) AP22
Part number:
R6M49A
Sale price
$223.09
Regular price
$265.00
Save
$41.91
16%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Reasons To Buy
Incredible Efficiency with Wi-Fi 6
HPE Networking Instant On Access Points AP22 includes an easy-to-use web GUI and templates; access points are simple to deploy and are up and running in minutes.HPE Networking Instant On Access Points AP22 supports the Wi-Fi 6 standard, including features such as orthogonal frequency-division multiple access (OFDMA) and bi-directional MIMO (MIMO).
HPE Networking Instant On Access Points AP22 support features Target Wake Time (TWT) that help establish a schedule when clients need to communicate with an AP.
Reduce High Cost of Cabling with Full-scale Wireless Mesh Coverage
HPE Networking Instant On Access Points AP22 have built-in wireless mesh capabilities to cost-effectively extend Wi-Fi connectivity without additional cables.Conveniently expands your network to hard-to-wire areas – nearly eliminating spotty connections and dead zones, providing Wi-Fi where you need it.
Safeguard Sensitive Data with WPA2/WPA3 and Enhanced Open
HPE Networking Instant On Access Points AP22 comes with integrated Wi-Fi Alliance security standard WPA2/WPA3 and Enhanced Open support for protected wireless access.HPE Networking Instant On Access Points AP22 comes with integrated router, gateway, and firewall functionality.
Create up to eight different SSIDs under one network name to keep your data safe, whether surfing the web or checking HR data.
Block undesired applications and websites with greater traffic visibility without the need for any external gateway or additional costs; the control is at your fingertips.
Creates a Custom Guest Access Experience
HPE Networking Instant On Access Points AP22 are ideal for single or distributed small business sites such as graphic design firms, cafés, restaurants, and other Wi-Fi hotspots.Simple to build landing page allows customization of your guest access page with your own brand and logo.
Gain insights into customers with third party captive portal integration with partners like Skyfii, Purple, Aislelabs, and Wavespot.
Description
HPE Networking Instant On Access Point Bundle with PSU (US) AP22. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1774 Mbit/s. Security algorithms: WPA2, WPA3. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product color: White. Power consumption (max): 10.1 WSpecifications
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 1774 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Networking standards | IEEE 802.11ax |
| Modulation | 256-QAM, 1024-QAM |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Certification | None |
| Maximum data transfer rate | 1774 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Wireless LAN features | |
| Modulation | 256-QAM, 1024-QAM |
| Network | |
| Networking standards | IEEE 802.11ax |
| Security | |
| Cable lock slot | Yes |
| Security algorithms | WPA2, WPA3 |
| Features | |
| 6 GHz | No |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Networking standards | IEEE 802.11ax |
| Modulation | 256-QAM, 1024-QAM |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 1774 Mbit/s |
| Bluetooth | Yes |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1200 Mbit/s |
| Ports & interfaces | |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Power consumption (max) | 10.1 W |
| Power over Ethernet (PoE) | Yes |
| Design | |
| Placement | Ceiling, Wall |
| Product colour | White |
| Certification | None |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Antenna | |
| Antenna type | Internal |
| Antenna gain level (max) | 5.6 dBi |
| Antenna direction type | Omni-directional |
| Certificates | |
| Certification | None |
| Weight & dimensions | |
| Width | 6.3" (160 mm) |
| Depth | 6.3" (160 mm) |
| Weight | 17.6 oz (500 g) |
| Height | 1.46" (37 mm) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
