USB 3.1 2-Port PCIe Host Adapter - Type-A
Siig
Siig JU-P20912-S2 interface cards/adapter Internal USB 3.2 Gen 2 (3.1 Gen 2)
Part number:
JU-P20912-S2
Sale price
$32.94
Regular price
$83.99
Save
$51.05
61%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Complies with PCI-Express 3.0 standard
- Supports the latest USB generation 3.1 Gen 2 with data transfer rate up to 10Gb/s
- Supports plug-n-play, hot-swapping, and backwards compatible with USB 1.1 / 2.0 / 3.0
- Each USB port provides up to 900mA power output to better support the power consumption of your connected device
- Each USB port features independent over-current protection to further protect your device
- Built-in 15-pin SATA power connector connects to the system power supply, as needed, to ensure sufficient power is supplied to the USB ports

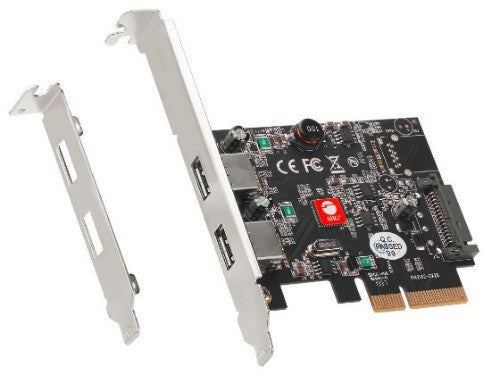

- Dual-profile design installs into different form factor system chassis with the included full and low profile brackets
Description

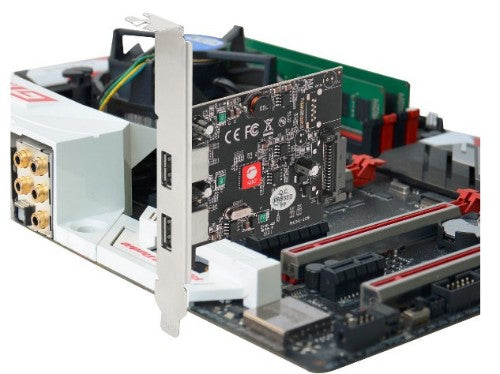

Adds two USB 3.1 Type-A ports to your desktop computer via an available PCI Express slot.Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Output interface | USB 3.2 Gen 2 (3.1 Gen 2) |
| Host interface | PCIe |
| Expansion card standard | PCIe 3.0 |
| SATA power connector type | SATA 15-pin |
| Technical details | |
| Data transfer rate (max) | 10 Gbit/s |
| Compliance certificates | RoHS |
| Performance | |
| Data transfer rate (max) | 10 Gbit/s |
| Product colour | Black, Silver |
| Certificates | |
| Certification | FCC, CE |
| Colour | |
| Product colour | Black, Silver |
| Design | |
| Internal | Yes |
| Product colour | Black, Silver |
| Certification | FCC, CE |
| Features | |
| Data transfer rate (max) | 10 Gbit/s |
| Power | |
| Power consumption (typical) | 3 W |
| Output current | 0.9 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 10 x64, Windows 8.1, Windows 8.1 x64 |
| Mac operating systems supported | Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina |
| Server operating systems supported | Windows Server 2012, Windows Server 2012 R2, Windows Server 2012 R2 x64, Windows Server 2012 x64, Windows Server 2016, Windows Server 2016 x64, Windows Server 2019 |
| Weight & dimensions | |
| Width | 3.94" (100.1 mm) |
| Depth | 4.72" (119.9 mm) |
| Height | 0.79" (20.1 mm) |
| Weight | 1.76 oz (49.9 g) |
| Packaging data | |
| Mounting brackets included | Yes |
| User guide | Yes |
| Quantity | 1 |

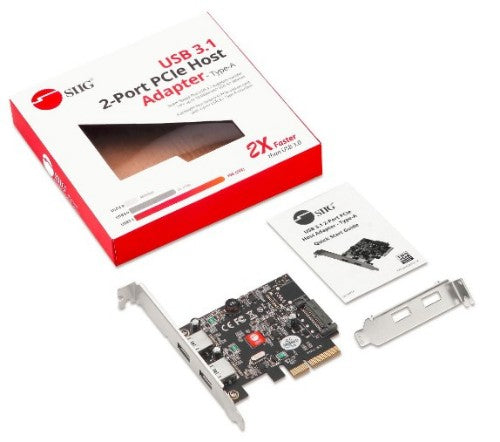

| Packaging content | |
| Mounting brackets included | Yes |
| User guide | Yes |
| Quantity | 1 |
