AC1200, 3x LAN, 1x WAN, 4x 5 dBi, VLAN, MU-MIMO, 239x155x30 mm
Pre-Encrypted
For your convenience, the wireless networks are pre-encrypted with unique passwords.
5dBi External Antennas
4 x 5dBi external antennas provide extended wireless coverage.
Internet Bandwidth Controls
Control access to the internet and manage bandwidth for devices connected to the wireless ac router.
Easy Setup
Install in minutes with the intuitive setup
One Touch Connection
Connect to the wireless ac router using the Wi-Fi Protected Setup (WPS) button
Pre-Encrypted
For your convenience, the wireless network is pre-encrypted with its own unique password
Access Controls
Control access to specific websites and manage which devices can access the internet
Fast Ethernet Ports
10/100 Mbps Ethernet ports connect up to three devices
Wireless Coverage
4 x 5dBi antennas on this wireless ac router provide extended wireless coverage
IPv6
IPv6 network support
Trendnet

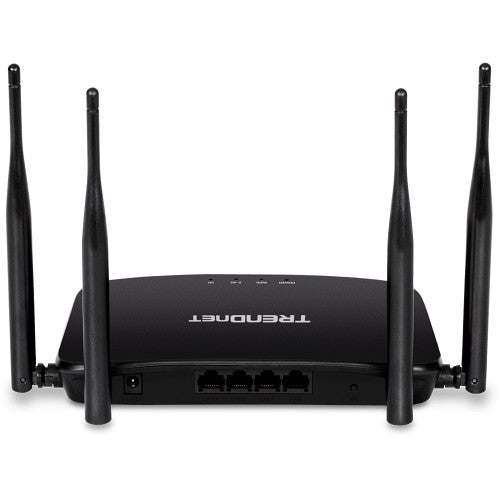

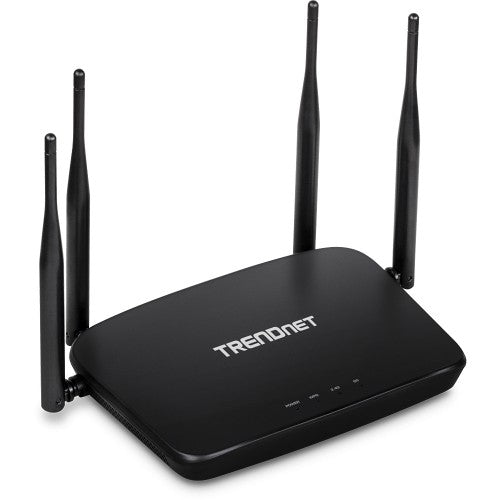

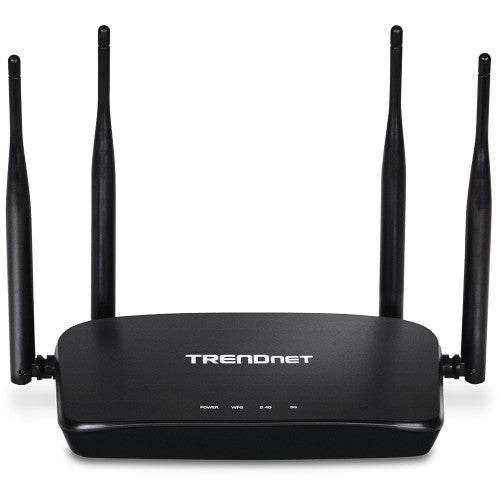

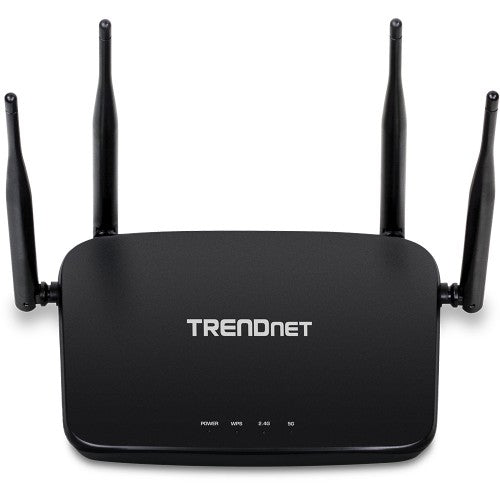

Trendnet TEW-831DR wireless router Fast Ethernet Dual-band (2.4 GHz / 5 GHz) Black
Part number:
TEW-831DR
$27.34
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Internet bandwidth controls
- Pre-encrypted for your convenience
- One touch network connection with the WPS button
- LAN/WAN IPv6 Support
- Multi-User MIMO (MU-MIMO) support
Description
TRENDnet's AC1200 Dual Band WiFi Router, model TEW-831DR, is a high-speed wireless ac router designed to handle multiple HD streams in a busy connected home. This dual band wireless ac router creates two concurrent wireless networks—a high performance 867Mbps wireless AC network, and a 300Mbps wireless N network for wireless device connections. For added convenience, the wireless networks are pre-encrypted out of the box.Pre-Encrypted
For your convenience, the wireless networks are pre-encrypted with unique passwords.
5dBi External Antennas
4 x 5dBi external antennas provide extended wireless coverage.
Internet Bandwidth Controls
Control access to the internet and manage bandwidth for devices connected to the wireless ac router.
Easy Setup
Install in minutes with the intuitive setup
One Touch Connection
Connect to the wireless ac router using the Wi-Fi Protected Setup (WPS) button
Pre-Encrypted
For your convenience, the wireless network is pre-encrypted with its own unique password
Access Controls
Control access to specific websites and manage which devices can access the internet
Fast Ethernet Ports
10/100 Mbps Ethernet ports connect up to three devices
Wireless Coverage
4 x 5dBi antennas on this wireless ac router provide extended wireless coverage
IPv6
IPv6 network support
Specifications
| Ethernet LAN features | |
|---|---|
| Ethernet WAN | Yes |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| DSL features | |
| DSL WAN | No |
| Mobile network | |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| 3G | No |
| 4G | No |
| Protocols | |
| DMZ support | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Management features | |
| Universal Plug and Play (UPnP) | Yes |
| WPS push button | Yes |
| Web-based management | Yes |
| Reset button | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| MU-MIMO technology | Yes |
| Security | |
| VPN support | FTP/TFTP/SIP/RTSP/IRC/H.323 |
| System event log | Yes |
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA, WPA2 |
| MAC address filtering | Yes |
| IP address filtering | Yes |
| Firewall | Yes |
| DoS attack prevention | Yes |
| DMZ support | Yes |
| Filtering | Yes |
| Performance | |
| Firmware upgradeable | Yes |
| Memory card slot(s) | No |
| Packaging content | |
| Number of products included | 1 pc(s) |
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Quick installation guide | Yes |
| WAN connection | |
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| Wireless LAN features | |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) | 1200 Mbit/s |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Network | |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| VPN support | FTP/TFTP/SIP/RTSP/IRC/H.323 |
| Receiver sensitivity | 802.11a: -75 dBm @ 54Mbps 802.11b: -90 dBm @ 11Mbps 802.11g: -72 dBm @ 54Mbps 802.11n (2.4GHz): -72 dBm @ 300Mbps 802.11n (5GHz): -72 dBm @ 867Mbps 802.11ac: -61 dBm @ 867Mbps |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Ethernet LAN data rates | 10,100 Mbit/s |
| VPN Passthrough | Yes |
| Ports & interfaces | |
| USB port | No |
| Ethernet LAN (RJ-45) ports | 3 |
| Memory card slot(s) | No |
| Design | |
| Product colour | Black |
| Certificates | |
| Certification | FCC, IC |
| Antenna | |
| Antenna design | External |
| Antennas quantity | 4 |
| Antenna gain level (max) | 5 dBi |
| Features | |
| Firmware upgradeable | Yes |
| Certification | FCC, IC |
| Power | |
| Power source type | AC |
| Output voltage | 12 V |
| Output current | 1 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Width | 6.1" (155 mm) |
| Weight | 8.04 oz (228 g) |
| Height | 1.18" (30 mm) |
| Depth | 9.41" (239 mm) |
| Packaging data | |
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Quick installation guide | Yes |
| Number of products included | 1 pc(s) |
