4-Output PoH/PoE Power Injector
ATEN
ATEN VE44PB network extender Network transmitter & receiver Black
Part number:
VE44PB
$183.53
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Supplies power for up to four ATEN Power-over-HDBaseT (PoH) /Power-over-Ethernet (PoE) compatible products over Cat 5e/6/6a cables
- HDBaseT connectivity – extends HDMI connection over a long distance via Cat 6/6a cable
- Offers a data rate up to 10.2Gbps which is compatible with ATEN HDBaseT PoH PD products
- • Compatible ATEN PoH-powered/PoE-powered models:
- VE2812AT, VE2812AEUT, VE2812AUST, VE1812R, VE802R, VK108US, VK112EU, VK224, VK236, VK248, KE8952, or future ATEN PoH-powered/PoE-powered products which follow IEEE 802.3 af standard
- Built-in 8KV/15KV ESD protection
- Plug-and-play without additional settings
- Rack-mountable
- Supplies up to 15.4W of power per PSE port

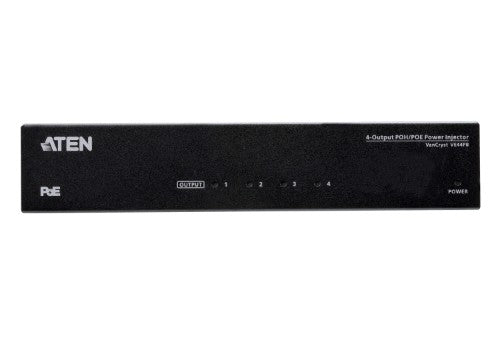

- Status LEDs to provide an at-a-glance overview of device status, improving real-time monitoring and troubleshooting
- Assured signal quality – usage of the VE44PB power injector does not affect the signal quality of the video, audio, bi-directional RS-232, and Ethernet transmission*
- *The transmission distance maybe reduced to 80% of the original distance.
Description
The ATEN VE44PB is a 4-port power injector for remote power supply for up to four compatible ATEN PoH-powered or PoE-powered devices via Cat 5e/6/6a cables. Deploying the VE44PB in your Pro AV facilities eliminates the need for local power supplies of the connected devices. It supplies up to 15.4W of power per PSE port. Featuring HDBaseT connectivity, the VE44PB can extend HDMI connection over a long distance via Cat 6/6a cables; meanwhile, still ensures unaffected video and image quality. Besides, the status LEDs on its front panel indicates an at-a-glance overview of the connected devices, allowing you to perform real-time monitoring and trouble shooting in the case of emergency. With its compact and rack mountable design, the VE44PB can be flexibly installed anywhere between the transmitter and receiver that require remote PoH / PoE powering.Specifications
| Performance | |
|---|---|
| Plug and Play | Yes |
| Type | Network transmitter & receiver |
| Power over Ethernet (PoE) | Yes |
| Data transfer rate | 10.2 Mbit/s |
| Cable types supported | Cat5e, Cat6, Cat6a |
| Technical details | |
| Plug and Play | Yes |
| On/off switch | Yes |
| LED indicators | Yes |
| Type | Network transmitter & receiver |
| Power over Ethernet (PoE) | Yes |
| Data transfer rate | 10.2 Mbit/s |
| Cable types supported | Cat5e, Cat6, Cat6a |
| Network | |
| Cabling technology | 10/100Base-T(X) |
| Networking standards | IEEE 802.3af |
| Ports & interfaces | |
| RJ-45 ports quantity (transmitter) | 4 |
| Power over Ethernet (PoE) ports quantity | 4 |
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 8 |
| Design | |
| Housing material | Metal |
| On/off switch | Yes |
| LED indicators | Yes |
| Product colour | Black |
| Rack mounting | Yes |
| Power | |
| Power consumption (max) | 1.2 W |
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 1.1 W |
| Total Power over Ethernet (PoE) budget | 15.4 W |
| Operational conditions | |
| Operating temperature (transmitter) | 0 - 80 °C |
| Storage temperature (transmitter) | 0 - 80 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Weight & dimensions | |
| Width | 6.34" (161 mm) |
| Depth | 8.46" (215 mm) |
| Height | 1.61" (41 mm) |
| Weight | 2.71 lbs (1.23 kg) |
| Colour | |
| Product colour | Black |
