2U, Intel Xeon D-1567, 16 GB DDR4 ECC RDIMM (128 GB Max), 24 Drive Bays 2.5" HDD/SSD
FS3600 is a 24-bay all-flash Synology NAS for enterprise use that boosts the performance of I/O sensitive applications, such as databases, virtual machines, or online transaction processing (OLTP). Featuring a 12-core CPU and high-speed network connection, FS3600 delivers over 195,000 iSCSI 4K random write IOPS1 to satisfy enterprise demand for high-speed infrastructure.
Fully certified storage virtualization solutions
Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component.
Real-time collaboration on your private cloud
Synology Office is a collaboration package combining the convenience and usability of the public cloud with private cloud privacy and security. It enables seamless collaboration on documents and spreadsheets in a protected environment.
Next-generation file system for better data protection
The Btrfs file system introduces advanced storage technologies and optimized snapshots to prevent data corruption and reduce maintenance overheads. It offers flexible, efficient data protection and recovery tools while ensuring high-level data integrity.
- Flexible Shared Folder/User Quota System provides comprehensive quota control on all user accounts and shared folders
- Snapshot Replication provides schedulable and storage capacity-saving data protection with 1,024 shared folder backups and 65,000 system-wide snapshots
- File- or folder-level data restoration accelerates data recovery and provides more flexibility for businesses
- Automatic file self-healing detects and recovers corrupted files without user intervention
Synology

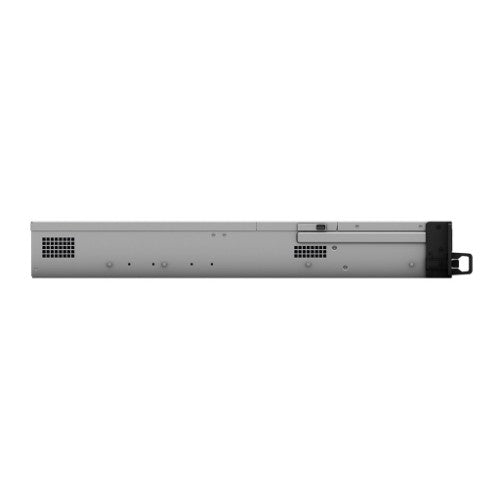

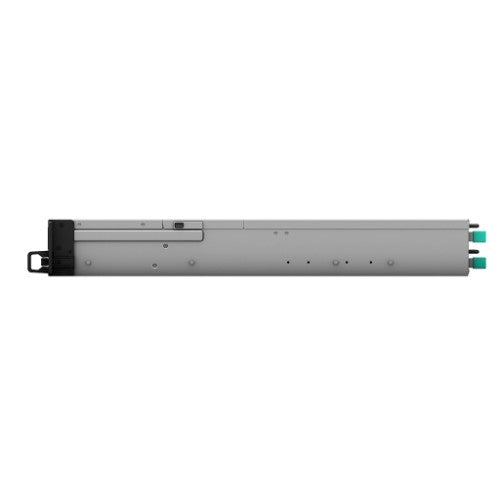

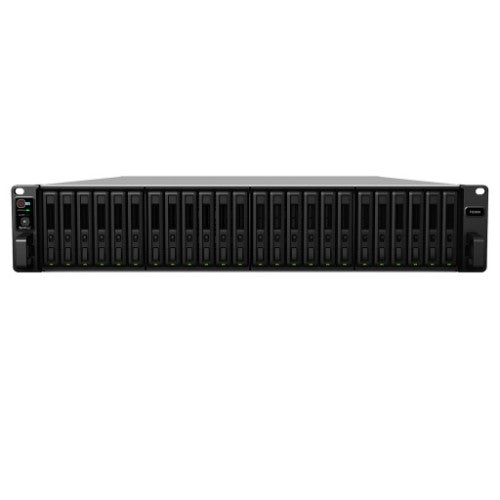

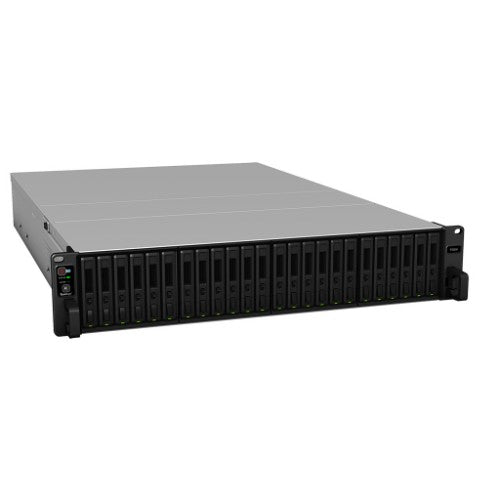

Synology FlashStation FS3600 NAS/storage server Rack (2U) Intel® Xeon® D D-1567 16 GB DDR4 Black
Part number:
FS3600
$10,086.08
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
Fast and scalable all-flash NASFS3600 is a 24-bay all-flash Synology NAS for enterprise use that boosts the performance of I/O sensitive applications, such as databases, virtual machines, or online transaction processing (OLTP). Featuring a 12-core CPU and high-speed network connection, FS3600 delivers over 195,000 iSCSI 4K random write IOPS1 to satisfy enterprise demand for high-speed infrastructure.
Fully certified storage virtualization solutions
Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component.
Real-time collaboration on your private cloud
Synology Office is a collaboration package combining the convenience and usability of the public cloud with private cloud privacy and security. It enables seamless collaboration on documents and spreadsheets in a protected environment.
Next-generation file system for better data protection
The Btrfs file system introduces advanced storage technologies and optimized snapshots to prevent data corruption and reduce maintenance overheads. It offers flexible, efficient data protection and recovery tools while ensuring high-level data integrity.
- Flexible Shared Folder/User Quota System provides comprehensive quota control on all user accounts and shared folders
- Snapshot Replication provides schedulable and storage capacity-saving data protection with 1,024 shared folder backups and 65,000 system-wide snapshots
- File- or folder-level data restoration accelerates data recovery and provides more flexibility for businesses
- Automatic file self-healing detects and recovers corrupted files without user intervention
Specifications
| Storage | |
|---|---|
| Storage drives installed | No |
| Installed storage drive type | No |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 24 |
| Hot-swap drive bays | Yes |
| RAID support | Yes |
| Supported file systems | BTRFS, Fat, HFS+, NTFS, exFAT, ext3, ext4 |
| Supported storage drive interfaces | Serial ATA III, Serial Attached SCSI (SAS) |
| Processor | |
| Processor manufacturer | Intel |
| Thermal Design Power (TDP) | 65 W |
| Stepping | Y0 |
| Scalability | 1S |
| Processor threads | 24 |
| Processor socket | BGA 1667 |
| Processor series | Intel Xeon D-1500 |
| Processor package size | 37.5 x 37.5 mm |
| Processor operating modes | 64-bit |
| Processor lithography | 14 nm |
| Processor codename | Broadwell |
| Processor code | SR2M3 |
| Processor cache type | L3 |
| Processor cache | 18 MB |
| Processor boost frequency | 2.7 GHz |
| PCI Express slots version | 2.0, 3.0 |
| PCI Express configurations | 1x16, 1x4, 1x8 |
| CPU configuration (max) | 1 |
| Maximum internal memory supported by processor | 128 GB |
| Conflict-Free processor | Yes |
| Processor ARK ID | 93356 |
| Processor frequency | 2.1 GHz |
| Processor family | Intel® Xeon® D |
| Processor model | D-1567 |
| Processor cores | 12 |
| L3 cache | 18 MB |
| Memory | |
| Internal memory type | DDR4 |
| Internal memory | 16 GB |
| Maximum RAM supported | 128 GB |
| Memory slots | 4 |
| Memory form factor | DIMM |
| Network | |
| Dynamic DNS (DDNS) | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Supported network protocols | SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN™, L2TP) |
| iSCSI support | Yes |
| Ports & interfaces | |
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 6 |
| Hard drive | |
| RAID support | Yes |
| Supported file systems | BTRFS, Fat, HFS+, NTFS, exFAT, ext3, ext4 |
| Design | |
| Cooling type | Active |
| Fan diameter | 3.15" (8 cm) |
| Product colour | Black |
| Number of fans | 4 fan(s) |
| Chassis type | Rack (2U) |
| Technical details | |
| Type | NAS |
| Device class | Small & Medium Business |
| Backup function | Yes |
| Backup features | Cloud, USB drive |
| Product colour | Black |
| Noise level | 57 dB |
| Chassis type | Rack (2U) |
| Number of fans | 4 fan(s) |
| Harmonized System (HS) code | 84714100 |
| Compliance certificates | RoHS |
| Performance | |
| Type | NAS |
| Device class | Small & Medium Business |
| Backup function | Yes |
| Backup features | Cloud, USB drive |
| Noise level | 57 dB |
| Cooling | |
| Cooling type | Active |
| Fan diameter | 3.15" (8 cm) |
| Number of fans | 4 fan(s) |
| Power | |
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 500 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 1 |
| Weight & dimensions | |
| Width | 19" (482 mm) |
| Depth | 28.5" (724 mm) |
| Height | 3.46" (88 mm) |
| Weight | 32.8 lbs (14.9 kg) |
| Processor special features | |
| UART | Yes |
| Thermal Monitoring Technologies | Yes |
| Maximum number of PCI Express lanes | 32 |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Secure Key | Yes |
| Intel® OS Guard | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI version | 1.00 |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel Enhanced Halt State | Yes |
| Intel 64 | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Embedded options available | Yes |
| Memory types supported by processor | DDR3-SDRAM, DDR4-SDRAM |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 35 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Logistics data | |
| Harmonized System (HS) code | 84714100 |
| Other features | |
| Processor ARK ID | 93356 |
| Compliance certificates | RoHS |
