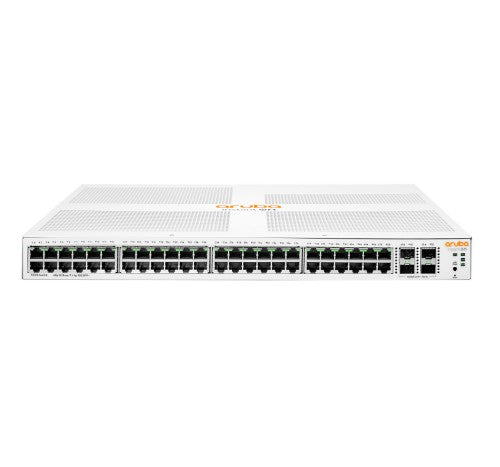

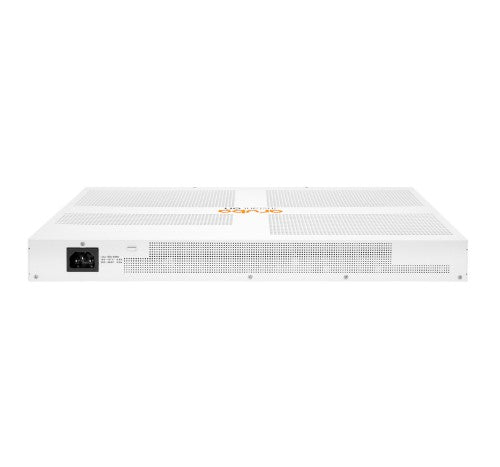

HPE Aruba Networking Instant On 1930 48G 4SFP/SFP+, Managed, L2+, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting, 1U

Description

HPE Aruba Networking Instant On 1930 48G 4SFP/SFP+. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. Full duplex. MAC address table: 16000 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z. Rack mounting, Form factor: 1U

Specifications

Management features
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Switch layer	L2+
Ports & interfaces
SFP+ module slots quantity	4
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Network
Auto-sensing	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z
Full duplex	Yes
VLAN support	Yes
Spanning tree protocol	Yes
Rate limiting	Yes
Port mirroring	Yes
Number of VLANs	256
Link aggregation	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
10G support	Yes
IGMP snooping	Yes
Data transmission
Throughput	130.95 Mpps
Latency (10-100 Mbps)	4.5 µs
Latency (1 Gbps)	2.2 µs
Latency (10 Gbps)	1.2 µs
Packet buffer memory	1.5 MB
MAC address table	16000 entries
Switching capacity	176 Gbit/s
Number of VLANs	256
Security
SSH/SSL support	Yes
IGMP snooping	Yes
Design
Form factor	1U
Product colour	White
Stackable	No
Rack mounting	Yes
Performance
Processor frequency	800 MHz
Memory type	SDRAM
Internal memory	512 MB
Flash memory	256 MB
Processor model	ARM Cortex-A9
Packet buffer memory	1.5 MB
Stackable	No
Power
Power consumption (max)	36.9 W
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	15 - 95%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	15 - 95%
Virtual LAN features
VLAN support	Yes
Number of VLANs	256
Weight & dimensions
Width	17.4" (442.5 mm)
Depth	11.1" (282.4 mm)
Height	1.73" (43.9 mm)
Weight	6.9 lbs (3.13 kg)
Technical details
Form factor	1U
Product colour	White
Stackable	No
Processor frequency	800 MHz
Rack mounting	Yes
Memory
Packet buffer memory	1.5 MB
Memory type	SDRAM
Internal memory	512 MB
Flash memory	256 MB
