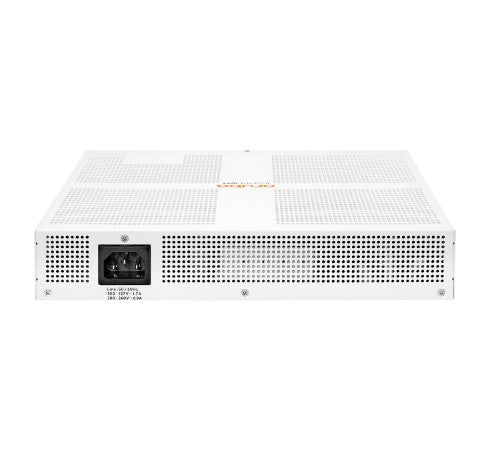

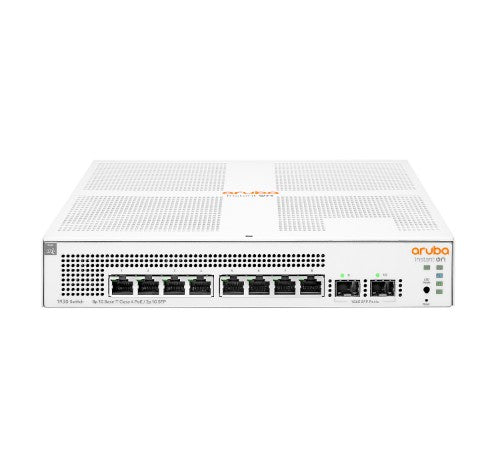

HPE Aruba Networking Aruba Instant On 1930, Managed, L2+, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U

Description

HPE Aruba Networking Aruba Instant On 1930. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Specifications

Ports & interfaces
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity	2
Network
IGMP snooping	Yes
Auto-sensing	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Full duplex	Yes
VLAN support	Yes
Spanning tree protocol	Yes
Rate limiting	Yes
Port mirroring	Yes
Number of VLANs	256
Link aggregation	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
10G support	No
Virtual LAN features
VLAN support	Yes
Number of VLANs	256
Data transmission
Number of VLANs	256
Throughput	14.8 Mpps
Latency (10-100 Mbps)	5.2 µs
Latency (1 Gbps)	3 µs
Packet buffer memory	1.5 MB
MAC address table	8000 entries
Switching capacity	20 Gbit/s
Jumbo frames support	Yes
Performance
Packet buffer memory	1.5 MB
Stackable	No
Processor frequency	800 MHz
Memory type	SDRAM
Internal memory	512 MB
Flash memory	256 MB
Processor model	ARM Cortex-A9
Technical details
Form factor	1U
Product colour	White
Stackable	No
Processor frequency	800 MHz
Rack mounting	Yes
Management features
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Switch layer	L2+
Security
SSH/SSL support	Yes
IGMP snooping	Yes
Memory
Packet buffer memory	1.5 MB
Memory type	SDRAM
Internal memory	512 MB
Flash memory	256 MB
Design
Form factor	1U
Product colour	White
Stackable	No
Rack mounting	Yes
Power
Power consumption (max)	150.2 W
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget	124 W
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	15 - 95%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	15 - 95%
Weight & dimensions
Width	10" (254 mm)
Depth	10" (254 mm)
Height	1.73" (43.9 mm)
Weight	2.56 lbs (1.16 kg)
