12Gbps, 8.9Mpps, 4x 1G RJ-45 PoE+, 2x 1G SFP, IP30, 150x145x26.7 mm
Wall-Mounted Front Access Switch
The wall mountable flat switch provides front access to ports and power interfaces for easier installation. It's flat and compact size make it ideal for cabinet installations where space is limited.
PoE+ Power
A 120W PoE power budget supplies PoE power from the hardened industrial front access switch to up to eight Power over Ethernet devices.
Hardened Industrial Design
Equipped with an IP30 rated metal enclosure, this front access switch is designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments.
Network Ports

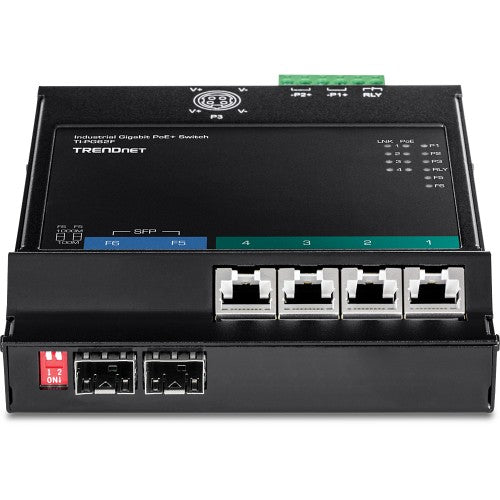

4 x Gigabit PoE+ ports, and 2 x Gigabit SFP Slots
PoE Power
Supplies up to 30W of PoE+ power per port with a 120W power budget
Hardware Design
Wall mountable hardware design provides front access to ports and power interfaces for easier installation
Compact
The flat and compact size is ideal for cabinet installations where space is limited
Mounting Hardware

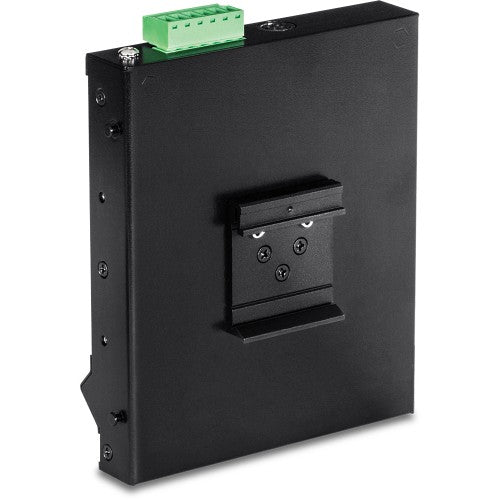

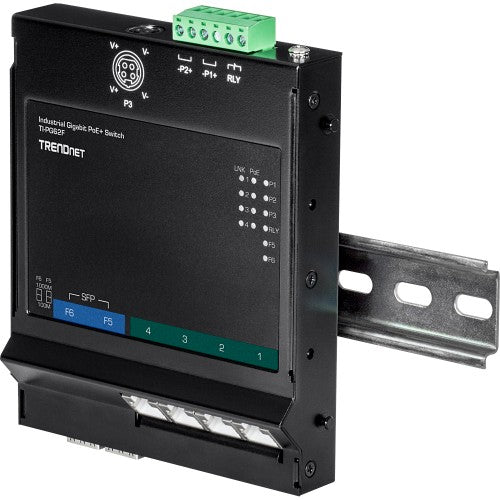

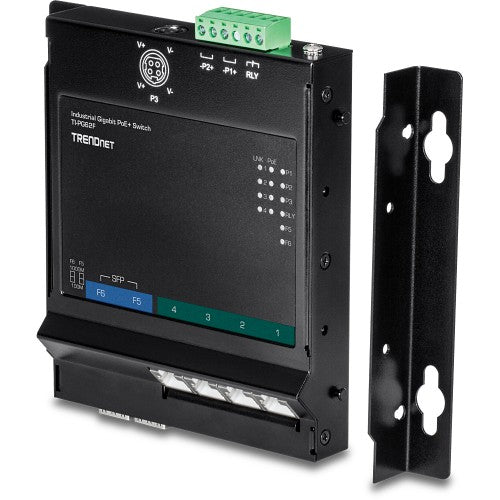

Includes DIN-Rail bracket and magnetic wall mount kit
Switching Capacity
12Gbps switching capacity
Redundant Power
Dual power inputs provide redundant power with overload current protection, and an output alarm relay to indicate input power failure. (Power supply sold separately, models: TI-S12048, TI-S24048, and 48VDC3000)
Alarm Relay
Alarm relay output triggered by power failure of primary or secondary power inputs
Jumbo Frames
Sends larger packets, or jumbo frames (up to 10KB), for increased performance
Wide Temperature Range
Hardened industrial housing offers a wide operating temperature range of -40° – 75° C (-40° – 167° F), allowing for installations in extreme hot and cold environments
Shock and Vibration Resistant
Hardened design rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6) for industrial settings
Electro Magnetic Compliance
Complies with industrial EMS certifications (IEC 61000-4-2) ESD: Contact: 6kV | Air: 8kV, (IEC 61000-4-4) EFT: Power: 2kV | Signal: 2kV, (61000-4-5) Surge: Power: 2kV | Signal: 2kV
LED Indicators
LED indicators convey power and port status
Grounding Point
Grounding point protects equipment from external electrical surges
Trendnet
Trendnet TI-PG62F network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Part number:
TI-PG62F
Sale price
$270.12
Regular price
$279.99
Save
$9.87
4%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- 120W PoE power budget
- 12Gbps switching capacity
- Forwarding rate: 8.9Mpps (64-byte packet size)
- Supports jumbo frames up to 10KB
- Hardened IP30 rated metal housing
- Includes DIN-Rail bracket and magnetic wall mount kit
- Operating temperature range of -40° – 75° C (-40° – 167° F)
- Redundant power inputs with overload current protection
- Alarm relay triggered by power failure
- Power supply sold separately (models: TI-S12048, TI-S24048, and 48VDC3000)
Description
TRENDnet's Industrial Gigabit PoE+ Wall-Mounted Front Access Switch Series is well suited for IP surveillance, IoT, and automation networks for homes and businesses. These hardened industrial gigabit flat switches provide front access to ports and power interfaces for easier installation. The flat and compact size make them ideal for cabinet installations where space is limited. Each hardened industrial front access switch features gigabit PoE+ ports for connecting devices, such as wireless access points, IP cameras, and IoT appliances. These hardened front access switches come equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments.Wall-Mounted Front Access Switch
The wall mountable flat switch provides front access to ports and power interfaces for easier installation. It's flat and compact size make it ideal for cabinet installations where space is limited.
PoE+ Power
A 120W PoE power budget supplies PoE power from the hardened industrial front access switch to up to eight Power over Ethernet devices.
Hardened Industrial Design
Equipped with an IP30 rated metal enclosure, this front access switch is designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments.
Network Ports
4 x Gigabit PoE+ ports, and 2 x Gigabit SFP Slots
PoE Power
Supplies up to 30W of PoE+ power per port with a 120W power budget
Hardware Design
Wall mountable hardware design provides front access to ports and power interfaces for easier installation
Compact
The flat and compact size is ideal for cabinet installations where space is limited
Mounting Hardware
Includes DIN-Rail bracket and magnetic wall mount kit
Switching Capacity
12Gbps switching capacity
Redundant Power
Dual power inputs provide redundant power with overload current protection, and an output alarm relay to indicate input power failure. (Power supply sold separately, models: TI-S12048, TI-S24048, and 48VDC3000)
Alarm Relay
Alarm relay output triggered by power failure of primary or secondary power inputs
Jumbo Frames
Sends larger packets, or jumbo frames (up to 10KB), for increased performance
Wide Temperature Range
Hardened industrial housing offers a wide operating temperature range of -40° – 75° C (-40° – 167° F), allowing for installations in extreme hot and cold environments
Shock and Vibration Resistant
Hardened design rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6) for industrial settings
Electro Magnetic Compliance
Complies with industrial EMS certifications (IEC 61000-4-2) ESD: Contact: 6kV | Air: 8kV, (IEC 61000-4-4) EFT: Power: 2kV | Signal: 2kV, (61000-4-5) Surge: Power: 2kV | Signal: 2kV
LED Indicators
LED indicators convey power and port status
Grounding Point
Grounding point protects equipment from external electrical surges
Specifications
| Ports & interfaces | |
|---|---|
| SFP module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| 10G support | No |
| Half duplex | Yes |
| Data transmission | |
| Packet buffer memory | 0.128 MB |
| MAC address table | 1000 entries |
| Switching capacity | 12 Gbit/s |
| Forwarding rate | 8.9 Mpps |
| Design | |
| Wall mountable | Yes |
| International Protection (IP) code | IP30 |
| DIN rail mounting | Yes |
| Product colour | Black |
| LED indicators | Yes |
| Housing material | Metal |
| Rack mounting | No |
| Certification | CE, FCC, UL IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5 |
| Performance | |
| Mean time between failures (MTBF) | 580972 h |
| Packet buffer memory | 0.128 MB |
| Harmonized System (HS) code | 85176990 |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 2 A |
| DC input voltage | 48 - 56 V |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Width | 5.91" (150 mm) |
| Depth | 5.71" (145 mm) |
| Height | 1.05" (26.7 mm) |
| Weight | 20.5 oz (580 g) |
| Technical details | |
| Product colour | Black |
| Mean time between failures (MTBF) | 580972 h |
| Housing material | Metal |
| Rack mounting | No |
| Memory | |
| Packet buffer memory | 0.128 MB |
| Certificates | |
| Certification | CE, FCC, UL IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5 |
| Indication | |
| LED indicators | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
