18-Port Gigabit PoE+ Smart Surveillance Switch
16 x Gigabit PoE+ ports
2 x Shared Gigabit ports (RJ-45 or SFP)
220W PoE power budget
Easy-to-use web-based management interface
Supports IPv6, LACP, VLAN, QoS, and IGMP Snooping
Extend PoE+ signal up to 656 ft./200m at 10Mbps
Front panel 4-digit LED display provides PoE power statistics
Surveillance mode GUI for simplified configuration and network monitoring
Device discovery for ONVIF compliant IP cameras and NVRs
Upload building floorplans to create an E-map of surveillance devices
Trendnet

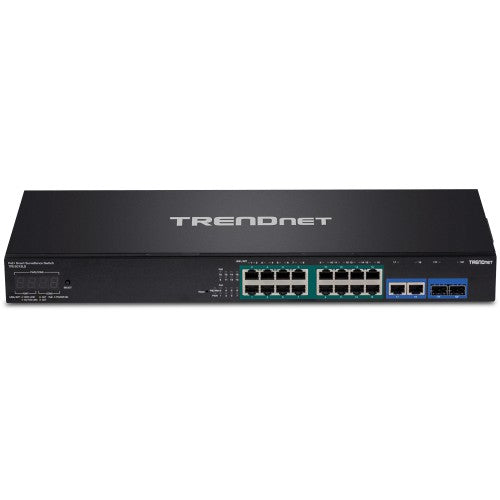

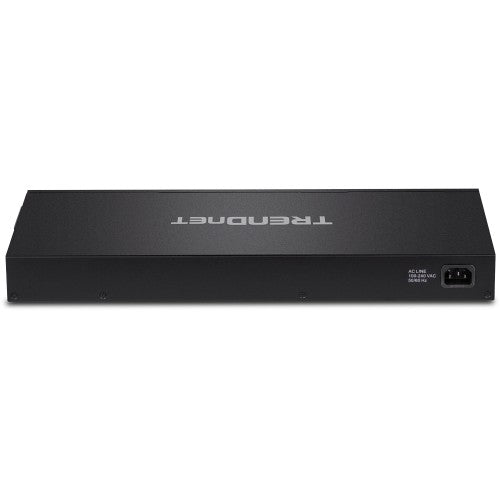

Trendnet TPE-3018LS network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Part number:
tpe-3018ls
Sale price
$315.13
Regular price
$384.63
Save
$69.50
18%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- 16 x Gigabit PoE+ ports
- 2 x Shared Gigabit ports (RJ-45 or SFP)
- 220W PoE power budget
- Easy-to-use web-based management interface
- Supports IPv6, LACP, VLAN, QoS, and IGMP Snooping
- Extend PoE+ signal up to 656 ft./200m at 10Mbps
- Front panel 4-digit LED display provides PoE power statistics
- Surveillance mode GUI for simplified configuration and network monitoring
- Device discovery for ONVIF compliant IP cameras and NVRs
- Upload building floorplans to create an E-map of surveillance devices
- Change IP camera IP address settings
- Upgrade IP camera firmware
- Change IP camera administrator user name and password
- Bandwidth control per port
- 802.1Q, MAC, Surveillance, and Voice VLAN support
- IEEE 802.1p QoS with queue scheduling support
- Smart Fan
- 36Gbps switching capacity
- NDAA / TAA compliant (U.S. and Canada only)
Description
18-Port Gigabit PoE+ Smart Surveillance Switch16 x Gigabit PoE+ ports
2 x Shared Gigabit ports (RJ-45 or SFP)
220W PoE power budget
Easy-to-use web-based management interface
Supports IPv6, LACP, VLAN, QoS, and IGMP Snooping
Extend PoE+ signal up to 656 ft./200m at 10Mbps
Front panel 4-digit LED display provides PoE power statistics
Surveillance mode GUI for simplified configuration and network monitoring
Device discovery for ONVIF compliant IP cameras and NVRs
Upload building floorplans to create an E-map of surveillance devices
Specifications
| Management features | |
|---|---|
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| MIB support | RMON MIB RFC 1271, IPV4 MIB RFC 1213, SNMP MIB RFC 3415 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 18 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP |
| Network | |
| MAC address auto-learning supported | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| Head-of-line (HOL) blocking | Yes |
| VLAN support | Yes |
| Broadcast storm control | Yes |
| 10G support | No |
| Virtual LAN features | MAC address-based VLAN, Tagged VLAN, Voice VLAN |
| IGMP snooping | Yes |
| IGMP entries | 1000 |
| Data transmission | |
| Jumbo frames | 10000 |
| MAC address table | 8000 entries |
| Switching capacity | 36 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Forwarding rate | 26.7 Mpps |
| Security | |
| IP-MAC-Port binding | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| IGMP entries | 1000 |
| DHCP features | DHCP snooping |
| Design | |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Rack mounting | Yes |
| Number of fans | 1 fan(s) |
| Certification | CE, FCC, ETL |
| Performance | |
| Noise level | 60.1 dB |
| Mean time between failures (MTBF) | 331516 h |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power consumption (max) | 14 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Total Power over Ethernet (PoE) budget | 220 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+ |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Virtual LAN features | |
| VLAN support | Yes |
| Virtual LAN features | MAC address-based VLAN, Tagged VLAN, Voice VLAN |
| Weight & dimensions | |
| Width | 17.3" (440 mm) |
| Depth | 7.68" (195 mm) |
| Height | 1.75" (44.4 mm) |
| Weight | 6.46 lbs (2.93 kg) |
| Packaging content | |
| Rack mount kit | Yes |
| Quick start guide | Yes |
| Cables included | AC |
| Optical fiber | |
| Fiber optic connector | SFP |
| Technical details | |
| Form factor | 1U |
| Product colour | Black |
| Noise level | 60.1 dB |
| Mean time between failures (MTBF) | 331516 h |
| Rack mounting | Yes |
| Certificates | |
| Certification | CE, FCC, ETL |
| Indication | |
| LED indicators | Yes |
| Packaging data | |
| Rack mount kit | Yes |
| Quick start guide | Yes |
| Cables included | AC |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
