Dual-Port 40GbE QSFP+ PCIe 3.1 Server I/O Adapter
- Ultra-low latency (sub 1usec)
- High packet rate (60Mpps for 2x40G)
- Internal switch for single core/4 port operation (4x10GbE from a single 40GbE QSFP+ port)
- 16 lanes PCIe Gen 3.1 – full 2x40Gb/s bidirectional performance
- Revolutionary tamper resistant adapter security
- VXLAN, NVGRE and GENEVE checksum offload
Xilinx

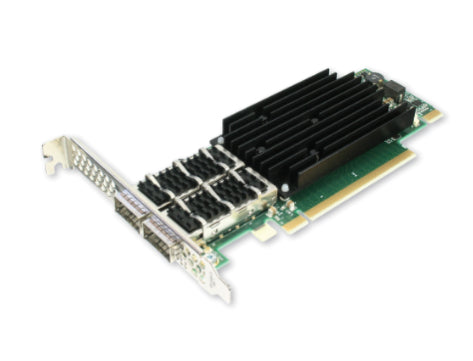

Solarflare Communications Flareon Ultra Internal Fiber 40000 Mbit/s
Part number:
SFN8542-PLUS
Sale price
$1,849.86
Regular price
$2,398.00
Save
$548.14
23%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
SFN8542 adapters accelerate, monitor, and secure your network by providing:- Ultra-low latency (sub 1usec)
- High packet rate (60Mpps for 2x40G)
- Internal switch for single core/4 port operation (4x10GbE from a single 40GbE QSFP+ port)
- 16 lanes PCIe Gen 3.1 – full 2x40Gb/s bidirectional performance
- Revolutionary tamper resistant adapter security
- VXLAN, NVGRE and GENEVE checksum offload
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Fiber ports quantity | 2 |
| Fiber optic connector | QSFP+ |
| Interface | Fiber |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Bandwidth | |
| Data transfer rate | 8 GT/s |
| Maximum data transfer rate | 40000 Mbit/s |
| Network | |
| Data transfer rate | 8 GT/s |
| Ethernet interface type | 40 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3x, IEEE 802.3z |
| Fiber ethernet cabling technology | 40GBASE-LR4, 40GBASE-SR4, 10GBASE-CR, 10GBASE-LR, 10GBASE-SR, 1000BASE-X |
| Ethernet LAN data rates | 1000,10000,40000 Mbit/s |
| Maximum data transfer rate | 40000 Mbit/s |
| Management protocols | SNMP, ACPI v3.0 |
| Flow control support | Yes |
| Technical details | |
| Product colour | Green, Gray |
| Receive Side Scaling (RSS) | Yes |
| Number of VLANs | 4096 |
| Quantity per pack | 1 pc(s) |
| Compliance certificates | RoHS |
| Design | |
| Product colour | Green, Gray |
| Internal | Yes |
| Component for | Server |
| Software | |
| Linux operating systems supported | Yes |
| Power | |
| Power consumption (typical) | 10 W |
| System requirements | |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2 |
| Linux operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
| Width | 2.72" (69 mm) |
| Depth | 6.59" (167.5 mm) |
| Protocols | |
| Management protocols | SNMP, ACPI v3.0 |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Performance | |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2 |
| Linux operating systems supported | Yes |
| Receive Side Scaling (RSS) | Yes |
| Number of VLANs | 4096 |
| Other features | |
| Data transfer rate | 8 GT/s |
| Receive Side Scaling (RSS) | Yes |
| Number of VLANs | 4096 |
| Management protocols | SNMP, ACPI v3.0 |
| Flow control support | Yes |
| Quantity per pack | 1 pc(s) |
