IEEE 802.11a/b/g/n/ac, 2.4/5GHz, MU-MIMO

Description

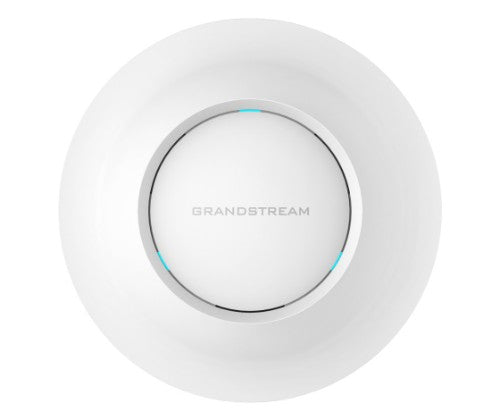

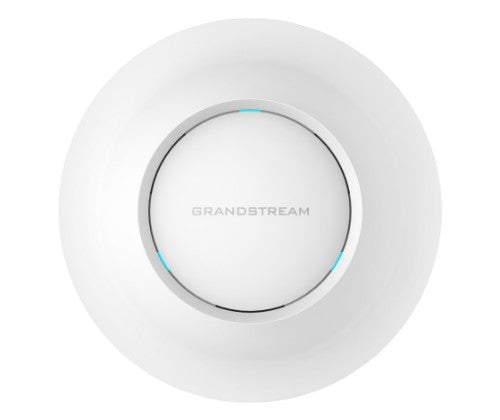

The GWN7605 is an affordable 802.11ac Wave-2 Wi-Fi access point ideal for small to medium wireless network deployments with medium user density. It offers dual-band 2x2:2 MU-MIMO with beam-forming technology and a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range. To ensure easy installation and management, the GWN7605 uses a controller-less distributed network management design in which the controller is embedded within the product’s web user interf ace. The GWN7605 is also supported by GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform. It is the ideal Wi-Fi AP for voiceover-Wi-Fi deployments and offers a seamless connection with Gra ndstream’s Wi-Fi-capable IP phones. With support for advanced QoS, low-latency real-time applications, mesh netw orks, captive portals, 100+ concurrent clients per AP and dual Gigabit network ports with PoE/PoE+, the GWN7605 is a scalable Wi-Fi solution for deployments such as retail locations, restaurants, small offices and more.

Specifications

Data transmission
Ethernet LAN data rates	10,100,1000 Mbit/s
Performance
2.4 GHz	Yes
5 GHz	Yes
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at
Ethernet LAN data rates	10,100,1000 Mbit/s
Certification	FCC, CE, RCM, IC
MIMO type	Multi User MIMO
MIMO	Yes
Network
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at
Management features
Quality of Service (QoS) support	Yes
Certificates
Certification	FCC, CE, RCM, IC
Features
2.4 GHz	Yes
5 GHz	Yes
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at
Ethernet LAN data rates	10,100,1000 Mbit/s
MIMO type	Multi User MIMO
MIMO	Yes
Security
Security algorithms	AES, TKIP, WEP, WPA, WPA2-PSK
Protocols
Supported protocols	IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
Ports & interfaces
Ethernet LAN (RJ-45) ports	2
Power
Power over Ethernet (PoE)	Yes
Design
Placement	Wall
Product colour	White
Certification	FCC, CE, RCM, IC
Antenna
Antenna type	Internal
Weight & dimensions
Width	7.1" (180.4 mm)
Depth	1.61" (40.8 mm)
Weight	13.7 oz (388.2 g)
Height	7.1" (180.4 mm)
Package volume	79 cm³
Package depth	9" (228.5 mm)
Package height	8.66" (220 mm)
Package weight	25.4 oz (719.3 g)
Packaging data
Package volume	79 cm³
Package depth	9" (228.5 mm)
Package height	8.66" (220 mm)
Package weight	25.4 oz (719.3 g)
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 60 °C
