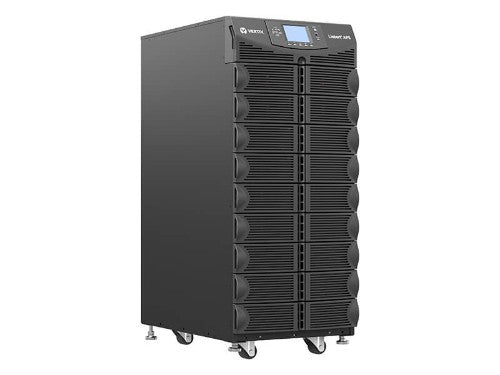

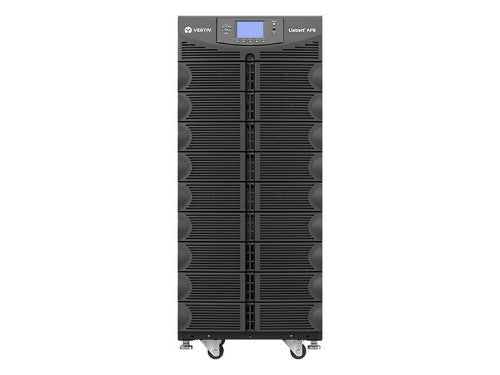

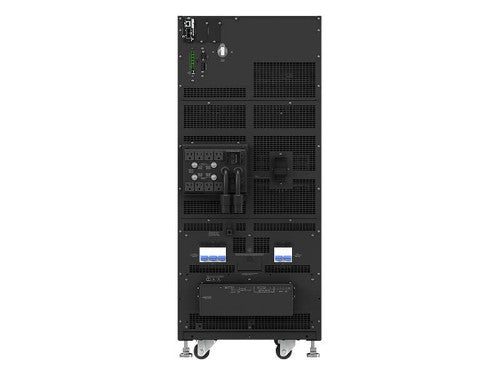

Vertiv Liebert APS AS3, 15 kVA, 13500 W, 200 V, 240 V, 40/70 Hz, 100 V

Description

Vertiv Liebert APS AS3. Output power capacity: 15 kVA, Output power: 13500 W, Input operation voltage (min): 200 V. Battery voltage: 1.67 V, Typical backup time at full load: 300 min. Form factor: Rackmount/Tower, Product color: Black, Cooling type: Active. Width: 17.3" (440 mm), Depth: 31.5" (800 mm), Height: 41.7" (1060 mm)

Specifications

Power
Output frequency	50/60 Hz
Output voltage regulation	±3%
Input power factor	0.99
Output power	13500 W
Input operation voltage (min)	200 V
Input operation voltage (max)	240 V
Output operation voltage (min)	100 V
Output operation voltage (max)	240 V
Efficiency	89.9%
Output power capacity	15 kVA
Input frequency	40/70 Hz
Performance
Power protection features	Overload
Features
Output frequency	50/60 Hz
Output voltage regulation	±3%
Input power factor	0.99
Output power	13500 W
Input operation voltage (min)	200 V
Input operation voltage (max)	240 V
Output operation voltage (min)	100 V
Output operation voltage (max)	240 V
Efficiency	89.9%
Power protection features	Overload
Output power capacity	15 kVA
Input frequency	40/70 Hz
Heat dissipation	5528 BTU/h
Battery
Battery voltage	1.67 V
Typical backup time at full load	300 min
Design
Form factor	Rackmount/Tower
Product colour	Black
Safety	IEC/EN/AS 62040-1:2008, UL 1778 4th Ed & CSA 22.2 No. 107.1
Cooling type	Active
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Technical details
Output frequency	50/60 Hz
Compliance certificates	REACH, RoHS, WEEE
Cooling
Cooling type	Active
Weight & dimensions
Weight	795 lbs (360.6 kg)
Width	17.3" (440 mm)
Package weight	834.9 lbs (378.7 kg)
Height	41.7" (1060 mm)
Depth	31.5" (800 mm)
Packaging data
Package weight	834.9 lbs (378.7 kg)
Certificates
Safety	IEC/EN/AS 62040-1:2008, UL 1778 4th Ed & CSA 22.2 No. 107.1
