Embedded Industrial 5 Port Gigabit Ethernet Switch, Auto MDIX, 3.6W Max: 720mA@+5VDC/120mA@+30VDC
Brainboxes

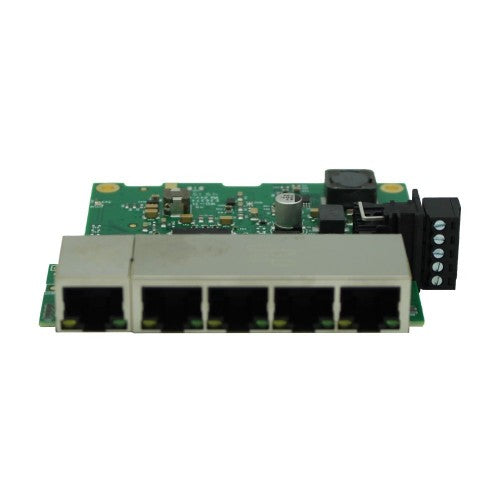

Brainboxes SW-115 network switch Unmanaged Gigabit Ethernet (10/100/1000) Assorted colors
Part number:
SW-115
Sale price
$122.84
Regular price
$134.26
Save
$11.42
9%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- 5 Port Gigabit Ethernet Switch
- Ready for embedded applications
- Redundant dual power inputs: +5V to +30V DC
- Industrial operating temp range -40°C to +80°C / -40°F to +176°F
Description
Industrial 5 Port Gigabit unmanaged Ethernet switch. Galvanically Isolated Ethernet Ports capable of 10/100/1000 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for embedded applications.Specifications
| Technical details | |
|---|---|
| Product colour | Assorted colors |
| Power over Ethernet (PoE) | |
| Power protection features | Reverse polarity |
| Power over Ethernet (PoE) | No |
| Management features | |
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Network | |
| Auto-sensing | Yes |
| Auto MDI/MDI-X | Yes |
| Certificates | |
| Certification | Microsoft Certified Gold Partner, WEEE, RoHS, AEO (C-TPAT), CE |
| Design | |
| Product colour | Assorted colors |
| LED indicators | Activity, Link, Speed |
| Certification | Microsoft Certified Gold Partner, WEEE, RoHS, AEO (C-TPAT), CE |
| Indication | |
| LED indicators | Activity, Link, Speed |
| Power | |
| Power consumption (max) | 3.6 W |
| Power protection features | Reverse polarity |
| DC input voltage | 5 - 30 V |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 3.74" (95 mm) |
| Depth | 3.54" (90 mm) |
| Height | 0.787" (20 mm) |
| Weight | 2.68 oz (76 g) |
| Packaging data | |
| Quick start guide | Yes |
| Package width | 6.3" (160 mm) |
| Package depth | 5.31" (135 mm) |
| Package height | 1.93" (49 mm) |
| Package weight | 3.1 oz (88 g) |
| Packaging content | |
| Quick start guide | Yes |
