5xRJ-45, Gigabit Ethernet, 5-30V, 3.6W, 29x95x99mm, 274g
Compact industrial 5 Port Gigabit Ethernet unmanaged switch. Galvanically Isolated Ethernet Ports capable of 10/100/1000 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Only 29mm wide and 95mm deep. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.
Brainboxes

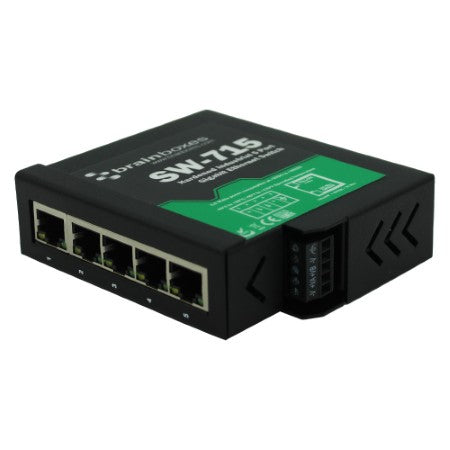

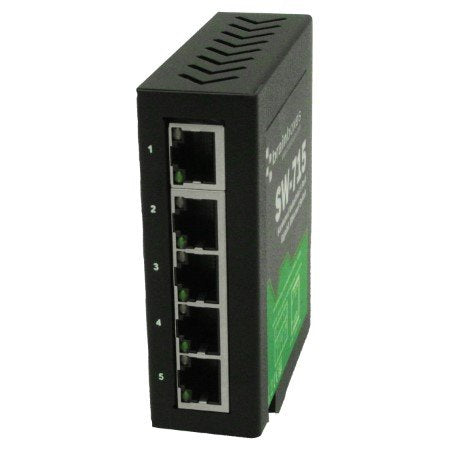

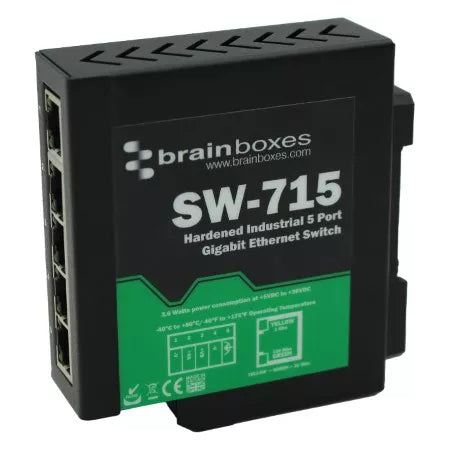

Brainboxes SW-715 network switch Unmanaged Gigabit Ethernet (10/100/1000) Black, Green
Part number:
SW-715
Sale price
$145.16
Regular price
$169.66
Save
$24.50
14%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- 5 Port Hardened Gigabit Ethernet Switch

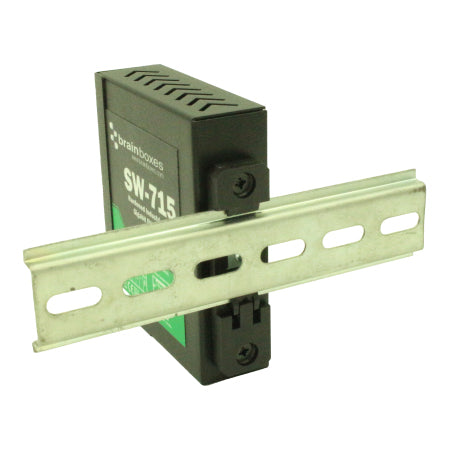

- Integrated DIN Rail Mount with grounding
- Wide voltage input range: +5V to +30V DC - can be powered by a variety of sources
- Redundant dual power inputs - reduces risk of power outage
- Compact Hardened Enclosure
- Industrial operating temp range -40°C to +80°C / -40°F to +176°F
Description
DescriptionCompact industrial 5 Port Gigabit Ethernet unmanaged switch. Galvanically Isolated Ethernet Ports capable of 10/100/1000 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Only 29mm wide and 95mm deep. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.
Specifications
| Technical details | |
|---|---|
| Product colour | Black, Green |
| Housing material | Metal |
| Management features | |
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Network | |
| Auto-sensing | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Auto MDI/MDI-X | Yes |
| Certificates | |
| Certification | Microsoft Certified Gold Partner, WEEE, RoHS, AEO (C-TPAT), CE, METL, UL 60950-1 |
| Design | |
| International Protection (IP) code | IP20 |
| DIN rail mounting | Yes |
| Product colour | Black, Green |
| LED indicators | Yes |
| Housing material | Metal |
| Certification | Microsoft Certified Gold Partner, WEEE, RoHS, AEO (C-TPAT), CE, METL, UL 60950-1 |
| Indication | |
| LED indicators | Yes |
| Power | |
| Power consumption (max) | 3.6 W |
| Redundant power supply (RPS) support | Yes |
| DC input voltage | 5 - 30 V |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 80 °C |
| Operating temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 1.14" (29 mm) |
| Depth | 3.74" (95 mm) |
| Height | 3.9" (99 mm) |
| Weight | 9.67 oz (274 g) |
| Packaging data | |
| Quick start guide | Yes |
| Package width | 1.93" (49 mm) |
| Package depth | 5.31" (135 mm) |
| Package height | 6.3" (160 mm) |
| Package weight | 12.5 oz (353 g) |
| Other features | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Packaging content | |
| Quick start guide | Yes |
