5 Port Gigabit Ethernet Switch DIN Rail Mountable, Galvanically Isolated Ethernet Ports, Auto MDIX, 3.6W Max: 720mA@+5VDC/120mA@+30VDC
Brainboxes

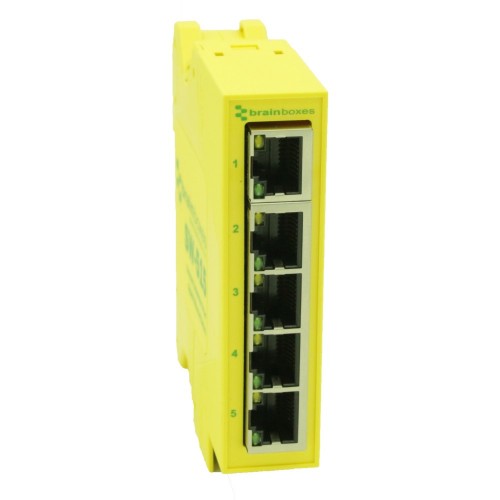

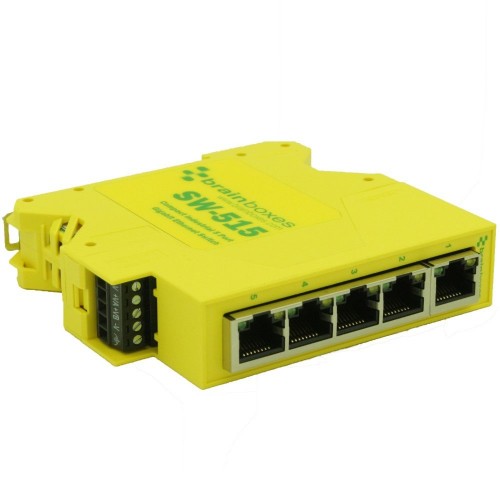

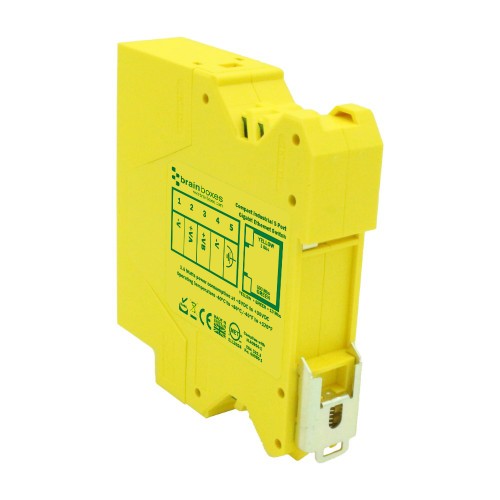

Brainboxes SW-515 network switch Unmanaged Gigabit Ethernet (10/100/1000) Yellow
Part number:
SW-515
Sale price
$131.09
Regular price
$151.69
Save
$20.60
14%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- 5 Gigabit Ethernet ports
- Wide voltage input range: +5V to +30V DC - can be powered by a variety of sources
- Industrial operating temperature range: -40ºC to +80ºC/-40ºF to +176ºF - works in extreme conditions
- Redundant dual power inputs - reduces risk of power outage
- Small Footprint Case, only 23mm wide, 94mm deep
Description
Compact industrial 5 port Gigabit Ethernet unmanaged switch. Galvanically Isolated Ethernet Ports. Automatic detection of data transmission speed: 10/100/1000 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Only 23mm wide and 94mm deep. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.Specifications
| Technical details | |
|---|---|
| Product colour | Yellow |
| Housing material | Polyamide |
| Rack mounting | Yes |
| Power over Ethernet (PoE) | |
| Power protection features | Reverse polarity |
| Power over Ethernet (PoE) | No |
| Management features | |
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Network | |
| Auto-sensing | Yes |
| Auto MDI/MDI-X | Yes |
| Certificates | |
| Certification | Microsoft Certified Gold Partner, WEEE, RoHS, AEO (C-TPAT), CE, METL Complies with UL 60950-1 |
| Design | |
| International Protection (IP) code | IP20 |

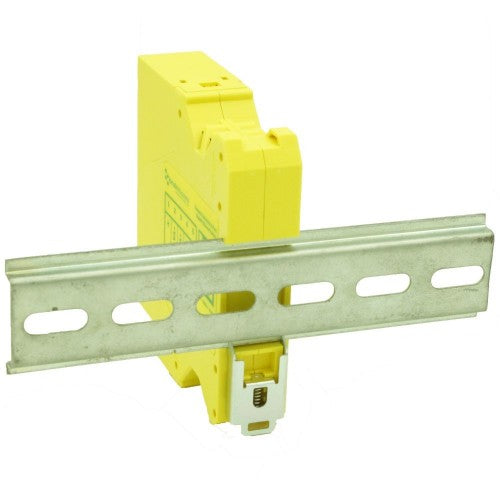

| DIN rail mounting | Yes |
| Product colour | Yellow |
| LED indicators | Activity, Link, Speed |
| Housing material | Polyamide |
| Certification | Microsoft Certified Gold Partner, WEEE, RoHS, AEO (C-TPAT), CE, METL Complies with UL 60950-1 |
| Rack mounting | Yes |
| Indication | |
| LED indicators | Activity, Link, Speed |
| Power | |
| Power consumption (max) | 3.6 W |
| Power protection features | Reverse polarity |
| DC input voltage | 5 - 30 V |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 3.9" (99 mm) |
| Depth | 3.7" (94 mm) |
| Height | 0.906" (23 mm) |
| Weight | 3.95 oz (112 g) |
| Packaging data | |
| Quick start guide | Yes |
| Package width | 6.3" (160 mm) |
| Package depth | 5.31" (135 mm) |
| Package height | 1.93" (49 mm) |
| Package weight | 7.02 oz (199 g) |
| Packaging content | |
| Quick start guide | Yes |
